Ford GT 2019 Fuse Box Info
Passenger compartment fuse box location:
Front compartment fuse box location:

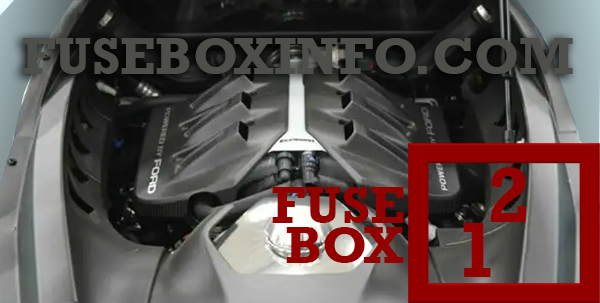

Rear compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | - | Not used |
| 2 | 7.5A | Not used (spare) |
| 3 | 20A | Driver unlock relay, Double lock relay |
| 4 | 5A | Not used (spare) |
| 5 | 20A | Not used (spare) |
| 6 | 10A | Not used (spare) |
| 7 | 10A | Not used (spare) |
| 8 | 10A | Not used (spare) |
| 9 | 10A | Brake on/off (BOO) switch |
| 10 | 5A | Push button start switch |
| 11 | 5A | Right and left exterior door locks and handles |
| 12 | 7.5A | RF transceiver module (RTM) |
| 13 | 7.5A | Steering column control module logic, Smart datalink connector logic, Instrument cluster |
| 14 | 10A | Extended power mode (EPM) module |
| 15 | 10A | Smart datalink connector (SDLC) power |
| 16 | 15A | Decklid release relay |
| 17 | 5A | Combined sensor module |
| 18 | 5A | Telematics control unit (TCU)- Modem |
| 19 | 7.5A | Not used (spare) |
| 20 | 7.5A | Front damper controllers |
| 21 | 5A | Shift indicator module (HUD), Interior temperature sensor |
| 22 | 5A | Extended power mode module |
| 23 | 10A | Right window switch illumination, Right door lock switch illumination, Left door lock switch illumination, Power mirror/window switch (motor), Right smart window motor (logic), Left smart window motor (logic) |
| 24 | 20A | Central lock relay, Central unlock relay |
| 25 | 30A | Left smart window motor |
| 26 | 30A | Right smart window motor |
| 27 | 30A | Not used (spare) |
| 28 | 20A | Electronic steering column lock (relay supply) |
| 29 | 30A | Not used (spare) |
| 30 | 30A | Not used (spare) |
| 31 | 15A | Not used (spare) |
| 32 | 10A | SYNC, Audio on/off switch, Gear shift module (GSM), Heating ventilation and air conditioning (HVAC) Electronic control unit (ECU) power |
| 33 | 20A | Audio control module (ACM) |
| 34 | 30A | Run-start relay (R12) |
| 35 | 5A | Steering angle sensor (SASM) |
| 36 | 15A | Auxiliary power point |
| 37 | 20A | Battery junction box (BJB) F60, F62, F64, F66, F65 |
| 38 | - | Not used |
Front compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | - | Vehicle dynamics module relay |
| 2 | - | Radiator fan 1 relay |
| 3 | - | HVAC blower relay |
| 4 | - | Wipers relay |
| 5 | - | Radiator fan 2 relay |
| 6 | - | Horn relay |
| 7 | 50A | Body control module |
| 8 | - | Shunt |
| 9 | 40A | Vacuum pump |
| 10 | 25A | Wiper |
| 11 | 40A | Radiator fan 2 |
| 12 | 50A | Body control module |
| 13 | 60A | Body control module |
| 14 | 40A | Radiator fan 1 |
| 15 | 40A | HVAC Blower |
| 16 | 40A | Antilock brake system |
| 17 | 40A | Antilock brake system |
| 18 | 30A | Body control module |
| 19 | - | Vacuum pump relay |
| 20 | 5A | Vehicle dynamics module |
| 21 | 20A | Left headlamp |
| 22 | 5A | Antilock brake system |
| 23 | 20A | Horn |
| 24 | 20A | Electronic door system |
| 25 | 20A | Right headlamp |
Rear compartment fuse box 1:
| Fuse/Relay N° | Rating | Functions |
| 1 | 15A | Vehicle power 3 |
| 2 | 5A | Mass airflow |
| 3 | 10A | Engine control module |
| 4 | 5A | Transmission control module |
| 5 | 20A | Vehicle power 1 |
| 6 | 5A | Keep alive power |
| 7 | - | Not used |
| 8 | 5A | Rear video camera |
| 9 | - | Not used |
| 10 | 10A | Alternator sense |
| 11 | 10A | Air conditioner |
| 12 | 10A | Damper |
| 13 | 15A | Vehicle power 4 |
| 14 | - | Not used |
| 15 | 5A | Battery backup sounder |
| 16 | 5A | Engine control module, Run/start |
| 17 | 20A | Vehicle power 2 |
| 18 | 15A | Injector |
| 19 | 30A | Fuel pump 1 |
| 20 | 30A | Fuel pump 2 |
| 21 | 30A | Transmission control module fan |
| 22 | 30A | Starter |
| 23 | 30A | Charge air cooler fan |
| 24 | - | Shunt |
| 25 | - | Charge air cooler fan relay |
| 26 | - | Not used |
| 27 | - | Fuel pump 1 relay |
| 28 | - | AC clutch relay |
| 29 | - | Starter relay |
| 30 | - | Fuel injection relay |
| 31 | - | Fuel pump 2 relay |
| 32 | - | Engine control module relay |
Rear compartment fuse box 2:
| Fuse/Relay N° | Rating | Functions |
| 1 | - | Transmission gear fluid cooler fan relay |
| 2 | - | Engine oil cooler fan relay |
| 3 | - | Transmission clutch fluid cooler fan relay |
| 4 | - | Not used |
| 5 | - | Not used |
| 6 | - | Not used |
| 7 | 20A | Engine oil cooler fan |
| 8 | 30A | Transmission clutch fluid cooler fan |
| 9 | 20A | Transmission gear fluid cooler fan |
| 10 | 20A | Trunk power point |
