Dodge Stratus 2006 Fuse Box

Dodge Stratus 2006 Fuse Box Info

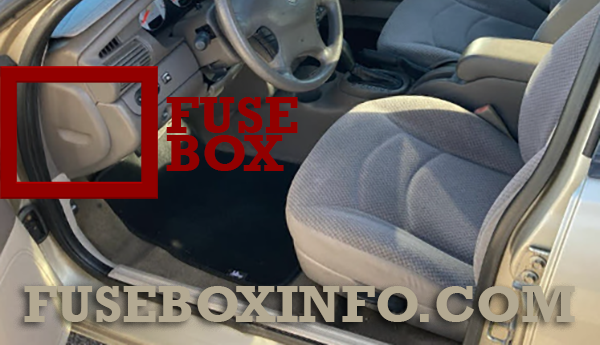

Passenger compartment fuse box location:

The instrument panel fuse box is located behind the end cover at the left side of the instrument panel.

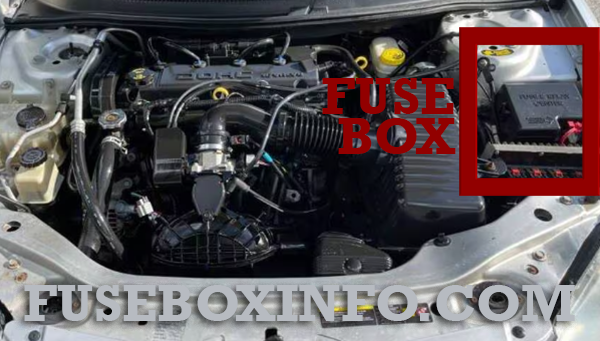

Engine compartment fuse box location:







Fuse Box Diagram | Layout



Passenger compartment fuse box:

Fuse/Relay N° Rating Functions
1 30A Blower Motor
2 10A Right High Beam Headlight, High Beam Indicator
3 10A Left High Beam Headlight
4 15A Power Door Lock Switch Illumination, Transmission Range Switch, Daytime Running Light Module (Canada), Power Windows, Anti-lock Brake System Module
5 10A Power Door Lock and Door Lock Arm/Disarm Switches, Vanity, Reading, Map, Rear Seating, Ignition, and Trunk Lights, Illuminated Entry, Radio, Power Antenna, Data Link Connector, Body Control Module, Power Amplifier
6 10A Heated Rear Window Indicator
7 20A Instrument cluster illumination, Park and tail Lights
8 20A Power Receptacle, Horns, Ignition, Fuel, Start
9 15A Power Door Lock Motors (Body Control Module)
10 20A Daytime Running Light Module (Canada)
11 10A Instrument Cluster, Transmission Control, Park/Neutral Switch, Body Control Module
12 10A Left Low beam Headlight
13 20A Right Low Beam Headlight, Fog Light Switch
14 10A Radio
15 10A Turn Signal and Hazard Flashers, Wiper Switch, Seat Belt Control Module, Wiper Relays, Rear Window Defroster Relay
16 10A Airbag Control Module
17 10A Airbag Control Module
18 20A Power Seat Switch, Remote Trunk Release
19 30A Power Windows




Engine compartment fuse box:
