Dodge Neon 2005 Fuse Box Info

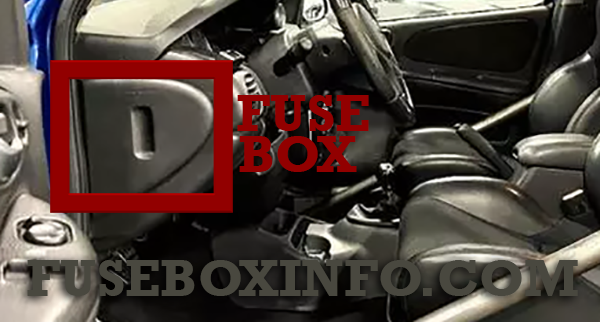

Passenger compartment fuse box location:
The fuse box is located behind the end cover at the left side of the instrument panel.

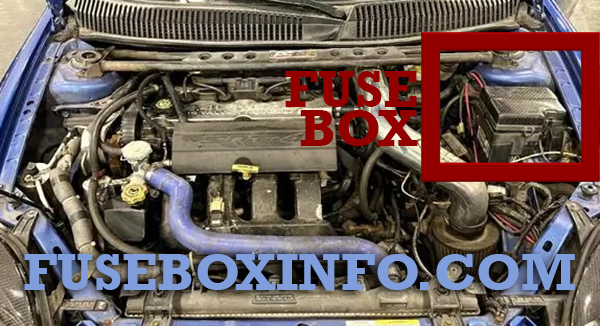

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 10A | Power Mirror/Multifunction |
| 2 | 20A | Wiper Switch/Motor |
| 3 | 20A | Radio/Power Sunroof |
| 4 | 15A | Interior Lighting |
| 5 | 10A | Airbag Run Only |
| 6 | 20A | HVAC Blower |
| 7 | 10A | Backup Switch/EBL/Temp/Comp |
| 8 | 15A | High Headlamp |
| 9 | 10A | Airbag Run-Start |
| 10 | 15A | ABS Engine Run Start |
| 11 | 10A | ARKEM Run Start |
| 12 | 10A | Ignition Off/Run/ Start |
| 13 | 20A | Power Seat Height Adjust |
| 14 | 20A | ARKEM Door Locks |
| 15 | 15A | Exterior Lighting |
| 16 | 25A | Headlamp |
| 17 | 10A | Lt Low Beam Headlamp/Headlamp Level Switch (Bux Only) |
| 18 | 10A | Rt Low Beam Headlamp/Headlamp Level Motor |
| 19 | 10A | Fog lamps |
| 20 | - | Spare |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | - | - |
| 2 | - | - |
| 3 | 40A | Headlamps |
| 4 | 40A | Ignition Run |
| 5 | 30A | ABS Solenoid |
| 6 | 30A | Radiator Fan |
| 7 | - | Spare |
| 8 | 40A | ABS Pump |
| 9 | 30A | Starter |
| 10 | 40A | Electric Back Light (EBL) |
| 11 | - | Spare |
| 12 | - | Spare |
| 13 | 20A | IOD/Int Lighting/Radio |
| 14 | 20A | Power Outlet |
| 15 | 15A | Hazard Flasher |
| 16 | 15A | MTV |
| 17 | 20A | Electronic Automatic Transaxle (EATX) |
| 18 | 10A | Horn |
| 19 | - | Spare |
| 20 | 20A | Fog Lamp (Export Only) |
| 21 | 20A | ASD/Fuel Pump |
| 22 | 10A | A/C Clutch |
| 23 | 15A | Stop Lamps |
