Dodge Dakota 2007 Fuse Box Info

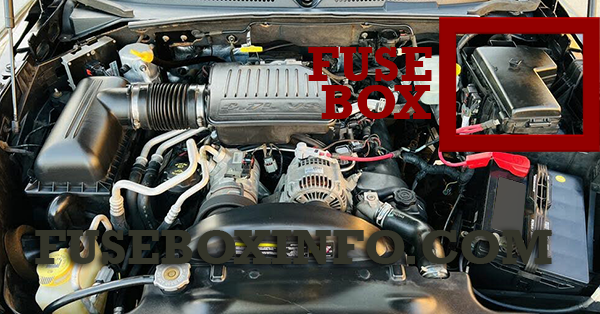

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | - | Spare |
| 2 | 40A | Ignition Accessory(ACC) |
| 3 | 30A | Electric Brake |
| 4 | 50A | Power Seat |
| 5 | 40A | Ignition Run Only |
| 6 | 20A | Ignition Off Draw (IOD)Cabin Compartment Node (CCN), Radio |
| 7 | 10A | Powertrain Control Module (PCM)/Fuel/RAD/AC Coils |
| 8 | 10A | Cabin Compartment Node (CCN)/Mirror/4x4 |
| 9 | 10A | Airbag System #3 |
| 10 | - | Spare |
| 11 | 10A | AC Clutch |
| 12 | 15A | T Tow Lt Stop/Turn |
| 13 | 15A | Trailer Tow Rt Stop/Turn |
| 14 | 20A | Ignition Off Draw (IOD) #2 |
| 15 | 25A | Trans/Powertrain Control Module (PCM) |
| 16 | 20A | Horn |
| 17 | 20A | ABS Feed (Valves) |
| 18 | 20A | Fuel Pump |
| 19 | 15A | Center High Mounted Stop Lamp (CHMSL) |
| 20 | 20A | Cabin Compartment Node (CCN) Door Locks/Brake Transmission Shift Interlock (BTSI) |
| 21 | 25A | Audio Amp |
| 22 | 20A | Power Outlet (Switchable) |
| 23 | 20A | Fog Lamps |
| 24 | 20A | Powertrain Control Module (PCM) B+ |
| 25 | 15A | Cabin Compartment Node (CCN) Illumination |
| 26 | - | Spare |
| 27 | 10A | Power Mirror |
| 28 | 20A | Power Outlet |
| 29 | 20A | Front Control Module (FCM) 4 (Wipers) |
| 30 | - | Spare |
| 31 | - | Spare |
| 32 | 30A | Front Control Module (FCM) 1 (Ext. Lights # 1) |
| 33 | 30A | Auto Shut Down (ASD) |
| 34 | 30A | Front Control Module (FCM) 2 (Ext. Light # 2) |
| 35 | 40A | HVAC Blower Motor |
| 36 | 10A | Ignition UNLK/RN/ST |
| 37 | 10A | Crank |
| 38 | 20A | Run/Start |
| 39 | 30A | Starter Solenoid |
| 40 | - | Spare |
| 41 | 30A | Wiper Motor |
| 42 | 25A | Front Control Module (FCM) 5 (T-Case) |
| 43 | 10A | Lt Park Lamps |
| 44 | 10A | Rt Park Lamps |
| 45 | 20A | Trailer Tow Park Lamps |
| 46 | 10A | Airbag System # 2 |
| 47 | 40A | Ignition Run/Accessory (Acc) |
| 48 | 20A | Sunroof/Sound Box |
| 49 | 30A | Trailer Tow B+ |
| 50 | 40A | Anti-Lock Brake System (ABS) Module (Pump) |
| 51 | 40A | Park Lamps |
| 52 | - | Spare |
| 53 | 40A | Rear Defogger |
| 54 | - | Spare |
| 55 | 10A | Cabin Compartment Node (CCN) Accessory (ACC) Feed |
| 56 | 10A | Heated Seats |
| 57 | 20A | Airbag System # 2 |
| 58 | 20A | Heated Seats |
| 59 | 10A | HVAC Module |
| 60 | 10A | ABS Module |
