Chrysler 200 2016 Fuse Box Info

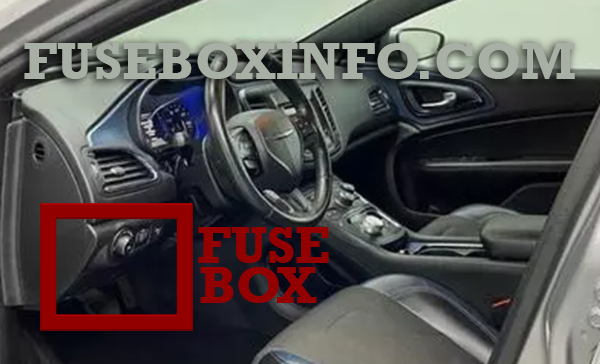

Fuse box location:
The fuse box is located on the left side dash panel under the instrument panel.

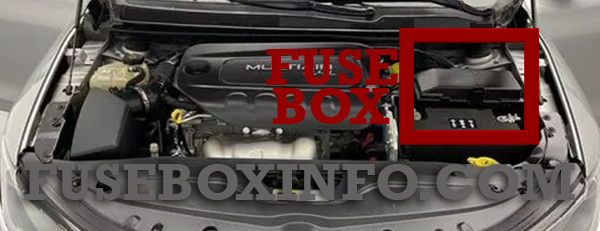

Engine compartment fuse box:
Fuse Box Diagram | Layout

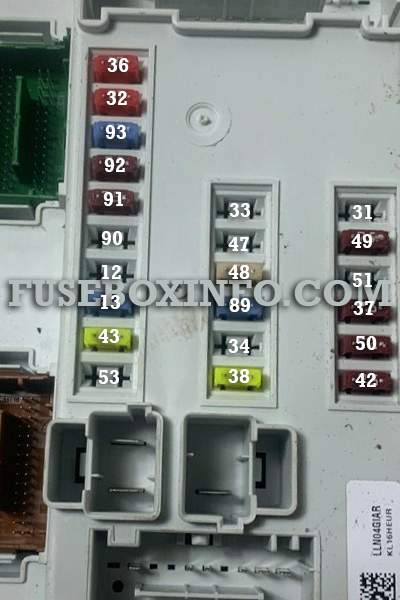

Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 13 | 15A | Low Beam Left |
| 32 | 10A | Interior Lighting |
| 36 | 10A | Intrusion Module/Siren |
| 37 | 7.5A | Aux. Switch Bank Module (ASBM) |
| 38 | 20A | All Doors Lock/Unlock |
| 43 | 20A | Washer Pump Front |
| 48 | 20A | Horns |
| 49 | 7.5A | Lumbar Support |
| 51 | 10A | Driver Window Switch/Power Mirrors – If Equipped |
| 53 | 7.5A | UCI Port (USB & AUX) |
| 89 | 5A | Trunk Lamp |
| 91 | 5A | Fog Lamp Front Left |
| 92 | 5A | Fog Lamp Front Right |
| 93 | 10A | Low Beam Right |

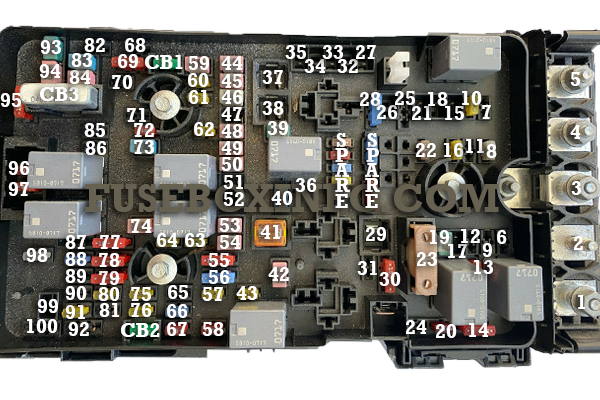

Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 06 | - | Not Used |
| 07 | - | Not Used |
| 08 | 25A | Engine Control Module (ECM) / Fuel Inj. |
| 09 | - | Not Used |
| 10 | 20A | Power Transfer Unit (PTU) – If Equipped |
| 11 | - | Not Used |
| 12 | 20A | Brake Vacuum Pump - If Equipped |
| 13 | 10A | Engine Control Module (ECM) / VSM (Stop/Start Only) |
| 14 | 10A | Drivetrain Control Module (DTCM)/Power Transfer Unit (PTU) – If Equipped/RDM/Brake System Module (BSM)/ Brake Pedal Switch/EPB (Electric Park Brake) |
| 15 | - | Not Used |
| 16 | 20A | Ignition Coil |
| 17 | - | Not Used |
| 18 | - | Not Used |
| 19 | 40A | Starter Solenoid |
| 20 | 10A | A/C Compressor Clutch |
| 21 | - | Not Used |
| 22 | 5A | Radiator Fan Enable |
| 23 | 70A | Body Controller Module (BCM) - Feed 2 |
| 23 | 50A | Voltage Stability Module (VSM) #2 – If Equipped With Stop/Start Engine Option |
| 24 | - | Not Used |
| 25B | 20A | Front Washer Pump – If Equipped with Stop/Start Option |
| 26 | - | Not Used |
| 27 | - | Not Used |
| 28 | 15A | Transmission Control Module (TCM) |
| 29 | - | Not Used |
| 30 | 10A | Engine Control Module (ECM)/EPS/Fuel Pump Relay Feed |
| 31 | - | Not Used |
| 32 | - | Not Used |
| 33 | - | Not Used |
| 34 | - | Not Used |
| 35 | - | Not Used |
| 36 | - | Not Used |
| 37 | 50A | Radiator Fan PWM Controller |
| 38 | - | Not Used |
| 39 | 40A | HVAC Blower Motor |
| 40 | - | Not Used |
| 41 | 50A | Voltage Stability Module (VSM) #1 – If Equipped With Stop/Start Engine Option |
| 41 | 60A | Body Controller Module (BCM) – Feed 1 |
| 42 | - | Not Used |
| 43 | 20A | Fuel Pump Motor |
| 44 | - | Not Used |
| 45 | 30A | Passenger Door Module (PDM) - If Equipped |
| 46 | 25A | Sunroof - If Equipped |
| 47 | - | Not Used |
| 48 | 30A | Driver Door Module (DDM) |
| 49 | 30A | Power Inverter (115V A/C) - If Equipped |
| 50 | 30A | Windshield Wiper Smart Motor (WWSM) |
| 51 | - | Not Used |
| 52 | - | Not Used |
| 53 | 30A | Brake System Module BSM & Valves |
| 54 | 30A | Body Controller Module (BCM) – Feed 3 |
| 55 | 10A | Blind Spot Sensors/Compass/ Rearview Camera – If Equipped |
| 56 | 15A | Ignition Node Module (IGNM) / RF Hub |
| 57 | - | Not Used |
| 58 | 10A | Occupant Classification Module/Voltage Stability Module (VSM) #2 – If Equipped With Engine Stop/Start Option |
| 59 | 30A | Drivetrain Control Module (DTCM) |
| 60 | 20A | Power Outlet - Center Console |
| 61 | - | Not Used |
| 62 | - | Not Used |
| 63 | 20A | Front Heated Seats – If Equipped |
| 64 | 20A | Heated Steering Wheel – If Equipped |
| 65 | 10A | In Vehicle Temperature Sensor/Humidity Sensor/ Driver Assist System Module (DASM)/Park Assist (PAM) – If Equipped With Engine Stop/Start Option |
| 66 | 15A | Instrument Panel Cluster (IPC)/Electronic Climate Control (ECC) |
| 67 | 10A | In Vehicle Temperature Sensor/Humidity Sensor/ Drivers Assist System Module (DASM)/Park Assist (PAM) – If Equipped |
| 68 | - | Not Used |
| 69 | 10A | Gear Shift Module (GSM)/Active Grill Shutter (AGS). – If Equipped/ EPB SW |
| 70 | 5A | Intelligent Battery Sensor (IBS) – If Equipped with Engine Stop/Start Option |
| 71 | 20A | HID Headlamp Right – If Equipped with Engine Stop/Start Option |
| 72 | 10A | Heated Mirrors - If Equipped |
| 73 | - | Not Used |
| 74 | 30A | Rear Defroster/Defogger |
| 75 | 20A | Cigar Lighter |
| 76 | 10A | Drivers Window SW– If Equipped |
| 77 | 10A | UCI Port/Brake Pedal Switch |
| 78 | 10A | Diagnostic Port/Steering Column Control Module (SCCM) |
| 79 | 10A | Integrated Center Stack (ICS)/Switch Bank/ Instrument Panel Cluster (IPC)/EPB SW |
| 80 | 20A | Radio |
| 81 | - | Not Used |
| 82 | - | Not Used |
| 83 | 20A | Engine Controller Module (ECM) |
| 84 | 30A | Electric Park Brake (EPB) – Left |
| 85 | - | Not Used |
| 86 | 20A | Horns - If Equipped With Stop/Start Engine Option |
| 87A | 20A | HID Headlamp Left – If Equipped Stop/Start Only |
| 88 | 10A | Collision Mitigation Module (CMM)/ Electrochromatic Mirror/ Haptic Lane Feedback Module (Half)/Humidity Sensor– If Equipped |
| 89 | - | Not Used |
| 90 | - | Not Used |
| 91 | - | Not Used |
| 92 | - | Not Used |
| 93 | 40A | Brake System Module (BSM) – Pump Motor – If Equipped |
| 94 | 30A | Electric Park Brake (EPB) - Right |
| 95 | 10A | Electrochromatic Mirror/ Rain/Pass. Window SW/ Power Outlet Console Illumination/Sensor/ Sunroof – If Equipped |
| 96 | 10A | Occupant Restraint Controller (ORC) (Airbag) |
| 97 | 10A | Occupant Restraint Controller (ORC) (Airbag) |
| 98 | 25A | Audio Amplifier - If Equipped |
| 99 | - | Not Used |
| 100 | - | Not Used |
