Chrysler 200 2011 Fuse Box Info

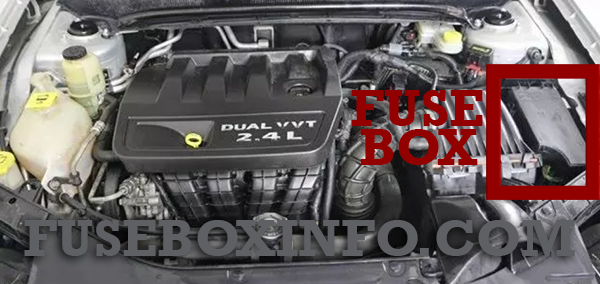

Fuse box location:
Fuse Box Diagram | Layout

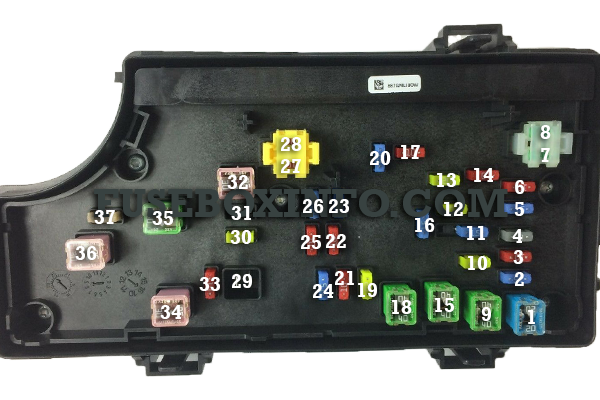

Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 40A | Power Top Module – If Equipped |
| 2 | 20A | AWD Module |
| 3 | 10A | Center High Mounted Stop Light (CHMSL)/Brake Switch |
| 4 | 10A | Ignition Switch |
| 5 | 20A | Trailer Tow – If Equipped |
| 6 | 10A | Power Mirror Switch/Climate Controls |
| 7 | 30A | Ignition Off Draw (IOD) Sense 1 |
| 8 | 30A | Ignition Off Draw (IOD) Sense 2 |
| 9 | 40A | Battery Feed – Power Seats – If Equipped/ PZEV Air Pump – If Equipped |
| 10 | 20A | Instrument Panel/ Power Locks/Interior Lights |
| 11 | 15A | Selectable Power Outlet (Inside Center Arm Rest) |
| 12 | 20A | - |
| 13 | 20A | Ignition |
| 14 | 10A | Instrument Panel |
| 15 | 40A | Radiator Fan Relay |
| 16 | 15A | Cigar Lighter/ Sunroof – If Equipped |
| 17 | 10A | Wireless Control Module (WCM)/ Clock/Steering Control Module (SCM) |
| 18 | 40A | Auto Shutdown (ASD) Relay |
| 19 | 20A | Audio Amplifier – If Equipped |
| 20 | 15A | Radio |
| 21 | 10A | Siren – If Equipped |
| 22 | 10A | Ignition Run – Climate Controls/Hot Cupholder – If Equipped |
| 23 | 15A | Auto Shutdown (ASD) Relay 3 |
| 24 | 15A | Sunroof – If Equipped |
| 25 | 10A | Ignition Run — Heated Mirrors - If Equipped |
| 26 | 15A | Auto Shutdown (ASD) Relay 2 |
| 27 | 10A | Ignition Run – Occupant Classification Module (OCM)/ Occupant Restraint Controller (ORC) |
| 28 | 10A | Ignition Run — Occupant Classification Module (OCM)/ Occupant Restraint Controller (ORC) |
| 29 | - | Hot Car (No Fuse Required) |
| 30 | 20A | Ignition Run – Heated Seats – If Equipped |
| 31 | 10A | Headlamp Washer – If Equipped |
| 32 | 30A | Auto Shutdown (ASD) Relay 1 |
| 33 | 10A | Switch Bank/ Diagnostic Link Connector/ Powertrain Control Module (PCM) |
| 34 | 30A | Anti-Lock Brakes (ABS) Module – If Equipped/Electronic Stability Control (ESC) Module – If Equipped |
| 35 | 40A | Anti-Lock Brakes (ABS) Module – If Equipped/Electronic Stability Control (ESC) Module – If Equipped |
| 36 | 30A | Passenger Door Module (PDM)/Driver Door Module (DDM) |
| 37 | 25A | Power Top Module – If Equipped |
