Chrysler Pacifica 2022 Fuse Box Info

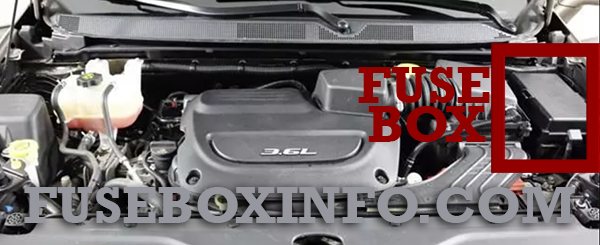

Engine compartment fuse box location:
The Power Distribution Center is located in the engine compartment near the battery.
Fuse Box Diagram | Layout
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 06 | - | Not Populated |
| 07 | 25A | Ignition Coil/Fuel Injector |
| 08 | - | Not Populated |
| 09 | 25A | Amplifier / Active Noise Control* |
| 10 | - | Not Populated |
| 11 | - | Not Populated |
| 12 | 5A | Battery Sensor (IBS) |
| 13 | 10A | ECM (S)* |
| 14 | 10A | ECM |
| 15 | 40A | CBC / Power Locks |
| 16 | 20A | ECM |
| 17 | 30A | Starter |
| 18 | 40A | CBC / EXT LIGHTS |
| 19 | 25A | 2nd Row Folding Seats Solenoid LT* |
| 20 | 10A | A/C Compressor Clutch |
| 21 | 25A | 2nd Row Folding Seat Solenoid RT* |
| 22 | - | Not Populated |
| 23 | - | Not Populated |
| 24 | 20A | RR Wiper |
| 25 | 10A | Hands Free Dr Mod / Active Grille Shutter / Pwr Mirror / VRM |
| 26 | 40A | Front HVAC Blower Motor |
| 27 | 25A | RR Slide Door Module-RT* |
| 28 | 10A | Diagnostic Port / USB+(IP) / Video USB Port / Overhead DVD Player (Aftermarket) |
| 29 | - | Not Populated |
| 30 | 15A | Media HUB / Power Lumbar* |
| 31 | - | Not Populated |
| 32 | 20A | ECM |
| 33 | 30A | Power Liftgate Module* |
| 34 | 25A | RR Door Module-LT* |
| 35 | 25A | Sunroof* |
| 36 | - | Not Populated |
| 37 | 40A | CBC / Exterior Lights |
| 38 | 60A | Vacuum Cleaner* |
| 39 | 25A | Rear HVAC Blower Motor |
| 40 | - | Not Populated |
| 41 | - | Not Populated |
| 42 | 40A | Folding Seat Module* |
| 43 | 20A | Fuel Pump Motor |
| 44 | 30A | CBC / Interior Lights |
| 45 | 30A | Power Inverter* |
| 46 | 30A | Driver Door Module |
| 47 | 30A | Passenger Door Module |
| 48 | - | Not Populated |
| 49 | 25A | RR Sliding Door Module-LT* |
| 50 | 25A | RR Door Module-RT* |
| 51 | 30A | Front Wiper |
| 52 | 30A | Brake Vacuum Pump |
| 53 | - | Not Populated |
| 54 | 40A | ESP-ECU And Valves |
| 55 | 15A | Radio Frequency HUB/ Keyless Ignition System (KIN) / ESL / DVD |
| 56 | 10A | Front and Rear HVAC Control Module / Occupant Classification Module (OCM) / Electronic Steering Lock (ESL) / ESP / ESC |
| 57 | - | Not Populated |
| 58 | 10A | Drive Train Control Mod / Power Transfer Unit* |
| 59 | 30A | Trailer Tow Receptacle* |
| 60 | 20A | Rear Cargo Pwr Outlet |
| 61 | 20A | Trailer Tow Right Stop/Turn* |
| 62 | 20A | Power Transfer Unit* |
| 63 | 20A | Trailer Tow Left Stop/Turn* |
| 64 | 15A | RT HID Headlamp* |
| 65 | - | Not Populated |
| 66 | 15A | Cluster |
| 67 | 10A | Haptic Lane Feedback Module (HALF) / Parktronics System (PTS)/Drivers Assist System Module (DASM) |
| 68 | - | Not Populated |
| 69 | - | Not Populated |
| 70 | - | Not Populated |
| 71 | 20A | Horn |
| 72 | 10A | Heated Mirrors* |
| 73 | 30A | Rear Defroster |
| 74 | 20A | Trailer Tow Backup Lights* |
| 75 | 5A | Overhead Console / RR Center Stack |
| 76 | 20A | Uconnect / Center Display / Telematics |
| 77 | 10A | RR Entertainment / Media HUB / USB(S) / Rain Sensor / Sunroof / RR View Mirror/ Overhead DVD Player / INT Monitoring Camera / Wireless Charging Pad |
| 78 | 15A | TCM (ZF) / E-Shifter / Cluster |
| 79 | 10A | ICS / HVAC / SCCM/ EPB SW |
| 80 | - | Not Populated |
| 81 | - | Not Populated |
| 82 | - | Not Populated |
| 83 |
20A 30A |
TT Park Lights* Headlamp Washer Pump* |
| 84 | 30A | Drive Train Control MOD* |
| 85 | 20A | Cigar Lighter |
| 86 | - | Not Populated |
| 87 | - | Not Populated |
| 88 | 20A | Front Heated Seats* |
| 89 | 20A | Rear Heated Seats* |
| 90 | - | Not Populated |
| 91 | 15A | Front Ventilated Seats/Heated Steering Wheel* |
| 92 | 5A | Security Gateway |
| 93 | - | Not Populated |
| 94 | 40A | ESC Motor Pump |
| 95A | 10A | USB Charge Port — ACC/RUN |
| 95B | 10A | Selectable Fuse Location – USB IP (Direct) B+ |
| 96 | 10A | Airbag |
| 97 | 10A | Airbag |
| 98 | 15A | Left HID Headlamp* |
| 99 | 30A | Trailer Tow Elect Brake Module* |
| 100 | 10A | Headlamp Level / RR Camera / Blindspot / Humidity SNSR / In Car Temp SNSR / Headlamp SW* |
| CB1 | 25A | Power Seats (Driver) |
| CB2 | 25A | Power Seats (Pass) |
| CB3 | 25A | FRT PWR Window W/O Door Nodes + RR PWR Window Lockout |
*If Equipped
