Chrysler Aspen 2009 Fuse Box Info

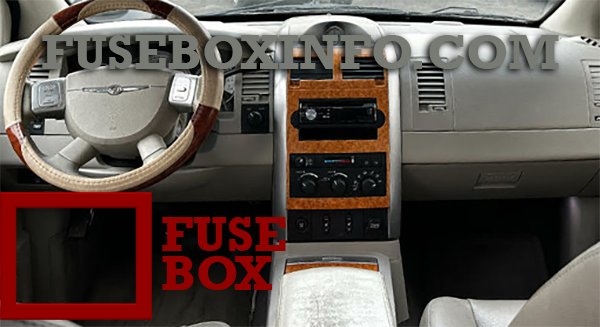

Passenger compartment fuse box location:
The fuse box is located in the left kick panel.
Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 15A | Instrument Cluster Battery Feed |
| 2 | 10A | Spare |
| 3 | 10A | Ignition Run/Start for Next Generation Controller (NGC), Integrated Power Module (IPM), AC Relay and Fuel Pump Relay |
| 4 | 10A | Door Node and NonMemory Power Mirror Switch Battery Feed |
| 5 | 10A | Airbags (2 Fuses in Yellow Holder) |
| 6 | 2A | Ignition Run/Start Unlock |
| 7 | 25A | Radio Battery Feed |
| 8 | 10A | Ignition Run/Start for Cluster/Transfer Case/Seat Sw. Back lighting |
| 9 | 10A | Satellite Digital Audio Receiver (SDAR)/Digital Video Disc (DVD) Battery Feed |
| 10 | 10A | Spare |
| 11 | 10A | Heated Mirrors |
| 12 | 20A | Cluster Battery Feed |
| 13 | 10A | Ignition Run HVAC Module/Heated Rear Glass (EBL) Relay |
| 14 | 10A | ABS Module Ignition Run |
| 15 | 15A | Battery Feed BlueTooth, Compass/Trip Computer (CMTC), Sentry Key Diagnostics |
| 16 | 20A | Reconfigurable Power Outlets |
| 17 | 20A | Ignition Run / Rear Park Assist / Second Row Heated Seats |
| 18 | 20A | Cigar Lighter Ignition |
| 19 | 10A | Spare Fuse |
| 20 | 15A | Heating & Air Conditioning w/ATC Only Battery Feed |
| 21 | 25A | Amplifier Battery Feed |
Engine compartment fuse box A (Power Distribution Center):
| Fuse/Relay N° | Rating | Functions |
| 1 | 30A | Starter |
| 2 | 30A | Front Wiper |
| 3 | 40A | Brake Batt |
| 4 | 30A | JB Feed Acc # 2 |
| 5 | 40A | Power Seats |
| 6 | 30A | Run Remote Relay Feed |
| 7 | 40A | Blower Motor Relay Feed |
| 8 | 40A | JB Feed Acc Delay |
| 9 | - | Spare |
| 10 | 30A | ASD |
| 11 | 40A | Power Liftgate ( If Equipped) |
| 12 | 40A | JB Feed / Heated Rear Glass (EBL)/ T Case Brake |
| 13 | 30A | JB Feed RR |
| 14 | 40A | ESP Pump |
| 15 | 50A | JB Feed |
| 16 | 10A | Spare |
| 17 | - | Spare |
| 18 | 20A | Fuel Pump |
| 19 | 20A | Next Generation Controller (NGC) |
| 20 | 25A | 115v Power Inverter |
| 21 | 20A | ABS Batt |
| 22 | 20A | Next Generation Controller (NGC) Bat |
| 23 | 20A | Trailer Tow |
| 24 | 15A | A/C Clutch |
| 25 | 15A | Stop Lamp Switch |
| 26 | - | Spare |
| 27 | 20A | Run/Start Relay Feed |
| 28 | - | Spare |
| 29 | - | Run Start |
| 30 | - | Run Remote |
| 31 | - | Spare |
| 32 | - | Starter |
| 33 | - | Electronic Automatic Transaxle (EATX) |
| 34 | - | AC Clutch |
| 35 | - | Fuel Pump Rly |
| 36 | - | Spare |
| 37 | - | Stop Lamp Switch |
| 38 | - | Spare |
| 39 | - | Blower Motor |
| 40 | - | Auto Shut Down (ASD) Rly |
Engine compartment fuse box B (Integrated Power Module):
| Fuse/Relay N° | Rating | Functions |
| 1 | - | Wiper On/Off Rly |
| 2 | - | Wiper Hi/Lo Rly |
| 3 | - | Horn Rly |
| 4 | - | Rear Wiper Rly |
| 5 | - | Lt Trailer-Tow Stop/Turn Rly |
| 6 | - | Rt Trailer-Tow Stop/Turn Rly |
| 7 | - | Park Lamps Rly |
| 8 | 10A | Lt Park Lamps |
| 9 | 10A | Trailer-Tow Park Lamps |
| 10 | 10A | Rt Park Lamps |
| 11 | - | Radiator Fan Hi Rly |
| 12 | 20A | Front Control Module (FCM) Batt #4 |
| 13 | 20A | Front Control Module (FCM) Batt #2 |
| 14 | 20A | Adjustable Pedal |
| 15 | 20A | Ft Fog Lamps |
| 16 | 20A | Horn |
| 17 | 20A | Rear Wiper |
| 18 | 20A | Front Control Module (FCM) Batt #1 |
| 19 | 20A | Lt Trailer-Tow Stop/Turn |
| 20 | 20A | Front Control Module (FCM) Batt #3 |
| 21 | 20A | Rt Trailer-Tow Stop/Turn |
| 22 | 30A | Front Control Module (FCM) BATT # 5 |
| 23 | 40A | Radiator Fan |
| 24 | - | Radiator Fan Lo Rly |
| 25 | - | Ft Fog Lamps Rly |
| 26 | - | Adjustable Pedal Rly |
| 27 | 30A | Ignition Off Draw (IOD) #1 |
| 28 | 30A | Ignition Off Draw (IOD) #2 |
| 29 | - | Spare |
| 30 | - | Spare |
