Chevrolet Impala 2007 Fuse Box Info

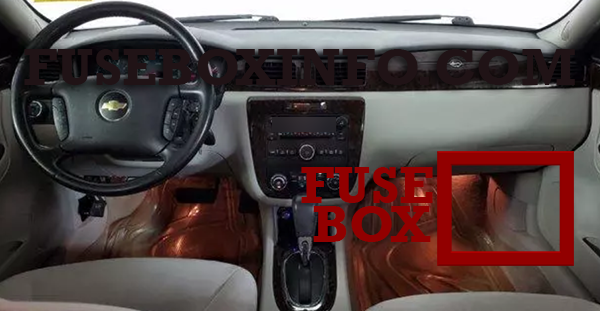

Passenger fuse box location:
The fuse box is located on the passenger’s side of the vehicle under the instrument panel.

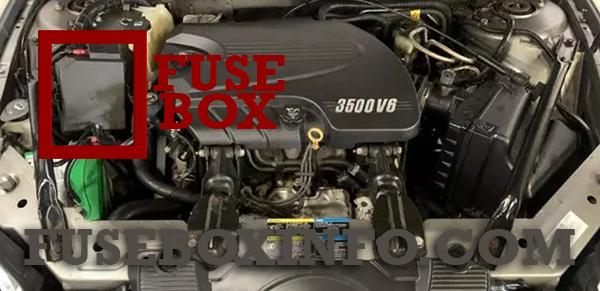

Engine compartment fuse box:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Functions |
| PWR/SEAT | Power Seats |
| PWR/WNDW | Power Window |
| RAP | Retained Accessory Power |
| HTD/SEAT | Heated Seats |
| AUX | Auxiliary Outlets |
| AMP | Amplifier |
| S/ROOF | Sunroof |
| XM | XM™ Radio |
| CNSTR | Canister |
| DR/LCK | Door Locks |
| PWR/MIR | Power Mirrors |
| AIRBAG | Airbags |
| TRUNK | Trunk |
| TRUNK | Trunk Relay |
Engine compartment fuse box:
| Fuse/Relay Name | Functions |
| LT PARK | Driver’s Side Parking Lamp |
| RT PARK | Passenger’s Side Parking Lamp |
| FAN 1 | Cooling Fan 1 |
| SPARE | Spare |
| SPARE | Spare |
| AIRBAG/ DISPLAY | Airbag, Display |
| TRANS | Transaxle |
| ECM IGN | Engine Control Module, Ignition |
| RT T/SIG | Passenger’s Side Turn Signal |
| LT T/SIG | Driver’s Side Turn Signal |
| DRL 1 | Daytime Running Lamps 1 |
| HORN | Horn |
| SPARE | Spare |
| PWR DROP/ CRANK | Power Drop, Crank |
| STRG WHL | Steering Wheel |
| ECM/TCM | Engine Control Module, Transmission Control Module |
| RVC SEN | Regulated Voltage Control Sensor |
| RADIO | Audio System |
| FOG LAMPS | Fog Lamps |
| SPARE | Spare |
| BATT 4 | Battery 4 |
| ONSTAR | OnStar® |
| STRTR | Starter |
| ABS MTR1 | Anti-lock Brake System Motor 1 |
| BATT 3 | Battery 3 |
| WSW | Windshield Wiper |
| HTD MIR | Heated Mirror |
| SPARE | Spare |
| BATT 1 | Battery 1 |
| ABS MTR2 | Anti-lock Brake System Motor 2 |
| AIR PUMP | Air Pump |
| BATT 2 | Battery 2 |
| INT LIGHTS | Interior Lamps |
| INT LTS/ PNL DIM | Interior Lamps, Instrument Panel Dimmer |
| A/C CMPRSR | Air Conditioning Compressor |
| AIR SOL | AIR (Air Injection Reactor) Solenoid |
| AUX PWR | Auxiliary Power |
| BCM | Body Control Module |
| CHMSL/ BACKUP | Center High-Mounted Stoplamp, Back-up Lamps |
| DISPLAY | Display |
| ETC/ECM | Electronic Throttle Control, Engine Control Module |
| INJ 1 | Injector 1 |
| EMISSIONS 1 | Emissions 1 |
| INJ 2 | Injector 2 |
| EMISSIONS 2 | Emissions 2 |
| RT SPOT | Right Spot |
| LT SPOT | Left Spot |
| HDLP MDL | Headlamp Module |
| DRL 2 | Daytime Running Lamps 2 |
| FUEL/PUMP | Fuel Pump |
| WPR | Wiper |
| LT LO BEAM | Driver’s Side Low Beam |
| RT LO BEAM | Passenger’s Side Low Beam |
| LT HI BEAM | Driver’s Side High Beam |
| RT HI BEAM | Passenger’s Side High Beam |
| STRTR | Starter |
| REAR DEFOG | Rear Defogger |
| FAN 1 | Cooling Fan 1 |
| FAN 2 | Cooling Fan 2 |
| A/C CMPRSR | Air Conditioning Compressor |
| FAN 3 | Cooling Fan 3 |
| FUEL/PUMP | Fuel Pump |
| PWR/TRN | Powertrain |
