Chery Tiggo 8 Pro 2020 Fuse Box Info

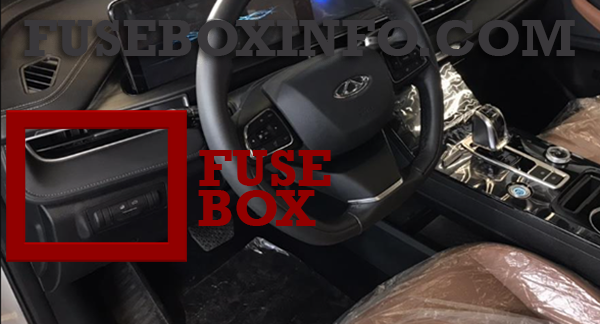

Passenger compartment fuse box location:
The fuse box is located on the lower left side of instrument panel.

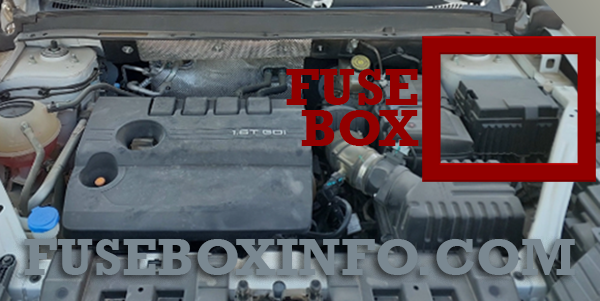

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box - Version 1 (T1D 1.6T+7DCT):
| Fuse/Relay N° | Functions |
| RF01 | BCM & Instrument Panel & PEPS & Gateway |
| RF02 | - |
| RF03 | EPS & Angle Sensor |
| RF04 | Audio |
| RF05 | Airbag Module |
| RF06 | A/C Control Panel & Rear Speed Resistor Panel & Automatic A/C Control Module & Bluetooth Module & T-BOX Module & Instrument Panel Ambient Light & Wireless Charging Module |
| RF07 | A/C Control Panel & Rear Speed Resistor Panel & TCU (7DCT) & T-BOX Module & FIDC Switch & Automatic A/C Control Module & Negative Ion Generator |
| RF08 | Door Ambient Light & Panoramic Controller & Kick sensor & Camera & Driving Recorder |
| RF09 | - |
| RF10 | - |
| RF11 | - |
| RF12 | - |
| RF13 | TCU (CVT25) |
| RF14 | - |
| RF15 | Auxiliary Fasia Console Switch (DCT) & OBD Diagnostic Interface & Spiral Cable & Center Console Switch |
| RF16 | - |
| RF17 | - |
| RF18 | Power Rear View Mirror Motor |
| RF19 | - |
| RF20 | Rrly01 Blower RLY |
| RF21 | PEPS & Gateway & EPB & Shift Switch |
| RF22 | - |
| RF23 | RRLY02 Steering Sheel Heat RLY |
| RF24 | RRLY03 Defoger RLY |
| RF25 | - |
| RF26 | BCM & Audio & Power Rear View Mirror Switch & Mobile Wireless Charging Module |
| RF27 | Spare Power |
| RF28 | USB Charging Module & Driving Recorder Charging Port |
Passenger compartment fuse box - Version 2 (T1A 2.0T+CVT25):
| Fuse/Relay N° | Functions |
| RF01 | Instrument Cluster & BCM & Center Gateway & GLONASS & PEPS |
| RF02 | - |
| RF03 | EPS & Angle Sensor |
| RF04 | - |
| RF05 | Airbag Module |
| RF06 | - |
| RF07 | Auto A/C Control Module & Audio & Adjustment Switch Assembly & Auxiliary Fascia Console Switch Assembly & Gear backlight (CVT25) & Gearshift mechanism (CVT25) |
| RF08 | - |
| RF09 | Radio Contrl Module |
| RF10 | Instrument Cluster & A/C Control Panel (AUTO) & Right Mixing Damper Motor & Left Mixing Damper Motor & Mode Damper Motor & Inner and outer Circulation Motor & GLONASS & T-BOX MODULE |
| RF11 | - |
| RF12 | - |
| RF13 | TCU (CVT25) |
| RF14 | - |
| RF15 | Instrument Panel Ambient Lamp & Auxiliary Instrument Panel Ambient Lamp & Spiral Cable & Center Console Switch & EPB Switch & OBD Diagnose Port & T-box Module |
| RF16 | - |
| RF17 | - |
| RF18 | A/C Control Panel & Power Rear View Mirror Motor |
| RF19 | - |
| RF20 | Rrly 01 Blower RLY |
| RF21 | PEPS & Center Gateway |
| RF22 | - |
| RF23 | RRLY02 steering wheel heat RLY |
| RF24 | RRLY03 DEFROST RLY |
| RF25 | - |
| RF26 | BCM & Radio & Power Rear View Mirror Switch |
| RF27 | Spare Power Supply |
| RF28 | USB Charging Module |
Engine compartment fuse box - Version 1 (T1D 1.6T+7DCT):
| Fuse/Relay N° | Functions |
| SB01 | ISS1 |
| SB02 | ACC |
| SB03 | Start control |
| SB04 | - |
| SB05 | BCM2 |
| SB05 | BCM1 |
| SB07 | ABS/EPS |
| SB08 | ESP (EPB) |
| SB09 | DCT |
| SB10 | PLG |
| SB11 | Seat adjustment |
| EF01 | ERLY 01 vacuum pump RLY |
| EF02 | Oxygen sensor |
| EF03 | Ignition coil |
| EF04 | ECU solenoid valve |
| EF05 | AWD |
| EF06 | AGS & PWM FAN |
| EF07 | AUX Light |
| EF08 | Left Low beam power |
| EF09 | - |
| EF10 | ECU & Start RLY Coil (For ISS) |
| EF11 | - |
| EF12 | - |
| EF13 | ECU & TCU & Brake SW (NC) & FPC 15+ |
| EF14 | Compressor Pipe Press Switch & Reverse Radar Module & Sunroof & DVR & Seat Ventilation & AFS & MST & RACP |
| EF15 | AVW & BSD & LDW & AEB & ACC15+ |
| EF16 | Rear Blower |
| EF17 | - |
| EF18 | - |
| EF19 | - |
| EF20 | Injector Cyl1.2.3.4 |
| EF21 | ISS2 |
| EF22 | - |
| EF23 | - |
| EF24 | High beam |
| EF25 | - |
| EF26 | Right Low beam power |
| EF27 | ERLY12 Horn RLY |
| EF28 | ESP & ABS |
| EF29 | ERLY13 Fuel Pump RLY |
| EF30 | BCM6 |
| EF31 | IGN1 |
| EF32 | Brake SW & BSD |
| EF33 | PLGM & GLP |
| EF34 | BCM5 |
| EF35 | BCM3 |
| EF36 | FPC |
| EF37 | Spare Power & R BLW RLY COIL |
| EF38 | ECU & DCT 30+ |
| EF39 | Wiper RLY |
| EF40 | - |
| EF41 | Seat Heater |
| EF42 | A/C clutch |
| EF43 | - |
| EF44 | BCM4 |
| EF45 | Sunroof |
| EF46 | Memory Fuse |
| EF47 | IP Fuse Box power |
| EF48 | EPS power |
| EF49 | ALT power |
| EF50 | Cooling Fan |
| EF52 | FW Heater 2 |
| EF53 | FW Heater 1 |
Engine compartment fuse box - Version 2 (T1A 2.0T+CVT25):
| Fuse/Relay N° | Functions |
| SB01 | ISS 1 |
| SB02 | ACC |
| SB03 | Start control |
| SB04 | - |
| SB05 | BCM 2 |
| SB05 | BCM 1 |
| SB07 | ESP (EPB) |
| SB08 | ESP (EPB) |
| SB09 | DCT |
| SB10 | PLG |
| SB11 | Seat adjustment SEAT |
| EF01 | ERLY 01 vacuum pump RLY |
| EF02 | Oxigen Sensor |
| EF03 | Ignition coil |
| EF04 | ECU solenoid valve |
| EF05 | - |
| EF06 | Cooling Fan |
| EF07 | - |
| EF08 | Left Low beam power |
| EF09 | - |
| EF10 | ECU & Start RLY Coil (For ISS) |
| EF11 | - |
| EF12 | - |
| EF13 | ECU & TCU & brake SW |
| EF14 | Reverse Radar Module & Sunroof & Seat Control Module & Anti Glare Interior Rear view Mirror & Rear A/C Panel |
| EF15 | 360 Camera Module |
| EF16 | Rear Blower |
| EF17 | - |
| EF18 | - |
| EF19 | - |
| EF20 | Injector Cyl1.2.3.4 |
| EF21 | ISS 2 |
| EF22 | - |
| EF23 | - |
| EF24 | ERLY20 High beam RLY |
| EF25 | - |
| EF26 | Right Low beam power |
| EF27 | ERLY12 horn RLY |
| EF28 | ESP (EPB) |
| EF29 | ERLY13 fuel pump RLY |
| EF30 | BCM6 |
| EF31 | IGN (a) & IGN (b) |
| EF32 | Brake Switch & 360 Camera Module |
| EF33 | PLG & Kick Sensor & Door Ambient Lamp |
| EF34 | BCM5 |
| EF35 | BCM3 |
| EF36 | - |
| EF37 | The Third Spare Power Supply & Trunk Spare power supply |
| EF38 | ECU |
| EF39 | Wiper RLY |
| EF40 | - |
| EF41 | Seat Heater |
| EF42 | ERLY 19 AC clutch RLY |
| EF43 | - |
| EF44 | BCM4 |
| EF45 | Sunroof |
| EF46 | IP Fuse Box power |
| EF47 | IP Fuse Box power |
| EF48 | EPS power |
| EF49 | ALT power |
| EF50 | Cooling fan |
| EF52 | FW Heater 2 RLY |
| EF53 | FW Heater 1 RLY |
