Chery Tiggo 8 2017 Fuse Box Info
Passenger compartment fuse box location:
The fuse box is located on the lower left side of instrument panel.

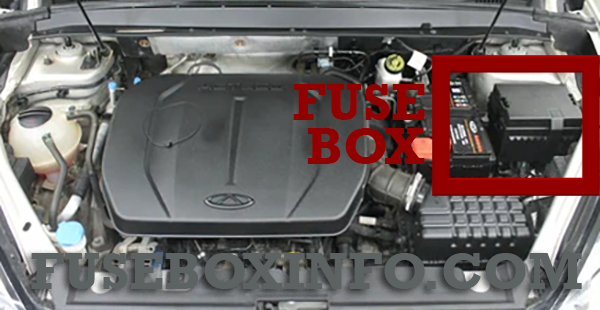

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Functions |
| RF01 | BCM & Instrument Cluster & Gateway |
| RF02 | - |
| RF03 | EPS & Angle Sensor |
| RF04 | Multi-View Camera System |
| RF05 | Airbag Module |
| RF06 | - |
| RF07 | A/C Control Panel & Radio Control Module & Head Lamps Adjust Sw Power & TBOX & Shift Lever (DCT) |
| RF08 | - |
| RF09 | A/C Control Panel & Radio Contrl Module & TBOX & DCDC |
| RF10 | Instrument Cluster |
| RF11 | - |
| RF12 | - |
| RF13 | - |
| RF14 | Tachograph |
| RF15 | Defrost Relay & EPB & Panoramic Image Module & OBD Diagnostic Interface & Sub-instrumentation Switch & Kick Wire Sensor |
| RF16 | - |
| RF17 | - |
| RF18 | A/C Control Panel & Defrost Work Feedback |
| RF19 | - |
| RF20 | Rly01 Blower R |
| RF21 | - |
| RF22 | - |
| RF23 | - |
| RF24 | Rly03 Defrost RLY |
| RF25 | - |
| RF26 | BCM & Radio & Power Rear View Mirror Switch |
| RF27 | Cigarette Lighter |
| RF28 | Spare Power |
Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| SB01 | ISS 1 |
| SB02 | ACC |
| SB03 | Start control |
| SB04 | Rear Blower |
| SB05 | BCM 2 |
| SB05 | BCM 1 |
| SB07 | ABS/EPS |
| SB08 | ESP (EPB) |
| SB09 | DCT |
| SB10 | PLG |
| SB11 | Seat adjustment |
| EF01 | ERLY 01 vacuum pump RLY |
| EF02 | Lambda sensor heating upstream & lambda sensor heating downstream |
| EF03 | Ignition coil |
| EF04 | ECU solenoid valve |
| EF05 | - |
| EF06 | AGS |
| EF07 | - |
| EF08 | Left Low beam power |
| EF09 | - |
| EF10 | ERLY 02 ECU RLY |
| EF11 | PEPS |
| EF12 | - |
| EF13 | ECU & DCT & brake SW |
| EF14 | AC & Sunroof & Reverse Radar Module |
| EF15 | PEPS & DC-DC (ISS) |
| EF16 | Rear Blower |
| EF17 | - |
| EF18 | - |
| EF19 | - |
| EF20 | Injector Cyl1.2.3.4 |
| EF21 | ISS 2 |
| EF22 | - |
| EF23 | - |
| EF24 | ERLY 20 High beam RLY |
| EF25 | - |
| EF26 | Right Low beam power |
| EF27 | ERLY 12 horn RLY |
| EF28 | ESP (EPB) |
| EF29 | ERLY13 fuel pump RLY |
| EF30 | BCM |
| EF31 | IGN (a) & IGN (b) |
| EF32 | PEPS & brake SW |
| EF33 | PLG |
| EF34 | BCM |
| EF35 | BCM |
| EF36 | - |
| EF37 | Spare Power |
| EF38 | ECU & DCT |
| EF39 | Wiper RLY |
| EF40 | - |
| EF41 | Seat Heater |
| EF42 | ERLY 19 AC clutch RLY |
| EF43 | - |
| EF44 | BCM |
| EF45 | Sunroof |
| EF46 | 30IP (b) & DC-DC (ISS) |
| EF47 | IP Fuse Box power |
| EF48 | EPS power |
| EF49 | ALT power |
| EF52 | ERLY 17 Low Fan RLY |
| EF53 | ERLY 18 High Fan RLY |
