GEM eL XD 2024 Fuse Box Info
Engine compartment fuse box location:

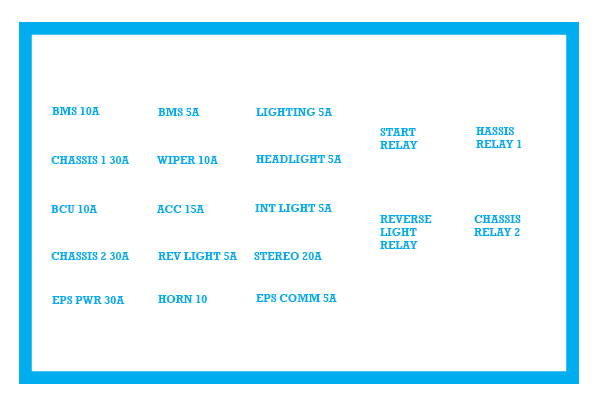

Fuse Box Diagram | Layout
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| BMS | 5A | BMS |
| CHASSIS 1 | 30A | CHASSIS 1 |
| BCU | 10A | BCU |
| CHASSIS 2 | 30A | CHASSIS 2 |
| EPS PWR | 30A | EPS PWR |
| BMS | 5A | BMS |
| WIPER | 10A | WIPER |
| ACC | 15A | ACC |
| REV LIGHT | 5A | REV LIGHT |
| HORN | 10A | HORN |
| LIGHTING | 5A | LIGHTING |
| HEADLIGHT | 5A | HEADLIGHT |
| INT LIGHT | 5A | INT LIGHT |
| STEREO | 20A | STEREO |
| EPS COMM | 5A | EPS COMM |
| START RELAY | - | START RELAY |
| REVERSE LIGHT RELAY | - | REVERSE LIGHT RELAY |
| CHASSIS RELAY 1 | - | CHASSIS RELAY 1 |
| CHASSIS RELAY 2 | - | CHASSIS RELAY2 |
