GEM eL XD 2020 Fuse Box Info

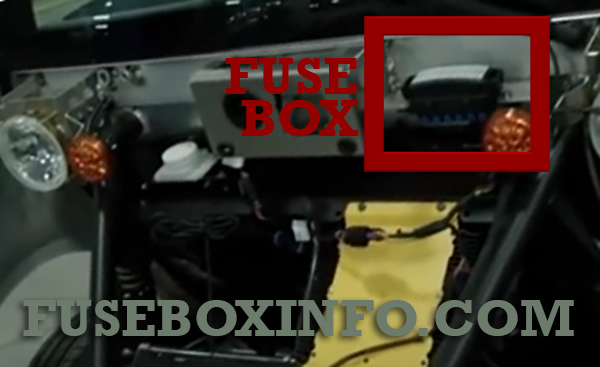

Engine compartment fuse box location:

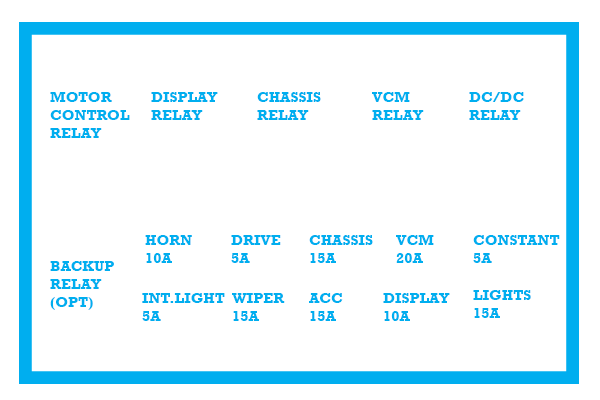

Fuse Box Diagram | Layout
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| MOTOR CONTROL RELAY | - | MOTOR CONTROL RELAY |
| DISPLAY RELAY | - | DISPLAY RELAY |
| CHASSIS RELAY | - | CHASSIS RELAY |
| VCM RELAY | - | VCM RELAY |
| DC/DC RELAY | - | DC/DC RELAY |
| BACKUP RELAY (OPT) | - | BACKUP RELAY (OPT) |
| HORN | 10A | HORN |
| INT. LIGHT | 5A | INT. LIGHT |
| DRIVE | 5A | DRIVE |
| WIPER | 15A | WIPER |
| CHASSIS | 30A | CHASSIS |
| ACC | 15A | ACC |
| VCM | 20A | VCM |
| DISPLAY | 10A | DISPLAY |
| CONSTANT | 5A | CONSTANT |
| LIGHTS | 15A | LIGHTS |
