Vauxhall Crossland X 2022 Fuse Box Info

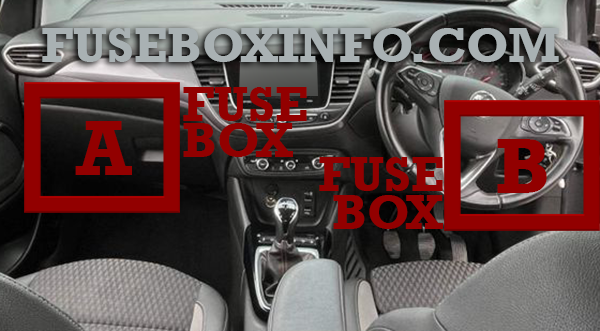

Passenger compartment fuse box location:
The the fuse box A is located behind a cover in the glove box. The fuse box B is located on the driver's side behind a cover in the instrument panel.

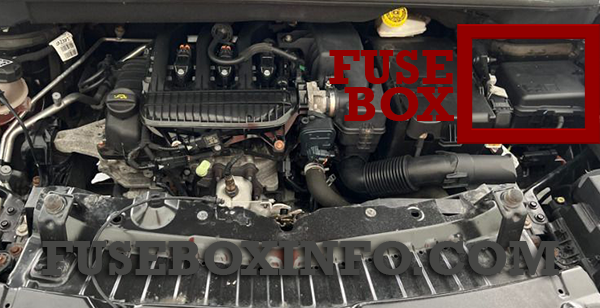

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box A:
| Fuse/Relay N° | Functions |
| 1 | Interior mirror / Exhaust system / Electric power steering / Clutch sensor / LPG / Exterior mirror adjustment / Inductive charging |
| 2 | - |
| 3 | Trailer Hitch |
| 4 | Horn |
| 5 | Windscreen washer pump front/rear |
| 6 | Windscreen washer pump front/rear |
| 7 | Heated steering wheel |
| 8 | Rear wiper |
| 9 | - |
| 10 | Central locking system |
| 11 | Central locking system |
| 12 | Instrument cluster |
| 13 | Climate control system / USB |
| 14 | BTA module |
| 15 | Instrument cluster / Climate control system |
| 16 | Brake / Starter / Retained power off |
| 17 | Instrument cluster |
| 18 | Advanced parking assist |
| 19 | Top column module / Trailer control module |
| 20 | - |
| 21 | Anti-theft alarm system / Start button |
| 22 | Rain sensor / Camera |
| 23 | Door module |
| 24 | Advanced parking assist / Camera / Infotainment |
| 25 | Airbag |
| 26 | Top column module |
| 27 | Anti-theft alarm system |
| 28 | - |
| 29 | Infotainment |
| 30 | - |
| 31 | Infotainment |
| 32 | Power outlet front |
| 33 | - |
| 34 | Heated exterior mirrors / Door module |
| 35 | Instrument cluster / Light switch / Advanced parking assist/ Transmission control module |
| 36 | Courtesy lights / Sunvisor lights / Glovebox light |
Passenger compartment fuse box B:
| Fuse/Relay N° | Functions |
| 1 | Heated rear window |
| 2 | Heated exterior mirrors |
| 3 | Front power window |
| 4 | Driver's door control unit |
| 5 | Rear power window |
| 6 | Heated seats |
| 7 | - |
| 8 | Infotainment |
| 9 | - |
| 10 | Power outlet rear |
| 11 | - |
| 12 | - |
Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | Fan climate control system |
| 2 | - |
| 3 | Body fuse box |
| 4 | - |
| 5 | Instrument panel fuse box |
| 6 | Engine cooling unit |
| 7 | Body control module |
| 8 | Engine control fuel pump |
| 9 | Engine control |
| 10 | Engine control |
| 11 | Engine control |
| 12 | Engine cooling unit |
| 13 | Body control module |
| 14 | Intelligent battery sensor |
| 15 | - |
| 16 | Front fog light |
| 17 | - |
| 18 | High beam right |
| 19 | High beam left |
| 20 | Engine control fuel pump |
| 21 | Starter |
| 22 | - |
| 23 | Starter |
| 24 | Trailer hitch |
| 25 | Instrument panel fuse box |
| 26 | Transmission control module |
| 27 | Body control module |
| 28 | Engine control module |
| 29 | Front wiper |
| 30 | Body control module |
