Yamaha Zuma 125 2011 Fuse Box Info
Fuse box location:

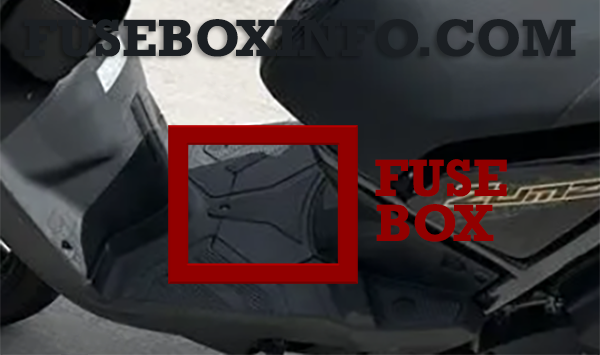

The fuse box is located under the cover, next to battery, on the operator footrests.
Fuse Box Diagram | Layout
| Fuse/Relay N° | Rating | Functions |
| 1 | 20A | Main fuse |
| 2 | 10A | Ignition fuse |
| 3 | 15A | Signaling system fuse |
| 4 | 10A | Headlight fuse |
| 5 | 10A | Fuel injection system fuse |
| 6 | - | Spare fuse |
