Yamaha FJR 1300 AE 2023 Fuse Box Info

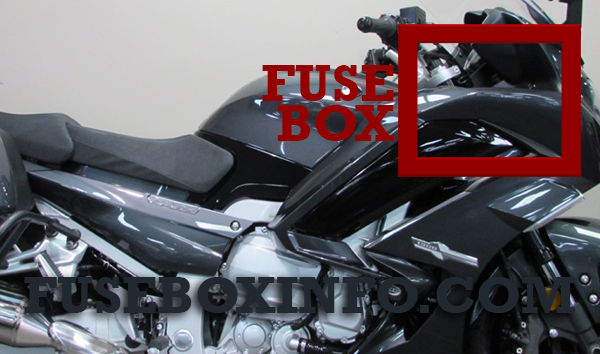

Fuse box location:
Two fuse boxes and individual fuses are located under the panel, on the right side.
Fuse Box Diagram | Layout
| Fuse/Relay N° | Rating | Functions |
| 1 | 30A | ABS motor fuse |
| 2 | 20A | ABS solenoid fuse |
| 3 | 15A | Fuel injection system fuse |
| 4 | 7.5A | Backup fuse (for clock) |
| 5 | 7.5A | Electronic throttle valve fuse |
| 6 | 7.5A | Headlight fuse |
| 7 | - | Spare fuse |
| 8 | 15A | Suspension fuse |
| 9 | 10A | Signaling system fuse |
| 10 | 3A | Terminal fuse 1 (for power outlet) |
| 11 | 7.5A | ABS control unit fuse |
| 12 | 20A | Ignition fuse |
| 13 | 10A | Right radiator fan motor fuse |
| 14 | 10A | Left radiator fan motor fuse |
| 15 | 7.5A | Hazard fuse |
| 16 | 20A | Windshield motor fuse |
Main fuse 1 (50A), Main fuse 2 (30A), Cruise control fuse (1A) and Brake light fuse (1A) are located under panel on the right side, near the battery and fuse boxes.
