Volvo Wheeled Excavator EWR150E Fuse Box Info
Cabin compartment fuse box location:

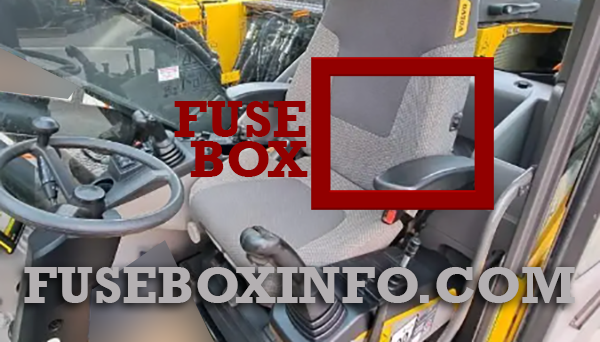

The cabin fuse box is located inside the cab behind the operator seat.
Fuse Box Diagram | Layout
Cabin compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| FU01 | 15A | Fuse, working lights cab front |
| FU02 | 10A | Fuse, horn |
| FU03 | 15A | Fuse, fuel warmer and automatic lubrication system |
| FU04 | 10A | Fuse, position light left |
| FU05 | 10A | Fuse, high beams |
| FU06 | 10A | Fuse, Spare |
| FU07 | 15A | Fuse, operator seat |
| FU08 | 10A | Fuse, flasher relay and direction indicators |
| FU09 | 10A | Fuse, EGR actuator and Nox sensors |
| FU10 | 7.5A | Fuse, low beam right |
| FU11 | 10A | Fuse, 24V joysticks, X1 pedal, SE6404 |
| FU12 | 15A | Fuse, GPMECU1 power |
| FU13 | 10A | Fuse, rotating beacon |
| FU14 | 10A | Fuse, cigarette lighter |
| FU15 | 7.5A | Fuse, low beam left |
| FU16 | 15A | Fuse, GPMECU2 power |
| FU17 | 10A | Fuse, power supply key pad, Volvo Co-Pilot |
| FU18 | 10A | Fuse, working lights cab rear |
| FU19 | 10A | Fuse, fuel filler pump |
| FU20 | 15A | Fuse, diesel heater and air conditioning, Remote welcome lights, Volvo Co-Pilot |
| FU21 | 10A | Fuse, hydraulic system, control lockout lever |
| FU22 | 15A | Fuse, ECM power |
| FU23 | 10A | Fuse, working light, counterweight |
| FU24 | 15A | Fuse, ignition key, IC (Instrument Cluster), HMICU |
| FU25 | 10A | Fuse, CareTrack W-ECU |
| FU26 | 10A | Fuse, windscreen wiper |
| FU27 | 10A | Fuse, low beam |
| FU28 | 20A | Fuse, working lights boom |
| FU29 | 10A | Fuse, connector special applications 2 |
| FU30 | 15A | Fuse, ACM power (Battery +) |
| FU31 | 10A | Fuse, ACM / HMICU after ignition key |
| FU32 | 10A | Fuse, wiper and horn |
| FU33 | 10A | Fuse, interior light, voltage converter, radio |
| FU34 | 10A | Fuse, 24V power supply switches |
| FU35 | 15A | Fuse, head lights, stop light trailer |
| FU36 | 10A | Fuse, position light right, license plate |
| FU37 | 10A | Fuse, connector special applications 1 |
| FU38 | 10A | Fuse, tiltrotator, control pattern changer |
| FU90 | 5A | Fuse, Volvo Co-Pilot |
| FU99 | 7.5A | Fuse, Volvo Co-Pilot |
| RE01 | Relay working lights, counterweight | |
| RE02 | Windscreen wiper relay, lower | |
| RE03 | Relay working lights, cab rear | |
| RE04 | Horn relay | |
| RE05 | Relay working lights, cab front | |
| RE06 | Diesel heater and air conditioning relay | |
| RE07 | Spare | |
| RE08 | Relay working lights, boom | |
| RE09 | Windscreen wiper relay, upper | |
| RE10 / SP | Trailer stop light relay | |
| RE11 | Relay Remote welcome lights | |
| RE12 | Pilot pressure control relay (control lockout) | |
| RE13 | Main relay 2 (15) | |
| RE14 | Main relay 1 (CBAT) | |
| RE2501 | Preheating relay, induction air | |
| RE3533 | Remote welcome lights timer relay | |
| RF3601 | Flasher relay |
Fuses close to the batteries:
| Fuse/Relay N° | Rating | Functions |
| FC02 | 80A | Main fuse for Electric distribution box |
| FC03 | 20A | Fuse, auxiliary heater |
Fuse on the engine:
| Fuse/Relay N° | Rating | Functions |
| FU2501 | 150A | Fuse, Preheater induction air |
