GMC Acadia 2025 Fuse Box

GMC Hits: 213

GMC Acadia 2025 Fuse Box Info

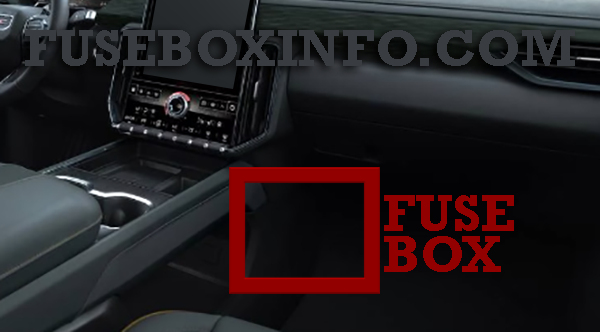

Passenger compartment fuse box location:

The fuse box is located inside the center console on the passenger side of the vehicle.

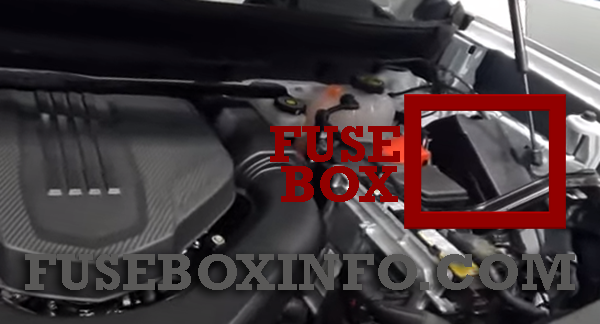

Engine compartment fuse box location:

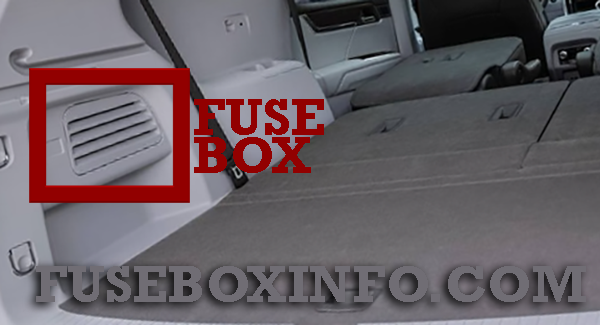

Luggage compartment fuse box location:

The fuse box is located on the driver side of the rear storage compartment.

Fuse Box Diagram | Layout

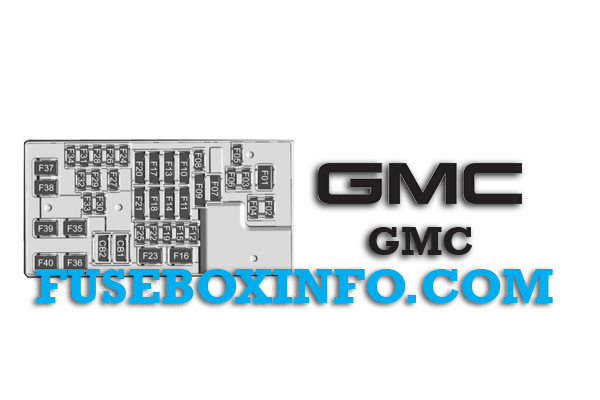

Passenger compartment fuse box:

Fuse/Relay N°	Functions
1	BLOWER MOTOR
2	ELM 1 – Exterior Lighting Module 1
3	SCL – Steering Column Lock
4	ELM 2 – Exterior Lighting Module 2
5	BCM 2 – Body Control Module 2
6	OHC – OnStar Hands-Free Calling
7	STEERING WHEEL CONTROL
8	TELEMATICS
9	BCM BATT 1 & ETS SHIFTER – Body Control Module Battery 1 and Euro Truck Shifter
10	UGDO – Universal Garage Door Opener Spare
11	HVAC & TPIM_HUD – Heating, Ventilation, and Air Conditioning and Traction Power Inverter Module
12	STEERING COLUMN LOCK
13	CGM & DLC – Central Gateway Module and Data Link Connector
14	EBCM & PCM – Electronic Brake Control Module and Power Control Module
15	AUX DISPLAY
16	APO_RR_CARGO – Auxiliary Power Outlet_Rear_Cargo
17	SDM_AOS – Sensing Diagnostic Module_Automatic Occupant Sensor Spare
18	SEAT FAN CTR/HDLP CO & DR – Seat Fan Control Headlamp CO and Driver
19	ELM RC – Exterior Lighting Module Ride Control
20	VKM – Virtual Key Module Spare
21	VCU_BATT 1 & 2 – Virtual Cockpit Unit Battery 1 and 2
22	SDM – Sensing Data Module
23	-
24	WCM – Wireless Charging Module
25	HVPO – High Voltage Power Outlet
26	Spare
27	AUX
28	LRR – Long Range Radar
29	SRR – Short Range Radar
30	-
31	BCM 3 – Body Control Module 3
32	HSWM – Heated Steering Wheel Module
33	-
34	CPM – Column Position Module
35	AMPLIFIER
36	DC/DC BATT 2 – Direct Current/Direct Current Battery 2
37	BCM 4 – Body Control Module 4
38	AMPLIFIER 2
39	ELM 6 – Exterior Lighting Module 6
40	DCAC – Direct Current Alternating Current

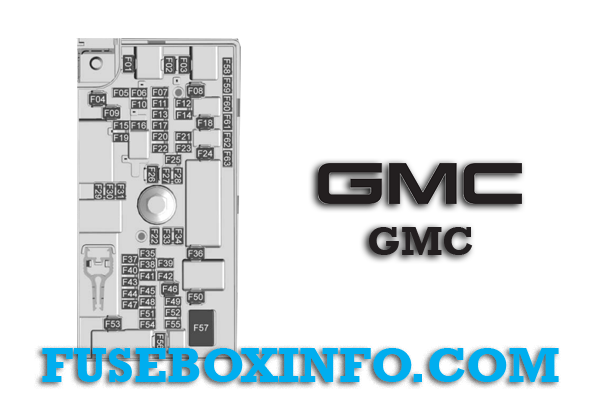

Engine compartment fuse box:

Fuse/Relay N°	Functions
1	Spare
2	Spare
3	FRT_WIPER – Front Wiper
4	Spare
5	Spare
6	HDLP RT – Headlamp Right
7	RR_WIPER – Rear Wiper
8	Spare
9	RR DEFOG – Rear Defog
10	ELM_4 – Exterior Lighting Module 4
11	HDLP LT – Headlamp Left
12	HORN
13	Spare
14	Spare
15	Spare
16	RR_WPR_CTRL – Rear Wiper Control
17	RLY COIL GND – Relay Coil Ground
18	DC DC BATT1 – Direct Current Direct Current Battery 1
19	ELM7 – Exterior Lighting Module 7
20	Spare
21	Spare
22	ELM_5 – Exterior Lighting Module 5
23	WIPER_DE_ICE
24	EBCM1 – Electronic Brake Control Module 1
25	ELM_3 – Exterior Lighting Module 3
26	Spare
27	TRLR_LTP_TRN_LT – Trailer Lamp Turn Left
28	TRLR_LTP_TRN_RT – Trailer Lamp Turn Right
29	WASH
30	AERO SHUTTER
31	Spare
32	PCM – Power Control Module
33	Spare
34	Spare
35	PCM – Power Control Module
36	STRTR MTR – Starter Motor
37	AC CLUTCH GAS – Alternating Current Clutch Gas
38	SOL CP_TURBO BYPASS – Solenoid Turbo Bypass
39	COIL ODD
40	Spare
41	B721_B70_M674
42	Spare
43	Spare
44	Spare
45	Spare
46	Spare
47	Spare
48	Spare
49	Spare
50	E-PHASER – Electronic Phaser
51	Spare
52	PCM – Power Control Module 2
53	Spare
54	AIR_PUMP
55	Spare
56	STRTR PINION – Starter Pinion
57	WATER PUMP

Luggage compartment fuse box:

Fuse/Relay N°	Functions
1	RR_BLOW – Rear Blow
2	DSP_CODR – Door Switch Panel_Code
3	TAILGATE
4	TRLR_BAT1 – Trailer Battery 1
5	ACP2 – AWD Control Processor 2
6	PWR_FOLD_SEAT_L_R – Power Fold Seat Left and Rear
7	DSP – Door Switch Panel
8	Spare
9	LAMPS_RT – Right Lamps
10	Spare
11	Spare
12	ELM 2 – Exterior Lighting Module 2
13	LAMPS_LT – Left Lamps
14	SP_DRVR – Driver
15	MSM_DRIVER – Memory Seat Module Driver
16	MTR PFTS_ROW2_L
17	FRT – Front
18	SBP_CO_DRIVER
19	MTR PFTS_ROW2_R
20	Spare
21	RFA – Remote Function Actuator
22	Spare
23	Spare
24	Spare
25	Spare
26	CANISTER
27	UPA – Universal Park Assist
28	RDCM – Right Door Control Module
29	SBZA – Side Blind Zone Assist
30	TRLR_PRK_LMP – Trailer Park Lamp
31	FCM – Front Camera Module
32	Spare
33	ROW2_BAT1 – Second Row Battery 1
34	Spare
35	Spare
36	ROW2_BAT2 – Second Row Battery 2
37	Spare
38	Spare
39	Spare
40	TRLR_BACK_UP
41	Spare
42	DSP – Door Switch Panel
43	POWER FOLD SEAT SW/N 3_ROW
44	OUT_OF_PARK_DISABLE
45	TRAILER_BRAKE
46	ACP3 – AWD Control Processor 3
47	FTZM – Fuel Tank Zone Module
48	SP_PASS
49	Spare
50	ELM 1 – Exterior Lighting Module 1
51	FRT_BAT2 – Front Battery 2
52	Spare
53	Spare
54	ROW2_FOLD_RH – Second Row Right-hand Fold
55	ROW3 – Third Row
56	SUNROOF
57	RDCM – Right Door Control Module
