Volvo S60 2004 Fuse Box Diagram

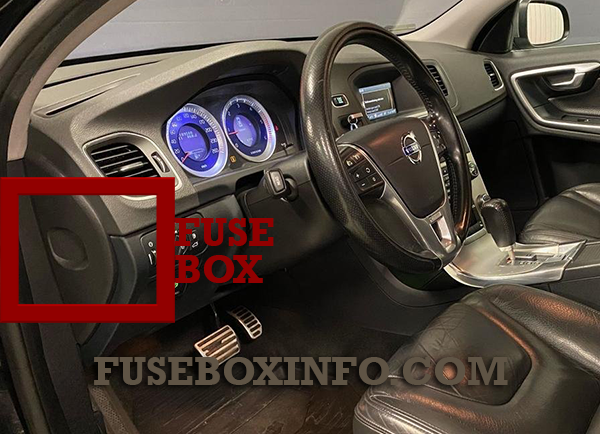

Fuse box location:
The fuses plus several spare fuses are located inside the panel on the end of the dashboard. This fuse box contains 38 fuse positions.
Engine compartment fusebox:
This fuse box contains 24 fuse positions.
Cargo compartment fusebox:
This fuse box contains 18 fuse positions.
Fuse Box Diagram | Layout
Engine compartment fusebox:
| Fuse N° | Rating | Functions |
| 1 | 25 A | Parking heater (option) |
| 2 | 20 A | Auxiliary lamps (option) |
| 3 | - | |
| 4 | 20 A | Lambda sensors, engine control module (diesel), high-pressure valve (diesel) |
| 5 | 10 A | Crankcase ventilation heater, solenoid valves Fuel valve (Bi-Fuel) |
| 6 |
15 A 5 A |
Mass air flow sensor, engine control module, injectors Mass air flow sensor (diesel) |
| 7 | 10 A | Throttle module |
| 8 | 10 A | AC compressor, accelerator pedal position sensor, E-box fan |
| 9 | 15 A | Horn |
| 10 | - | |
| 11 | 20 A | A/C compressor, ignition coils, solenoid valves (diesel) |
| 12 | 5 A | Brake light contact |
| 13 | 25 A | Windscreen wipers |
| 14 | 30 A | ABS/STC/DSTC |
| 15 | 15 A | Gas tank valve (Bi-Fuel) |
| 16 | 15 A | Windscreen washers, headlamp washers |
| 17 | 10 A | Dipped beam (right) |
| 18 | 10 A | Dipped beam (left) |
| 19 | 30 A | ABS/STC/DSTC |
| 20 | 15 A | Main beam (left) |
| 21 | 15 A | Main beam (right) |
| 22 | 40 A | Starter motor |
| 23 | 5 A | Engine control module |
| 24 | - |
Passenger compartment fusebox:
| Fuse N° | Rating | Functions |
| 1 | 15 A | Headlamps (dipped beam), Bi-Xenon (option) |
| 2 | 20 A | Headlamps (main beam) |
| 3 | 30 A | Power driver’s seat |
| 4 | 30 A | Power passenger seat |
| 5 | 15 A | Speed-dependent power steering, vacuum pump |
| 6 | 5 A | Gas tank valve (Bi-Fuel) |
| 7 | 15 A | Heated seat (front left) |
| 8 | 15 A | Heated seat (front right) |
| 9 | 5 A | ABS/STC/DSTC |
| 10 | - | - |
| 11 | - | - |
| 12 | 15 A | Headlamp levelling, headlamp wipers |
| 13 | 15 A | Electric socket 12V |
| 14 | 5 A | Power passenger seat |
| 15 | 5 A | Audio, RTI (option) |
| 16 | 20 A | Audio |
| 17 | 30 A | Amplifier |
| 18 | 15 A | Fog lamps (front) |
| 19 | 10 A | RTI-display (option) |
| 20 | - | - |
| 21 | 10 A | Extended D2 feed: automatic gearbox, shiftlock |
| 22 | 20 A | Direction indicators |
| 23 | 5 A | Light switch module, climate control unit, diagnostic socket, steering wheel lever control unit |
| 24 | 10 A | Extended D1-feed, climate control system, power seat (driver), combined instrument panel, parking heater (option) |
| 25 | 10 A | Ignition switch (30-feed), Central Electronic Module, relay starter motor, engine control module |
| 26 | 30 A | Climate control system fan |
| 27 | 15 A | Active chassis FOUR-C |
| 28 | 10 A | Electronic module (roof), interior lighting (ceiling) |
| 29 | 10 A | Telephone (option) |
| 30 | 7.5 A | Position/parking lamps (left - front and rear) |
| 31 | 7.5 A | Position/parking lamps (right - front and rear), numberplate lighting |
| 32 | 10 A | Central electronic module, vanity mirror lighting, power steering, general lighting, glovebox lighting |
| 33 | 15 A | Fuel pump |
| 34 | 15 A | Sunroof |
| 35 | 25 A | Central locking, power window, door mirror (front left) |
| 36 | 25 A | Central locking, power window, door mirror (front right) |
| 37 | 30 A | Power windows (rear), child safety lock |
| 38 | 5 A | Alarm siren |
Cargo compartment fusebox:
| Fuse N° | Rating | Functions |
| 1 | 10 A | Rear Electronic Module (REM), lighting (cargo compartment) |
| 2 | 10 A | Rear fog lamps |
| 3 | 15 A | Brake light |
| 4 | 10 A | Reversing lamp |
| 5 | 5 A | Rear window defroster, relay 15I-feed (rear) |
| 6 | 10 A | Tailgate opening |
| 7 | 10 A | Folding head restraints |
| 8 | 15 A | Rear door locks, fuel filler flap |
| 9 | 15 A | Towbar (30 feed) |
| 10 | 10 A | CD changer (option), RTI (option) |
| 11 | 15 A | Accessory Electronic Module - AEM (option) |
| 12 | - | - |
| 13 | - | - |
| 14 | 7.5 A | Brake light |
| 15 | 20 A | Towbar (15I feed) |
| 16 | 15 A | Electric socket, cargo compartment (option) |
| 17 | 7.5 A | Heated fuel filter (diesel) Control module, all-wheel drive (AWD cars) |
| 18 | 15 A | Heated fuel filter (diesel) |
