Suzuki Celerio 2015 Fuse Box Info

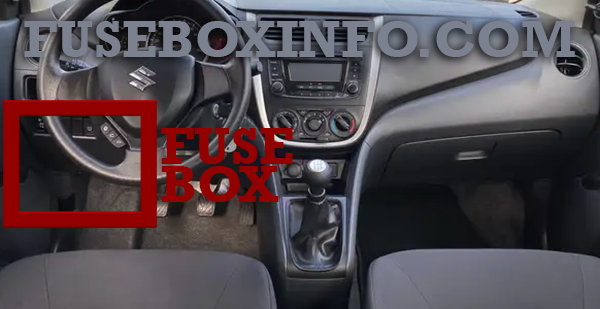

Passenger compartment fuse box location:
The interior fuse box is under the dashboard on the driver’s side.

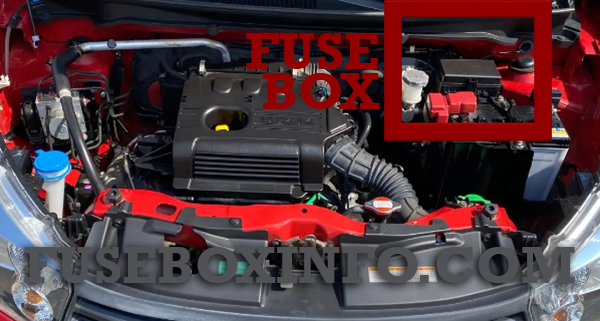

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 10A | Stop light |
| 2 | 30A | Blower motor |
| 3 | 10A | ST SIG |
| 4 | 15A | Accessory |
| 5 | 10A | Rear fog light |
| 6 | 10A | Tail light |
| 7 | 10A | Back-up light |
| 8 | 10A | ABS |
| 9 | 10A | Meter |
| 10 | 15A | Ignition coil |
| 11 | 20A | Wiper/Washer |
| 12 | 10A | IG2 SIG |
| 13 | 10A | IG1 SIG |
| 14 | 10A | Air bag |
| 15 | 20A | Power window timer |
| 16 | 20A | Door lock |
| 17 | 15A | Horn/Hazard |
| 18 | 20A | Rear defogger |
| 19 | 15A | Dome |
| 20 | 30A | Power window |
| 21 | - | Blank |
| 22 | - | Blank |
| 23 | - | Blank |
| 24 | - | Blank |
Engine compartment fuse box (Main fuses/Fuse box):
| Fuse/Relay N° | Rating | Functions |
| 1 | 80A | FL1 |
| 2 | 50A | FL5 |
| 3 | 50A | FL4 |
| 4 | - | Blank |
| 5 | - | Blank |
| 6 | - | Blank |
| 7 | - | Air compressor relay |
| 8 | - | Blank |
| 9 | - | F/P relay |
| 10 | 40A | ABS motor |
| 11 | - | Blank |
| 12 | 40A | Power steering |
| 13 | - | Blank |
| 14 | 20A | CVT |
| 15 | 30A | Ignition switch |
| 16 | 10A | Air compressor |
| 17 | 15A | FI |
| 18 | - | Blank |
| 19 | 15A | Headlight (Right) |
| 20 | 25A | ABS control module |
| 21 | 15A | Headlight (Left) |
| 22 | 30A | Starting motor |
| 23 | 30A | Radiator fan |
| 24 | - | FI main relay |
| 25 | - | Starting motor relay |
| 26 | - | Radiator fan relay |
| 27 | 80A | FL3 |
| 28 | 80A | FL2 |
