Suzuki Ertiga 2022 Fuse Box Info
Passenger compartment fuse box location:

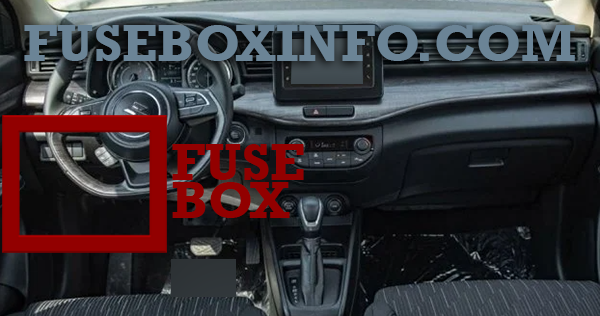

The interior fuse box is under the dashboard on the driver’s side (LHT).

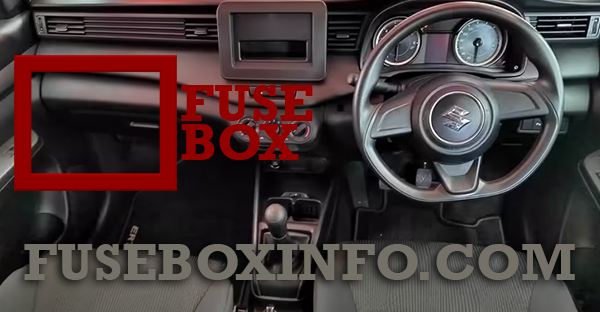

The interior fuse box is behind the glove box on the passinger’s side (RHT).

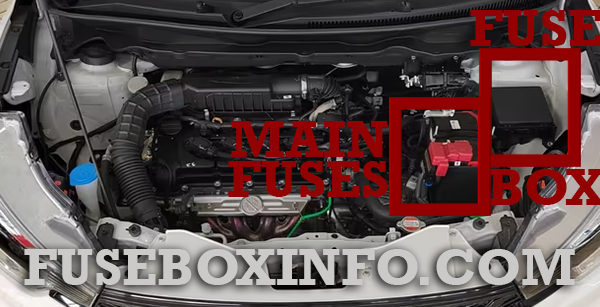

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 30A | Power window |
| 2 | 10A | Meter |
| 3 | 15A | Ignition coil |
| 4 | 5A | gnition-1 signal 2 |
| 5 | 20A | Shift lever |
| 6 | 20A | S/R |
| 7 | - | Blank |
| 8 | 20A | DOOR LOCK |
| 9 | 15A | Steering lock |
| 10 | 10A | Hazard |
| 11 | 5A | A-STOP |
| 12 | 10A | RR FOG |
| 13 | 5A | ABS control module |
| 14 | 15A | REAR A/C |
| 15 | 5A | IG1 SIG3 |
| 16 | 10A | Dome light-2 |
| 17 | 5A | Dome light |
| 18 | 15A | Radio |
| 19 | 5A | CONT |
| 20 | 5A | KEY2 |
| 21 | 20A | Power window timer |
| 22 | 5A | KEY |
| 23 | 15A | Horn |
| 24 | 5A | Tail light (Left) |
| 25 | 10A | Tail light |
| 26 | 10A | Airbag |
| 27 | 10A | Ignition-1 signal |
| 28 | 10A | Back up light |
| 29 | 5A | - |
| 30 | 20A | Rear defogger |
| 31 | 10A | - |
| 32 | 15A | ACC2 |
| 33 | 5A | ACC |
| 34 | 10A | Wiper |
| 35 | 5A | Ignition-2 signal |
| 36 | 15A | Washer |
| 37 | 25A | Front wiper |
| 38 | 10A | Stop light |
Engine compartment fuse box (Main fuses/Fuse box):
| Fuse/Relay N° | Rating | Functions |
| 1 | - | Blank |
| 2 | 100A | FL2 |
| 3 | 80A | FL3 |
| 4 | 100A | FL4 |
| 5 | 50A | FL5 |
| 6 | 200A | FL6 |
| 7 | 30A | Starting motor |
| 8 | 30A | Blower fan |
| 9 | - | Blank |
| 10 | 40A | ABS motor |
| 11 | 40A | Ignition switch |
| 12 | 30A | Back up |
| 13 | 5A | ISG B |
| 14 | 20A | Front fog light |
| 15 | - | Blank |
| 16 | 25A | ABS SOL |
| 17 | - | Blank |
| 18 | 10A | Compressor |
| 19 | 30A | Blank |
| 20 | 30A | Radiator fan |
| 21 | - | Blank |
| 22 | - | Blank |
| 23 | 25A | Headlight HI |
| 24 | 15A | Headlight (Left) |
| 25 | 15A | Headlight (Right) |
| 26 | 20A | Blank |
| 27 | 50A | Ignition switch -2 |
| 28 | 15A | Transmission |
| 29 | 15A | FI |
| 30 | - | Blank |
| 31 | 15A | Headlight HI (Left) |
| 32 | 15A | Headlight HI (Right) |
| 33 | 5A | Starting Signal |
| 34 | - | Blank |
