Subaru Forester 2011 Fuse Box Info

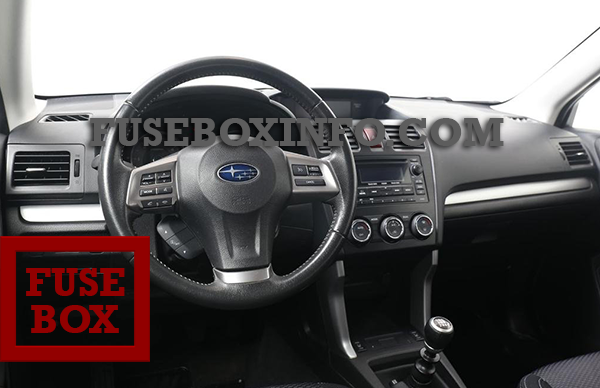

Fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

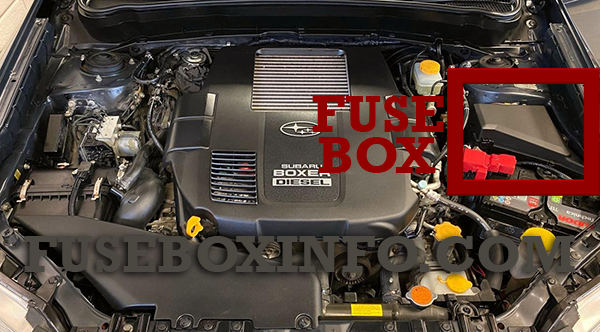

Engine compartment fuse box:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 20A | Trailer |
| 2 | - | - |
| 3 | 15A | Door locking |
| 4 | 10A | Front wiper deicer relay |
| 5 | 10A | Combination meter |
| 6 | 7.5A | Remote control rear view mirrors, Seat heater relay |
| 7 | 15A | Combination meter, Integrated unit |
| 8 | 20A | Stop light |
| 9 | 15A | Front wiper deicer |
| 10 | 7.5A | Power supply (battery) |
| 11 | 7.5A | Turn signal unit, Clock |
| 12 | 15A | Automatic transmission unit, Engine control unit, Integrated unit |
| 13 | 20A | Accessory power outlet (center console) |
| 14 | 15A | Position light, Tail light, Rear combination light |
| 15 | - | (FWD connector for AWD AT vehicles) |
| 16 | 10A | Illumination |
| 17 | 15A | Seat heaters |
| 18 | 10A | Back-up light |
| 19 | - | - |
| 20 | 10A | Accessory power outlet (instrument panel) |
| 21 | 7.5A | Starter relay |
| 22 | 15A | Air conditioner, Rear window defogger relay coil |
| 23 | 15A | Rear wiper, Rear window washer |
| 24 | 15A | Audio unit, Clock |
| 25 | 15A | SRS airbag system |
| 26 | 7.5A | Power window relay, Radiator main fan relay, Tail and illumination relay |
| 27 | 15A | Blower fan |
| 28 | 15A | Blower fan |
| 29 | 15A | Fog light |
| 30 | 30A | Front wiper |
| 31 | 7.5A | Auto air conditioner unit, Integrated unit |
| 32 | - | - |
| 33 | 7.5A | ABS/Vehicle dynamics control unit |

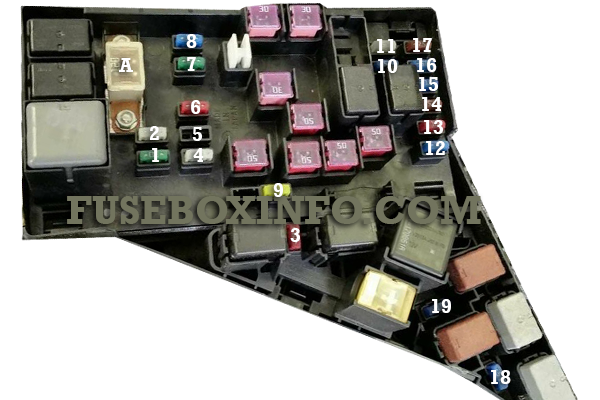

Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 30A | ABS unit, Vehicle dynamics control unit |
| 2 | 25A | Main fan (cooling fan) |
| 3 | 10A | Secondary air combination valve (turbo models) |
| 4 | 25A | Sub fan (cooling fan) |
| 5 | - | - |
| 6 | 10A | Audio |
| 7 | 30A | Headlight (low beam) |
| 8 | 15A | Headlight (high beam) |
| 9 | 20A | Back-up |
| 10 | 15A | Horn |
| 11 | 25A | Rear window defogger, Mirror heater |
| 12 | 15A | Fuel pump |
| 13 | 10A | Automatic transmission control unit |
| 14 | 7.5A | Engine control unit |
| 15 | 15A | Turn and hazard warning flasher |
| 16 | 15A | Tail and illumination relay |
| 17 | 7.5A | Alternator |
| 18 | 15A | Headlight (right hand) |
| 19 | 15A | Headlight (left hand) |
