Porsche Panamera 2010 Fuse Box Info
Passenger compartment fuse box location:

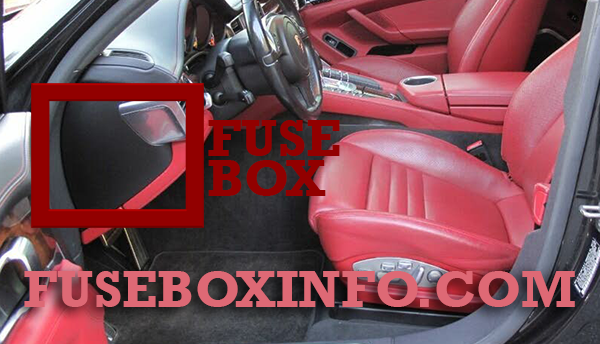

The instrument panel fuse box is located on the end of the instrument panel on the driver’s side of the vehicle.

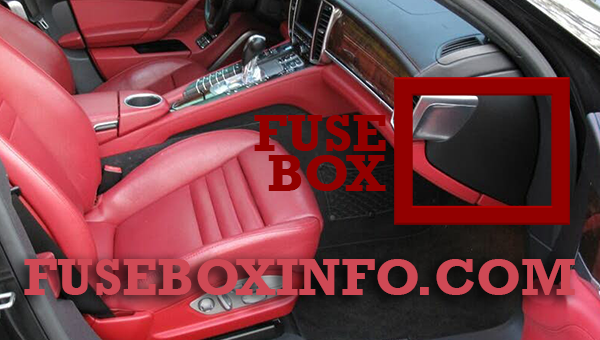

The instrument panel fuse box is located on the end of the instrument panel on the passenger’s side of the vehicle.

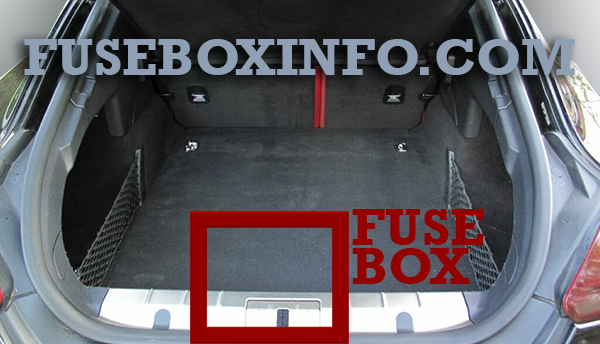

Luggage compartment fuse box location:
The luggage compartment fuse box is located under the floor panel and the tool kit.
Fuse Box Diagram | Layout
Passenger compartment fuse box (Left Side):
| Fuse/Relay N° | Rating | Functions |
| 1 | 7.5A | Steering column switch |
| 2 | 7.5A | Instrument duster |
| 3 | 10A | PCM 3.1/CDR 31 |
| 4 | 5A | Additional instrument |
| 5 | 10A | Air conditioning, front + rear |
| 6 | 5A | Rear view camera |
| 7 | 5A | Electric parking brake button |
| 8 | 10A | Central locking for rear left door (Left-hand drive), Central locking for left doors (Right-hand drive) |
| 9 | 15A | Steering column adjustment (Left-hand drive) |
| 10 | 25A | PDK control unit (Left-hand drive) |
| 11 | 25A | Power windows, rear left |
| 12 | 25A | Power windows, front left |
| 13 | 5A | ParkAssist |
| 14 | 15A | Xenon headlight, left |
| 15 | 5A | Interior mirror, Diagnostic socket |
| 16 | 5/10A | PDK control unit, clutch sensor (Left-hand drive), Air conditioning, sun sensor (Right-hand drive) |
| 17 | 5A | - |
| 18 | 5A | - |
| 19 | 5A | - |
| 20 | 5A | Ignition lock control unit, light switch (Left-hand drive), TV tuner (Right-hand drive) |
| 21 | 10A | Central locking for front left door (Left-hand drive), Mobile phone charger (Right-hand drive) |
| 22 | 5A | Steering column lock |
| 23 | 30A | (Left-hand drive): Turn signal, rear right, Marker light, front left, Low beam headlight, right, High beam headlight, right, Side direction indicators, front, Cornering light, front left, Ignition lock, Two-tone horns, PSM, Starter relay, Emergency flasher switch LED, Ignition lock lighting, Turn signal, front left/right, Footwell lights, Ignition lock anti-removal lock, Power steering control valves, Heatable washer jets |
| 24 | 30A | (Left-hand drive): Turn signal, rear left, Marker light, front right, Low beam headlight, left, High beam headlight, left, Cornering light front right, Shutter elements, right/left, Active brake ventilation open/closed, Heatable washer jets, Engine compartment lid, Headlight beam adjustment |
| 25 | 15A | (Left-hand drive): Steering column lock, Filler flap closed/open, Windshield washer pump, front/rear |
| 26 | 30A | Headlight cleaning system (Left-hand drive) |
| 27 | 15A | Ignition coils |
| 28 | 15A | - |
| 29 | 7.5A | Oil level sensor, camshaft sensor |
| 30 | 7.5A | Oxygen sensors behind catalytic converter |
| 31 | 15A | Electric control valves for engine |
| 32 | 20A | Engine control unit |
| 33 | 10A | Fan activation, tank leakage detection |
| 34 | 10A | Valves for engine |
| 35 | 10A | Oxygen sensors ahead of catalytic converter |
| 36 | - | - |
| 37 | - | - |
| 38 | 20A | Front cigarette lighter, luggage compartment socket |
| 39 | 30A | Seat adjustment front left without memory |
| 40 | 20A | Sockets in center console, glove box (Right-hand drive) |
| 41 | 10A | PSM control unit |
| 42 | 7.5A | Interior light in overhead console |
| 43 | - | - |
| 44 | - | - |
| 45 | - | - |
| 46 | - | - |
| 47 | 30A | Slide/tilt roof |
| 48 | 30A | Windshield wipers |
| 49 | 5A | Engine control unit |
| 50 | - | - |
| 51 | 30A | Seat adjustment front left with memory |
| 52 | 20A | Seat adjustment, rear left |
| 53 | 10A | Circulating pump |
| 54 | 5A | Rain sensor |
| 55 | - | - |
| 56 | - | - |
| 57 | 40A | Air-conditioning system fan |
Passenger compartment fuse box (Right Side):
| Fuse/Relay N° | Rating | Functions |
| 1 | 5A | Tire Pressure Monitoring control unit |
| 2 | - | - |
| 3 | 30A | Seat heating, front |
| 4 | 30A | Seat heating, rear |
| 5 | 20A | Seat adjustment, rear right |
| 6 | - | - |
| 7 | - | - |
| 8 | 30A | Seat adjustment front right with memory |
| 8 | 5A | Electric parking brake button (Right-hand drive) |
| 10 | 5/15A | Handset, mobile phone charger (Left-hand drive), Steering column adjustment (Right-hand drive) |
| 11 | 5/25A | TV tuner (Left-hand drive), PDK control unit (Right-hand drive) |
| 12 | 5A | Telephone (Left-hand drive) |
| 13 | - | - |
| 14 | 15A | Xenon headlight right |
| 15 | - | - |
| 16 | 5A | Diagnostic socket (Right-hand drive) |
| 17 | 5A | PSM control unit |
| 18 | 5A | Air conditioning, sun sensor (Left-hand drive), PDK control unit clutch sensor (Right-hand drive) |
| 19 | 10A | Garage door opener |
| 20 | 7.5A | Airbag control unit |
| 21 | - | - |
| 22 | 5A | Steering column switch |
| 23 | 5A | Adaptive cruise control (ACC) |
| 24 | 7.5A | Seat ventilation, front seats |
| 25 | 7.5A | Seat ventilation, rear seats |
| 26 | - | - |
| 27 | 20A | Center console socket front, cigarette lighter rear |
| 28 | 30A | Seat adjustment front right without memory |
| 29 | 20A | Socket in center console rear, socket in glove box, socket in large center console rear (Left-hand drive) |
| 30 | - | - |
| 31 | 15A | Cool box |
| 32 | 7.5A | Rear Seat Entertainment |
| 33 | 30A | (Right-hand drive): Turn signal, rear right, Marker light, front left, Low beam headlight, right, High beam headlight, right, Side direction indicators, front, Cornering light, front left, Ignition lock, Two-tone horns, PSM, Starter relay, Emergency flasher switch LED, Ignition lock lighting, Turn signal, front left/right, Footwell lights, Ignition lock anti-removal lock, Power steering control valves, Heatable washer jets |
| 34 | 30A | (Right-hand drive): Turn signal, rear left, Marker light, front right, Low beam headlight, left, High beam headlight, left, Cornering light, front right, Shutter elements, right/left, Active brake ventilation open/closed, Heatable washer jets, Engine compartment lid, Headlight beam adjustment |
| 35 | 15A | (Right-hand drive): Steering column lock, Filler flap closed/open, Windshield washer pump, front/rear |
| 36 | 30A | Headlight cleaning system (Right-hand drive) |
| 37 | - | - |
| 38 | - | - |
| 39 | 25A | PSM control unit |
| 40 | 10A | Central locking for front/rear right door (Right-hand drive) |
| 41 | 25A | Power windows, front right |
| 42 | 25A | Power windows, rear right |
| 43 | 5A | Alarm horn |
| 44 | 5A | Vehicle Tracking System VTS |
| 45 | - | - |
| 46 | - | - |
| 47 | 25A | Fuel pump control unit |
| 48 | 15A | Horn (two-tone horns) |
| 49 | 5A | Diagnostic socket |
| 50 | 5A | Ignition lock control unit, light switch (Right-hand drive) |
| 51 | 10A | Central locking for front right door (Right-hand drive) |
| 52 | 5A | Steering column lock (Right-hand drive) |
| 53 | - | - |
| 54 | - | - |
| 55 | - | - |
| 56 | - | - |
| 57 | 40A | PSM pump control unit |
Luggage compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| Fuse panel A (left) | ||
| 1 | - | - |
| 2 | - | - |
| 3 | 30/25A | Audio amplifier (Burmester), Audio amplifier (ASK Sound, Bose) |
| 4 | 30A | Start/Stop control unit |
| 5 | 30A | Start/Stop control unit |
| 6 | 10A | Differential lock |
| 7 | 30A | Differential lock |
| 8 | 30A | Subwoofer (Bose, Burmester) |
| 9 | 25A | Powerlift tailgate |
| 10 | 25A | PASM control unit |
| 11 | 25A | Luggage compartment lights |
| 12 | 10A | PDCC control unit |
| Fuse panel B | ||
| 1 | 15A | Daytime driving lights, right, Tail light, right, Reversing light, right, Rear fog light, left, Brake light, right, Raised brake light, Sun blind, Electric steering column lock, Rear wiper, Heated rear window, Interior surveillance/inclination sensor, PASM, Engine control unit, Safety/curb lights, front doors, Interior light/reading light front, Interior light rear, Orientation light, Licence plate light, Engine speed hall senders 1+3, Interior light |
| 2 | 15A | Daytime driving lights, left, Tail light, left, Reversing light, left, Rear fog light, right, Brake light, left, Safety/curb lights, rear doors, Exhaust flap control, Filler flap dosed, Extend/retract spoiler |
| 3 | 30A | Tailgate closing mechanism, Filler flap open, Retract/extend rear spoiler, Sun blind |
| 4 | 15A | Alarm horn |
| 5 | 5A | Gateway control unit |
| 6 | 20A | Heated rear window |
| 7 | 5A | PASM control unit |
| 8 | 5A | Gateway control unit |
| 9 | 5A | Electric parking brake |
| 10 | 10A | Differential lock |
| 11 | 10A | PDCC control unit |
| Fuse panel C | ||
| 1 | 40A | PASM compressor |
| 2 | 40A | Electric parking brake |
| 3 | - | - |
| Relay panel D | ||
| 1 | - | Heated rear window |
| 2 | - | - |
| 3 | - | Spoiler flap (Turbo) |
| 4 | - | Spoiler flap (Turbo) |
| 5 | - | PASM compressor |
| 6 | - | - |
| Fuse panel E | ||
| - | 5A | Standard audio amplifier |
| - | 25A | ASK Sound, Bose audio amplifier |
| - | 30A | Burmester® audio amplifier |
