Mercedes-Benz C-Class 2007 Fuse Box Info
Passenger compartment fuse box location:
The instrument panel fuse box is located on the end of the instrument panel on the driver’s side of the vehicle.

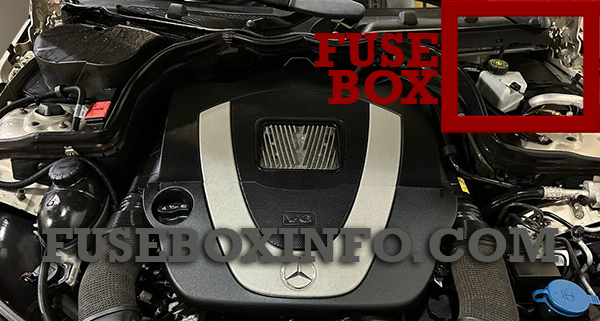

Engine compartment fuse box location:
Luggage compartment fuse box location:

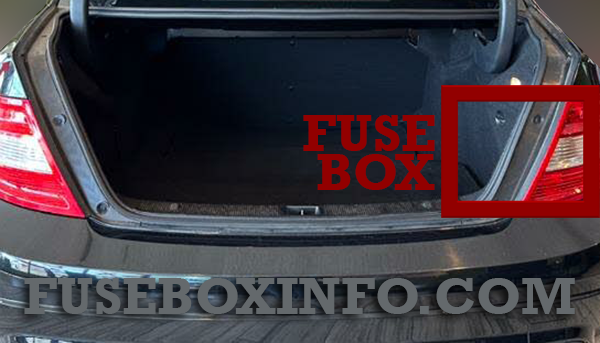

The luggage compartment fuse box is located on the right side of the trunk, behind a cover.
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 116 | 30A | Driver seat control unit |
| 117 | 15A | Adaptive damping system control unit |
| 118 | - | Spare |
| 119 | 7.5A | Rear blower motor |
| 120 | - | Spare |
| 121 | - | Spare |
| 122 | - | Spare |
| 123 | 10A | Steering column tube module control unit |
| 124 | - | Spare |
| 125 | - | Spare |
| 126 | 30A | Front passenger seat control unit |
| 127 | - | Spare |
| 128 | - | Spare |
| 129 | 30A | Valid for engine 156: Oil cooler fan motor relay |
| 130 | - | Spare |
| 131 | - | Spare |
| 132 | - | Spare |
| 133 | - | Spare |
| 134 | - | Spare |
| 135 | - | Spare |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 25A | Electronic Stability Program control unit |
| 2 | 30A | Left front door control unit |
| 3 | 30A | Right front door control unit |
| 4 | 7.5A | Fuel pump control unit, Left fuel pump control unit, Right fuel pump control unit, Valid for engine 642, engine 651: Fuel filter condensation sensor with heating element |
| 5 | 7.5A | Exterior lights switch |
| 6 | 10A | Valid for diesel engine: ME-SFI [ME] control unit, Valid for gasoline engine: CDI control unit |
| 7 | 20A | Starter |
| 8 | 7.5A | Supplemental restraint system control unit |
| 9 | 15A | Glove compartment power outlet |
| 10 | 30A | Wiper motor |
| 11 | 7.5A | Audio/COMAND display, Audio/COMAND control panel, Holder for navigation module |
| 12 | 7.5A | Automatic air conditioning control and operating unit, Upper control panel control unit |
| 13 | 7.5A | Steering column module control unit, Multifunction camera |
| 14 | 7.5A | Electronic Stability Program control unit |
| 14 | 20A | Headlamp control unit |
| 15 | 7.5A | Supplemental restraint system control unit |
| 16 | 5A | Mobile phone electrical connector, Valid for transmission 722: Electronic selector lever module control unit |
| 16 | 20A | ECO start/stop function: Electric transmission oil pump |
| 17 | 30A | Panoramic sliding roof control module, Overhead control panel control unit |
| 18 | 7.5A | Exterior lights switch, Valid for model 204.0/2, model 204.3: Upper control panel control unit, Valid for model 204.0/2, model 204.9: Instrument panel climate control LIN positive line connector sleeve, Vehicle interior and harness for taillamp electrical connector |
| 19 | 20A | Electric steering lock control unit, Electronic ignition lock control unit |
| 20 | 40A | Electronic Stability Program control unit |
| 21 | 7.5A | Stop lamp switch, Glove compartment lamp switch, Front passenger seat occupied recognition and ACSR, Electronic Toll Collection preinstallation electrical fuse (Japan) |
| 22 | 15A | Combustion engine fan motor and air conditioning with integrated control, Electrical connector for interior harness and engine wiring harness |
| 23 | 20A | Electrical connector for interior harness and engine wiring harness. Valid for diesel engine: Rear SAM control unit with fuse and relay module, CDI control unit, Terminal 87 connector sleeve, Valid for engine 271: Terminal 87 M1e connector sleeve, Valid for engine 272: Circuit 87 M1i connector sleeve |
| 24 | 15A | Electrical connector for interior harness and engine wiring harness Interior and engine wiring harness electrical connector, Valid for engine 642: Radiator shutters actuator, Valid for engine 272: Terminal 87 M1e connector sleeve, Valid for diesel engine: Terminal 87 connector sleeve, Valid for engine 646: CDI control unit |
| 25 | 15A | Valid for engine 156, 271, 272, 274, 276: ME-SFI [ME] control unit, Valid for diesel engine: Oxygen sensor upstream of catalytic converter |
| 26 | 20A | Radio with auto pilot system, COMAND controller unit |
| 27 | 7.5A | Electric steering lock control unit, Electronic ignition lock control unit, Valid for diesel engine: CDI control unit, Valid for gasoline engine: ME-SFI [ME] control unit |
| 28 | 7.5A | Instrument cluster |
| 29 | 10A | Right front lamp unit |
| 30 | 10A | Left front lamp unit, Valid for engine 642: Electrical connector for interior harness and engine wiring harness |
| 31A | 15A | Left fanfare horn, Right fanfare horn |
| 31B | 15A | Left fanfare horn, Right fanfare horn |
| 32 | 40A | Valid for engine 156, 271, 272, 276: Electric air pump |
| 32 | 20A | Valid for engine 156: Oil cooler fan motor |
| 33 | 10A | Valid for transmission 722.6: Electronic transmission-control control unit, Valid for transmission 722.9: Fully integrated transmission control controller unit |
| 34 | 7.5A | Valid for engine 271, 272: Fuel pump control unit, Valid for engine 156: Left fuel pump control unit, Right fuel pump control unit |
| 35 | 5A | - |
| 36 | 7.5A | Valid for model 204.902/982/984: Electrohydraulic power steering |
| J | - | Circuit 15 relay |
| K | - | Terminal 15R relay |
| L | - | Backup relay |
| M | - | Circuit 50 starter relay |
| O | - | Engine circuit 87 relay |
| O | - | Fanfare horn relay |
| P | - | Valid for engine 156, 272, 276: Secondary air injection relay |
| Q | - | Backup relay |
| R | - | Chassis circuit 87 relay |
Front Pre-Fuse Box:
| Fuse/Relay N° | Rating | Functions |
| 88 | - | Pyrofuse: Alternator, Starter |
| 89 | 125A | Front SAM control unit with fuse and relay module |
| 90 | 40A | Rear SAM control unit with fuse and relay module |
| 91 | 80A | Combustion engine fan motor and air conditioning with integrated control |
| 100 | 40A | Air conditioner housing |
| 101 | 60A | Valid for gasoline engine: Front SAM control unit with fuse and relay module |
| 103 | 150A | Valid for diesel engine: PTC heater booster |
| 104 | 70A | Interior fuse box |
| 105 | 100A | Front SAM control unit with fuse and relay module |
| 106 | 150A | Rear SAM control unit with fuse and relay module |
| 107 | - | Spare |
| 108 | - | Spare |
| 109 | - | Spare |
| 110 | - | Spare |
Luggage compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 37 | 7.5A | Driver seat NECK-PRO head restraint solenoid, Front passenger seat NECK-PRO head restraint solenoid |
| 38 | 15A | Tailgate wiper motor |
| 39 | 30A | Valid for model 204.0/2/9 except vehicles for Great Britain: Left rear door control unit |
| 40 | - | Spare |
| 41 | 30A | Valid for model 204.0/2/9: Right rear door control unit, Valid as of 1.4.10 Right front door control unit |
| 42 | 20A | Valid for engine 646 or engine 642 or engine 651: Fuel pump, Valid for gasoline engine: Fuel pump control unit |
| 43 | 5A | - |
| 44 | 30A | Switch group, right front seat setting, Front passenger seat partially electric seat adjustment switch |
| 45 | 30A | Left front seat adjustment switch group, Driver seat partially electric seat adjustment switch |
| 46 | 7.5A | Antenna amplifier for rear window FM antenna, Alarm siren, Interior protection and tow-away protection control unit, Rear window antenna amplifier 1, TV 1 antenna amplifier and DAB Band III, DAB band III antenna, TV 2 antenna amplifier and KEYLESS-GO, KEYLESS-GO antenna amplifier |
| 47 | - | Spare |
| 48 | - | Spare |
| 49 | 40A | Rear window heater |
| 50 | 50A | Right front reversible emergency tensioning retractor |
| 51 | 50A | Left front reversible emergency tensioning retractor (A76) |
| 52 | - | Spare |
| 53 | 30A | Trailer recognition control unit |
| 54 | 7.5A | Trailer recognition control unit, Valid for model 204.075/077/275/277: Driver seat lumbar support and side bolster adjustment switch group, Front passenger seat lumbar support and side bolster adjustment switch group, Front passenger seat AMG valve block, Driver seat AMG valve block |
| 54 | 15A | - |
| 55 | 5A | - |
| 56 | 15A | Trailer recognition control unit, Trailer socket |
| 56 | 5A | Valid for model 204.077/277/377: Driver seat lumbar support and side bolster adjustment switch group, Front passenger seat lumbar support and side bolster adjustment switch group, Front passenger seat AMG valve block, Driver's seat AMG valve block |
| 57 | 20A | Trailer recognition control unit |
| 58 | 30A | Trailer recognition control unit |
| 59 | 7.5A | PARKTRONIC control unit, Radar sensors control unit |
| 60 | 7.5A | Multicontour seat pneumatic pump |
| 61 | 40A | Liftgate-control control unit |
| 62 | 30A | Driver seat control unit |
| 63 | 30A | Front passenger seat control unit |
| 64 | 25A | DC/AC converter control unit |
| 65 | 15A | Adaptive damping system control unit Steering column tube module control unit |
| 66 | - | Spare |
| 67 | 40A | Sound system amplifier control unit |
| 68 | - | Spare |
| 69 | 20A | Rear bass speaker amplifier |
| 70 | 5A | Tire pressure monitor control unit |
| 71 | 15A | Front cigarette lighter with ashtray illumination, Front vehicle interior power outlet |
| 72 | 15A | Cargo area connector box 115 V power outlet |
| 73 | 7.5A | - |
| 74 | 15A | KEYLESS-GO control unit |
| 75 | 20A | Stationary heater unit |
| 76 | 15A | Vehicle interior power outlet |
| 77 | 7.5A | Weight Sensing System (WSS) control unit |
| 78 | 7.5A | Left front seat ventilation blower regulator, Right front seat ventilation blower regulator |
| 79 | 5A | Parking system control unit |
| 80 | 7.5A | Video and radar sensor system control unit, Parking system control unit |
| 81 | 5A | Media interface control unit |
| 82 | 5A | Cellular telephone system compensator UMTS, TV tuner control unit (Japan), Digital TV tuner (Japan) |
| 83 | 7.5A | Electronic Toll Collection control unit (Japan), Emergency call system control unit, Reversing camera, Left rear display, Right rear display |
| 84 | 7.5A | Satellite digital audio radio (SDAR) control unit, SDAR/high definition tuner control unit, Digital Audio Broadcasting control unit, Backup camera power supply module, Backup camera control unit, 360° camera control unit |
| 85 | 7.5A | TV tuner control unit (Japan) |
| 86 | 7.5A | DVD player |
| 87 | 7.5A | Emergency call system control unit |
| 88 | - | - |
| 89 | - | - |
| 90 | - | - |
| 91 | 25A | DC/AC converter control unit |
| 91 | 20A | ECO start/stop: Transmission oil auxiliary pump control unit, Valid for engine 642: Vent line heater element |
| 92 | - | Spare |
| A | - | Terminal 15 relay |
| B | - | Circuit 15R relay (1) |
| C | - | Heated rear window relay |
| D | - | Valid for diesel engine: Fuel pump relay |
| E | - | Tailgate windshield wiper relay |
| F | - | Seat adjustment relay |
| G | - | Circuit 15R relay (2) |
Rear Pre-Fuse Box:
| Fuse/Relay N° | Rating | Functions |
| 111 | 60A | Valid for gasoline engine: ME-SFI [ME] control unit, Valid for diesel engine: CDI control unit |
| 112 | 80A | Special-purpose vehicle multifunction control unit |
| 113 | 40A | Valid for engine 156: Left fuel pump control unit, Right fuel pump control unit |
| 114 | - | Spare |
| 115 | 100A | Special-purpose vehicle multifunction control unit |
