Mazda 626 2002 Fuse Box Info

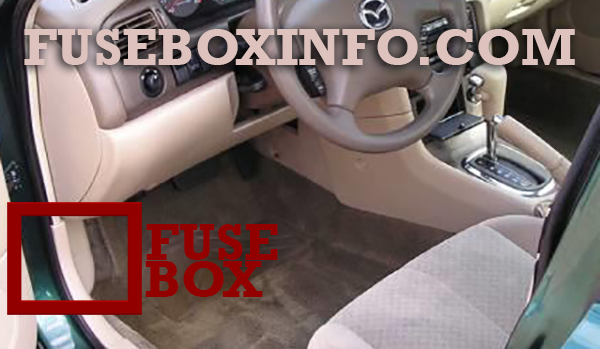

Passenger compartment fuse box location:
The fuse box is located below the instrument panel in front of the driver’s door.

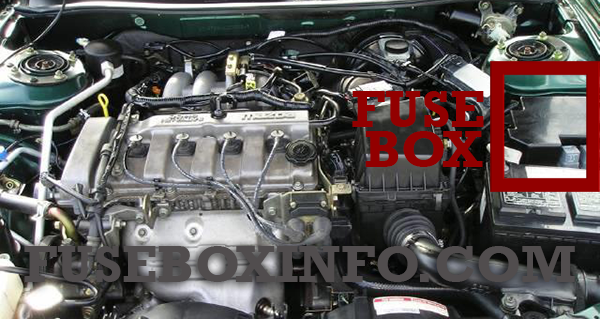

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
Fuse/Relay N° and Name | Rating | Functions |
1. AUDIO | 15A | Audio system |
2. ROOM | 15A | Interior lights, Trunk light |
3. S. ROOF | 15A | Sunroof |
4. METER | 10A | Gauges, Reverse lights |
5. D. LOCK | 30A | Power door lock |
6. HAZARD | 15A | Hazard warning lights |
7. A/B&ABS | 10A | Air bag system, Antilock brake system |
8. - | - | - |
9. A/C | 10A | Air conditioner |
10. - | - | - |
11. TURN | 10A | Turn signals |
12. WIPER | 20A | Windshield wipers and washer |
13. P. WIND | 30A | Power windows |
14. - | - | - |
15. RADIO | 15A | Audio system, Socket, Outside mirror |
16. ENGINE | 10A | Engine control system |
17. ILLUMI | 10A | Tail light, License plate lights, Parking lights, Dashboard illumination |
18. STOP | 15A | Brake lights, Horn, Cruise control |
19. CIGAR | 15A | Accessory socket, Clock, Radio, Outside mirror |
20. - | - | - |
21. - | - | - |
22. P. SEAT | 30A | Power seat |
23. M. DEF | 15A | Mirror defroter |
24. P. POINT | 15A | Power point |
Engine compartment fuse box:
Fuse/Relay N° and Name | Rating | Functions |
1. EGI INJ | 30A | Fuel injection system |
2. DEFOG | 40A | Rear window defroster |
3. - | - | - |
4. MAIN | 100A | For protection of all circuits |
5. IG KEY | 30A | RADIO, SUNROOF, TURN, METER, ENGINE, POWER WINDOW, WIPER fuses, Ignition system |
6. HEATER | 40A | Heater, Air conditioner |
7. BTN | 40A | TAIL, STOP, ROOM, DOOR LOCK, HAZARD, POWER SEAT fuses |
8. COOLING FAN | 30A | Cooling fan |
9. AD FAN | 30A | Additional fan |
10. (ABS) | 60A | Antilock brake system |
11. TAIL | 15A | Tail lights, Parking lights, Dashboard illumination, License plate lights, Switches illumination |
12. HORN | 15A | Horn |
13. (ABS) | 20A | Antilock brake system |
14. - | - | - |
15. - | - | - |
16. H/L–L | 15A | Head light (Left) |
17. H/L–R | 15A | Head light (Right) |
18. (ABS) | 20A | Antilock brake system |
