Mazda CX-7 2012 Fuse Box Info

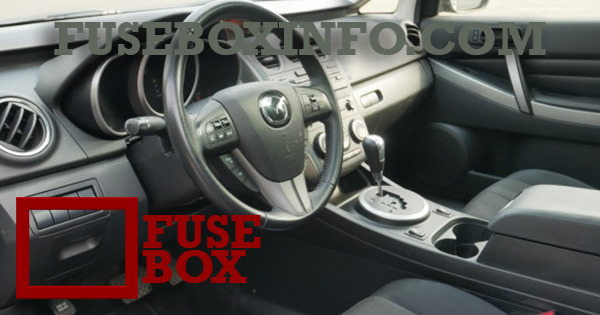

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

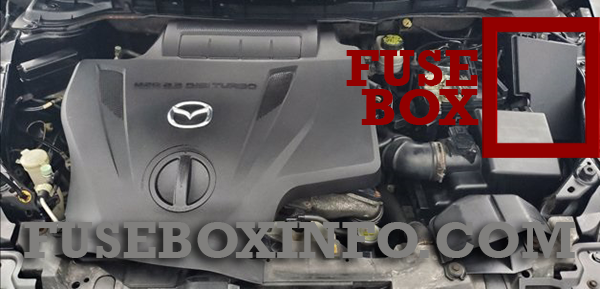

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° Name | Rating | Functions |
| 1. P.WIND 2 | 30A | Power windows |
| 2. OUTLET 1 | 15A | Accessory Socket |
| 3. P.MIR | 7.5A | Power control mirror |
| 4. OUTLET 2 | 15A | Accessory Socket |
| 5. SCR | - | - |
| 6. WIPER | 20A | Windshield wiper and washer |
| 7. M.DEF | 7.5A | Mirror defroster* |
| 8. P/ST/ENGBAR 3 | 7.5A | Engine control system |
| 9. P.WIND | - | - |
| 10. A/B | 7.5A | Air bag |
| 11. ENGINE | 15A | Engine control system |
| 12. METER | 15A | Instrument cluster |
| 13. ILLUMI | 10A | Dashboard illumination |
| 14. ROOM | 15A | Audio system, Overhead light |
| 15. R.FOG | - | - |
| 16. SIREN | - | - |
| 17. SEAT | 20A | Seat warmer* |
| 18. A/C | 10A | Air conditioner |
| 19. R.WIP | 10A | Rear window wiper and washer |
* Some models
Engine compartment fuse boxes:
| Fuse/Relay N° Name | Rating | Functions |
| 1. PCS | - | - |
| 2. BLOWER | 40A | Air conditioner |
| 3. FUEL PUMP | 30A | Fuel pump |
| 4. FAN 2 | 40A | Cooling fan |
| 5. IG KEY 1 | 40A | For protection of various circuits |
| 6. FAN 1 | 40A | Cooling fan |
| 7. P.SEAT (D) | 30A | Power seat* |
| 8. INJ 1 | 30A | Engine control system* |
| 9. P.SEAT (P) | 30A | Power seat* |
| 10. BOSE | 30A | Bose audio system* |
| 11. ENGINE | 30A | Engine control system |
| 12. D.LOCK | 20A | Power door locks |
| 13. P.WIND | 30A | Power windows |
| 14. IG KEY 2 | 40A | For protection of various circuits |
| 15. ABS 1 | 40A | ABS |
| 16. ABS 2 | 20A | ABS |
| 17. DSC | - | - |
| 18. H/L CLEAN/ROOF | 20A | Moonroof* |
| 19. DEF | 30A | Rear window defroster |
| 20. TNS | 15A | Parking lights, License plate lights, Illumination |
| 21. A/C | 10A | Air conditioner |
| 22. TRAILER/TCM | 20A | Transaxle control system* |
| 23. HEAD HI RH | 15A | Headlight high beam (RH) |
| 24. HEAD HI LH | 15A | Headlight high beam (LH) |
| 25. HEAD LO RH | 15A | Headlight low beam (RH) |
| 26. HEAD LO LH | 15A | Headlight low beam (LH) |
| 27. ETC | 10A | Engine control system* |
| 28. ENG BAR 2 | 7.5A | Engine control system |
| 29. ECM | 10A | Engine control system |
| 30. INJ 2 | 10A | Engine control system* |
| 31. ENG BAR 1 | 15A | Engine control system |
| 32. FOG | 15A | Fog lights* |
| 33. STOP | 10A | Brake lights |
| 34. HORN | 20A | Horn |
| 35. ENG B+ | 25A | Engine control system |
| 36. HAZARD | 10A | Hazard warning flashers, Turn signals |
* Some models
