Mazda Tribute 2002 Fuse Box Info

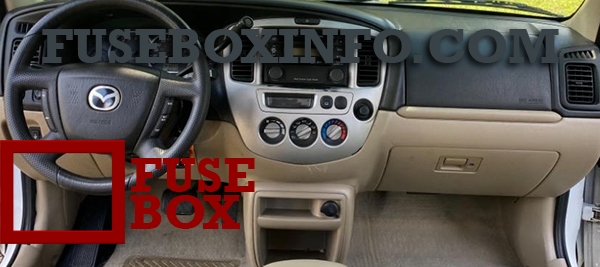

Passenger compartment fuse box location:
The fuse box is located below and to the left of the steering wheel by the brake pedal.
Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
Fuse/Relay N° | Rating | Functions |
1 | 5A | Canister Vent Control Solenoid |
2 | 5A | Blower Relay (coil), Rear Defrost Relay (coil), Pressure Switch to PCM |
3 | 10A | Rear Wiper Motor, Rear Washer Motor, Rear Wiper Relay (coil) |
4 | 10A | Four Wheel Drive Control Module, Cluster (Restraints Control Warning) |
5 | 5A | ABS Unit (EVAC & FILL), ASC Unit, Restraints Control Module, ASC Main SW to ASC Unit |
6 | 10A | Flasher Unit, Left reversing Lamp, Right Reversing Lamp |
7 | 10A | Passive Anti-theft Transceiver (PATS), Restraints Control Module |
8 | 10A | Cluster, Shift Lock Relay (coil), O/D signal to PCM |
9 | 3A | PCM Relay (coil), Fan Relay 1, 2, 3 (coil), A/C Relay (coil) |
10 | 20A | Front Wiper Motor, Front Washer Motor, INT Relay |
11 | 10A | IGN Relay (coil), ACC Relay (coil), Starter Relay (coil), Key Interlock Solenoid, GEM |
12 | 5A | Radio, Clock |
13 | - | Not Used |
14 | 20A | Cigar Lighter |
15 | 15A | Left Front Position Lamp, Right Front Position Lamp, Left License Lamp, Right License Lamp, Left Tail Lamp, Right Tail Lamp, Park Lamp Relay (coil), Trailer Fuse, Illumination Fuse |
16 | 10A | Cluster, Power Mirror, GEM |
17 | 15A | Sun Roof Motor |
18 | 5A | Illumination for: Cluster, Heater Unit, Radio, Hazard Switch, Rear Defrost Switch, 4WD Switch, Front Fog Switch |
19 | 10A | Subwoofer Amp |
20 | 15A | Left/Right Turn Indicators, Left/Right Front Side Turn Lamps, Left/Right Front turn Lamps, Left/Right Rear Turn Lamps, Left/Right Trailer Turn, Flasher Unit |
21 | 10A | Left /Right Trailer Position Lamps |
22 | 15A | Not Used |
23 | 15A | Left/Right Horn |
24 | 15A | Left/Right Stoplamps, High Mounted Stoplamp, Left/Right Trailer Stoplamp, ABS Unit, ASC Unit (Brake Pedal Position Switch), PCM, Shift Solenoid |
25 | 30A | Power Window Motor - Right Front, Left Front, Right Rear, Left Rear |
26 | 30A | Power Door Lock Motor - Right Front, Left Front, Right Rear, Left Rear, GEM (Door Lock Relay Coil), Power Seat |
27 | 10A | Audio, Cluster, Interior Lamp, Map Lamp Cargo Lamp |
ACC | - | Accessory Relay |
Engine compartment fuse box:
Fuse/Relay Name | Rating | Functions |
Horn | 15A | Horn |
H/L LH | 15A | Headlamp (High/Low Left, High Beams) |
H/L RH | 15A | Headlamp (High/Low Right,, High Beams) |
EEC | 5A | EEC (KPWR) |
HEGO | 15A | HEGO 1,2, CMS 1,2, VMV |
FUEL | 20A | Fuel Pump, EEC (FPM) |
DIODE | - | - |
DIODE | - | - |
H/L RELAY MICRO | - | Headlamp (High/Low, Right/Left Relay) |
- | - | - |
INJ | 30A | EEC (VPWR), EVR, MAF, IAC, Bulkhead |
MAIN | 120A | Main |
ALT | 15A | Alternator/ Regulator |
(DRL) | 15A | DRL Unit (feed), DRL Relay |
(DRLZ) (HELV) |
15A (DRLZ) 10A (HLEV) |
Daytime Running Lamps (DRL) Module, HLEV |
PWR 1 | 15A | Auxiliary Power Point |
FOG | 20A | Foglamps RH/LH, Foglamp Indicator |
A/C | 15A | A/C Clutch |
(ABS) | 25A | Anti-Lock Brake System SOL |
PWR 2 | 15A | Auxiliary Power Point |
IG MAIN | 40A | Starter |
HTR | 40A | Blower Motor, Blower Motor Relay |
BTN 1 | 40A | JB — Acc. Relay, Radio, Cigar Lighter, Cluster, Power Mirror, GEM, Electronic Flasher Control |
(ABS) | 60A | Anti-Lock Brake System Motor |
BTN 2 | 40A | JB — Radio, Cluster, Dome Lamps, Map Lamps, Cargo Lamps, Cruise Control, Power Seat, Horn |
MAIN FAN |
40A (2.0L) 50A (3.0L) |
Main Fan |
R DEF | 30A | Rear Defroster |
ADD FAN |
40A (2.0L) 50A (3.0L) |
Add Fan |
EEC MAIN ISO | - | EEC Relay |
FUEL PUMP ISO | - | Fuel Pump Relay |
MAIN FAN ISO | - | Low Speed Fan Control Relay (2.0L Engine) High Speed Fan Control Relay 1 (3.0L Engine) |
ADD FAN ISO | - | High Speed Fan Control Relay 1 (2.0L Engine) Low Speed Fan Control Relay (3.0L Engine) |
DEF RELAY ISO | - | Rear Defroster Relay |
ST RELAY ISO | - | Starter Relay |
ADD FAN 2 ISO | - | High Speed Fan Control Relay 2 (3.0L Engine) Medium Speed Fan Control Relay (2.0L Engine) |
FOG RELAY MICRO | - | Foglamp Relay |
A/C RELAY MICRO | - | A/C Clutch Relay |
