Maserati GranTurismo 2019 Fuse Box Info
Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel, behind the cover.

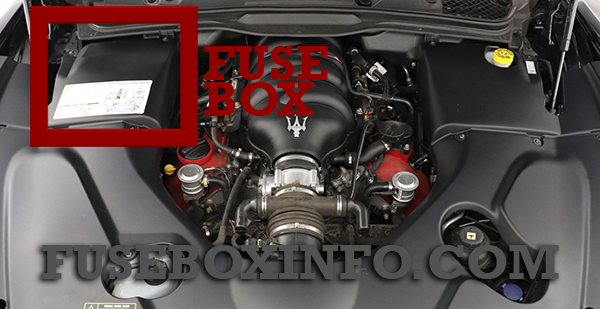

Engine compartment fuse box location:

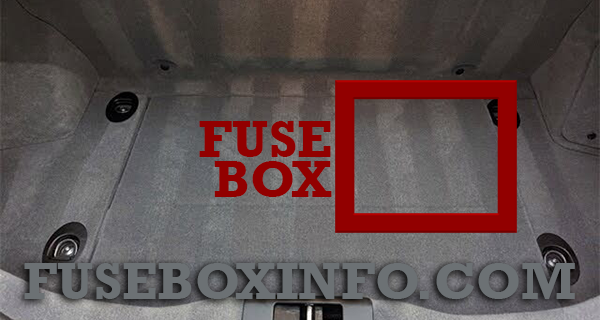

Luggage compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 12 | 15A |
Right-hand low beam
|
| 13 | 15A |
Left-hand low beam
|
| 31 | 7.5A |
A/C unit., NBC (Body Computer Node), high beam relay
|
| 32 | 10A | Domelights, step lights, CAV, driverand passenger-side footwell lights, outside mirror lights |
| 33 | 30A | Driver’s seat (movement) |
| 34 | 30A | Passenger’s seat (movement) |
| 35 | 7.5A | ACC, FN and LF relay coil |
| 36 | 10A | NQS |
| 37 | 10A | NQS (Instrument Panel Node), CPP, CPD |
| 38 | 15A | Rear lid lock |
| 39 | 15A | NIM (Inside Roof Node), NCL (Air conditioning and heating system node), OBD socket, CSA (Alarm system siren ECU), CAV (Motion sensing alarm ECU), radio, NAVTRAK |
| 40 | 30A | Heated rear window |
| 41 | - | Not used |
| 42 | 7.5A | Power supply for control panel on roof |
| 43 | 30A | Windshield wiper/washer (Connected Devices Relay INT/A) |
| 44 | 20A | Front and rear cigarette lighter (INT/A device relay) front seat heating (passenger side) |
| 45 | 25A | Not used |
| 46 | 20A | NPG/NPP Locks |
| 47 | 30A | NPG (Driver’s door node) |
| 48 | 30A | NPP (Passenger’s door node) |
| 49 | 7.5A | NVO (Steering wheel node), CSG (Power steering ECU), CSP (Twilight/rain sensor ECU), NIM (Inside Roof Node), NCL, Radio, CEM, CRP, domelight molding, windshield wiper controls, NAVTRAK |
| 50 | 7.5A | Airbag system |
| 51 | 7.5A | NCA (Automatic Gearbox Node) |
| 52 | 15A | Front seat heating (driver side) (INT/A device relay) |
| 53 | 10A | Rear fog lights |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 01 | 60A | Fan 1 relay |
| 02 | 30A | ABS valves |
| 03 | 20A | T03 spot lights relay |
| 04 | 40A | ABS cylinder |
| 05 | 40A | A.C. Node |
| 06 | 60A | Fan 2 relay |
| 07 | 30A | T07 I.E. main relay |
| 08 | 7.5A | T08 - Air conditioner compressor relay |
| 09 | 7.5A | T05 stop light control relay |
| 10 | 15A | T06 horn relay |
| 11 | 10A | LH high-beam |
| 14 | - | Not used |
| 15 | 15A | Alternator sensing |
| 16 | 10A | LH spot light |
| 17 | 10A | RH high-beam |
| 18 | 7.5A | I.E. bank |
| 19 | 15A | T02 DRL lights relay |
| 20 | - | Not used |
| 21 | - | Not used |
| 22 | - | Not used |
| 23 | 10A | ABS electronics |
| 24 | 10A | RH spot light |
| 30 | 30A | T20 ignition relay |
| 81 | 50A | CPL2 |
| 82 | - | Not used |
| 83 | 50A | Air pump relay |
| 84 | 20A | Ignition switch |
| 85 | 30A | Headlight washers |
| 87 | - | Not used |
| 88 | 15A | Main injector/coil relay - cylinders 1-4 |
| 89 | 15A | Main injector/coil relay - cylinders 5-8 |
| 90 | 15A | Main I.E. relay, secondary connected devices |
| 91 | 10A | Main relay, I.E. ECU |
| 92 | 15A | Main relay, oxygen sensors |
| 93 | 7.5A | +15 Controls on inside roof |
| 94 | 7.5A | NCS |
| 95 | 7.5A | CSG |
| 96 | 7.5A | Alternator |
| 97 | 10A | I.E. ECU |
| 98 | - | Not used |
| 99 | - | Not used |
| 100 | - | Not used |
| 101 | - | Not used |
| 102 | - | Not used |
| 103 | - | Not used |
| 104 | - | Not used |
| 105 | - | Not used |
| 106 | - | Not used |
| 107 | - | Not used |
Luggage compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 25 | - | Not used |
| 26 | - | Not used |
| 27 | - | Not used |
| 28 | - | Not used |
| 29 | - | Not used |
| 53 | - | Not used |
| 54 | 30A | HI-Fi amplifier |
| 55 | - | Not used |
| 56 | 10A | +30 NAG, NTV, Harman tuner, MTC+ (Japan) |
| 57 | - | Not used |
| 58 | 7.5A | RH Reverse from T23 |
| 59 | - | Not used |
| 60 | 7.5A | NSP |
| 61 | 7.5A | T24 third stop |
| 62 | 20A | NCA |
| 63 | 15A | Fuel flap T25 relay, +30 Battery charge |
| 64 | - | Not used |
| 65 | 10A | Key-Lock solenoid |
| 66 | 20A | Fuel pumps |
| 67 | - | Not used |
| 68 | - | Not used |
| 69 | - | Not used |
| 77 | - | Not used |
| 78 | 20A | Power socket |
| 79 | - | Not used |
| 80 | 25A | Bass box |
