Land Rover Discovery 2019 Fuse Box Info
Passenger compartment fuse box location:

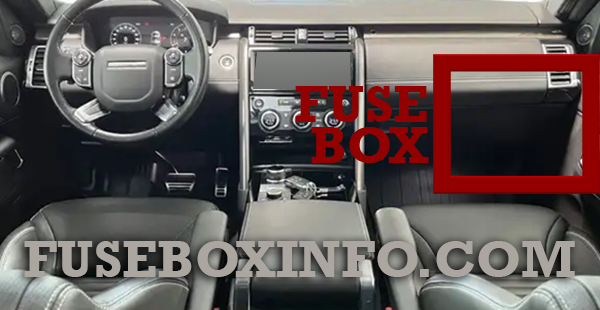

The fuse panel is located on the right side behind the glove box.

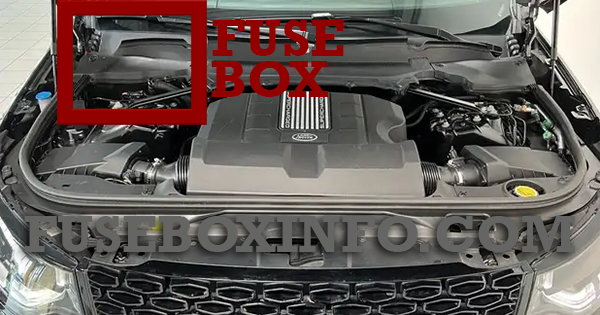

Engine compartment fuse box location:
Luggage compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 20A | Front cigar lighter |
| 2 | 20A | Front accessory socket |
| 3 | 20A | Rear accessory socket |
| 4 | - | - |
| 5 | - | - |
| 6 | - | - |
| 7 | 5A | Battery back-up sounder |
| 8 | - | - |
| 9 | - | - |
| 10 | - | - |
| 11 | - | - |
| 12 | 20A | Panoramic roof |
| 13 | 20A | Panoramic roof |
| 14 | 5A | All Terrain Progress Control (ATPC) |
| 15 | - | - |
| 16 | - | - |
| 17 | - | - |
| 18 | 30A | Passenger electric seat |
| 19 | - | - |
| 20 | 25A | Left-side rear door |
| 21 | 10A | Cool box |
| 22 | - | - |
| 23 | 20A | Front passenger's seat |
| 24 | 25A | Driver's door switches, Driver's door soft-close |
| 25 | 15A | Active cornering enhancement |
| 26 | 10A | Passenger seat switches |
| 27 | 5A | Tire Pressure Monitoring System (TPMS), Front overhead console |
| 28 | 20A | Driver's seat |
| 29 | 25A | Right-side rear door switches |
| 30 | 20A | Panoramic roof |
| 31 | - | - |
| 32 | - | - |
| 33 | 30A | Driver's seat |
| 34 | 25A | Passenger door switches, Passenger door soft-close |
| 35 | 5A | Brake pedal switch |
| 36 | - | - |
| 37 | - | - |
| 38 | - | - |
| 39 | - | - |
| 40 | - | - |
| 41 | 5A | Telematics |
| 42 | - | - |
| 43 | 10A | Heated steering wheel |
| 44 | 10A | Steering wheel |
| 45 | 5A | Touch screen buttons, Rear climate control |
| 46 | 15A | Climate control |
| 47 | - | - |
| 48 | - | - |
| 49 | 5A | Vehicle immobilizer |
| 50 | - | - |
| 51 | - | - |
| 52 | 5A | Air ionizer |
| 53 | - | - |
| 54 | 5A | Diagnostic socket |
| 55 | - | - |
| 56 | 10A | Climate control |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | - | - |
| 2 | - | - |
| 3 | - | - |
| 4 | - | - |
| 5 | - | - |
| 6 | - | - |
| 7 | - | - |
| 8 | - | - |
| 9 | 25A | Rear screen washer |
| 10 | 15A | Front fog lights |
| 11 | 15A | Horn |
| 12 | 30A | Right-side headlight washer pump |
| 13 | 30A | Left-side headlight washer pump |
| 14 | 15A | Auto stop/start |
| 15 | 15A | Supercharger cooling |
| 16 | 25A | Windshield washer jets |
| 17 | 5A | Engine management system |
| 18 | 20A | Engine management system (gasoline only) |
| 19 | 15A | Engine management system |
| 20 | 25A | Engine management system |
| 21 | 20A | Engine management system |
| 22 | 10A | Engine management system (diesel only), Engine cooling fan (gasoline only) |
| 23 | 10A | Engine management system |
| 24 | 15A | Engine management system |
| 25 | 10A | Engine management system (diesel only) |
| 26 | - | - |
| 27 | - | - |
| 28 | - | - |
| 29 | 5A | Engine management system, Starter motor, Electrical power management |
| 30 | - | - |
| 31 | - | - |
| 32 | 10A | Steering wheel |
| 33 | 5A | Transfer case |
| 34 | - | - |
| 35 | 5A | Headlight levelling |
| 36 | - | - |
| 37 | - | - |
| 38 | - | - |
| 39 | - | - |
| 40 | 15A | Transmission, Terrain response switch, Gear selector |
| 41 | - | - |
| 42 | 25A | Left-side headlight |
| 43 | - | - |
| 44 | 25A | Right-side headlight |
| 45 | - | - |
| 46 | - | - |
| 47 | - | - |
| 48 | - | - |
| 49 | 5A | Engine management system |
| 50 | - | - |
| 51 | 10A | Engine management system |
| 52 | - | - |
| 53 | - | - |
| 54 | - | - |
| 55 | - | - |
| 56 | - | - |
| 57 | - | - |
| 58 | - | - |
| 59 | - | - |
| 60 | - | - |
Luggage compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | - | - |
| 2 | 25A | Third row heated seats |
| 3 | 25A | Third row heated seats |
| 4 | - | - |
| 5 | - | - |
| 6 | - | - |
| 7 | 5A | Blind spot monitoring, Rear exit detect system |
| 8 | 20A | Driver's heated seat |
| 9 | 15A | Driver's seat switches, Front passenger's seat switches |
| 10 | 20A | Front passenger's heated seat |
| 11 | 20A | Right-side rear heated seat |
| 12 | - | - |
| 13 | 20A | Left-side rear heated seat |
| 14 | 20A | Rear wiper |
| 15 | 30A | Fuel system |
| 16 | 15A | Trailer socket |
| 17 | 10A | Diesel Exhaust Fluid (DEF) |
| 18 | 20A | Loadspace accessory power socket, Third row USB socket |
| 19 | 20A | Rear accessory socket |
| 20 | 20A | Cubby box accessory socket |
| 21 | 20A | USB floor console |
| 22 | - | - |
| 23 | - | - |
| 24 | 10A | Instrument panel |
| 25 | 5A | Air suspension |
| 26 | 2A | Electronic toll collection |
| 27 | 10A | Parking aid, Rear-view mirror, Cameras |
| 28 | 10A | Head-Up Display (HUD) |
| 29 | 5A | Adaptive cruise control |
| 30 | 30A | Heated rear screen, Radio frequency filter |
| 31 | - | - |
| 32 | - | - |
| 33 | - | - |
| 34 | - | - |
| 35 | - | - |
| 36 | - | - |
| 37 | 20A | Driver's seat |
| 38 | - | - |
| 39 | 30A | Deployable side steps |
| 40 | - | - |
| 41 | - | - |
| 42 | - | - |
| 43 | 20A | Keyless locking |
| 44 | 15A | Trailer socket |
| 45 | 15A | Engine management system, Fuel system |
| 46 | - | - |
| 47 | - | - |
| 48 | - | - |
| 49 | 10A | Gesture tailgate |
| 50 | 15A | Entertainment and information systems |
| 51 | 15A | Entertainment and information systems |
| 52 | 10A | Portable media |
| 53 | 10A | Portable media |
| 54 | 5A | Occupant sensor |
| 55 | 15A | Air suspension |
| 56 | 10A | Air suspension, Continuous variable dampers |
| 57 | 5A | Keyless locking |
| 58 | 30A | Front passenger's seat |
| 59 | 5A | Rear-view camera |
| 60 | - | - |
