Lancia Delta 2014 Fuse Box Info
Passenger compartment fuse box location:
The fuse box is located on the driver's side under the instrument panel.

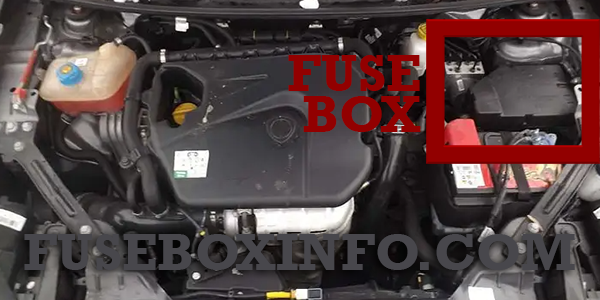

Engine compartment fuse box location:

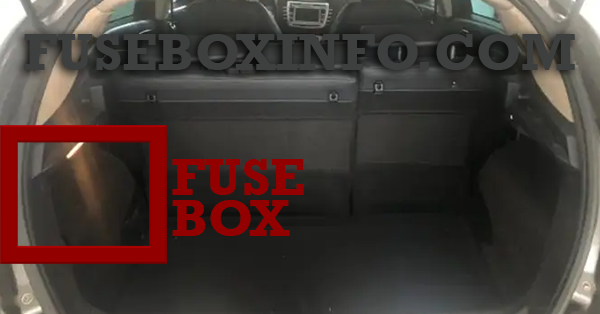

Luggage compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 12 | 7.5A | Right dipped beam headlight |
| 12 | 15A | Right dipped beam headlight (Xenon gas discharge bulb) |
| 13 | 7.5A | Left dipped beam headlight, headlight alignment corrector |
| 13 | 15A | Left dipped beam headlight (Xenon gas discharge bulb) |
| 31 | 5A | Climate control system fan relay coil, Body Computer |
| 33 | 20A | Rear left electric window |
| 34 | 20A | Rear right electric window |
| 35 | 5A | Reversing lights, engine compartment junction unit relay coils, brake light pedal control (normally closed contact), water in diesel sensor, flow meter |
| 36 | 20A | Central locking system control unit, fuel flap, dead lock, tailgate release |
| 37 | 7.5A | Third brake light, instrument panel, Adaptive Headlights Node, control unit on left-hand gas discharge headlight |
| 38 | 10A | Front roof lights, rear central roof light, driver side and passenger side sun visor lights, luggage compartment light, glove compartment light (Platinum trim level with optional sun roof) |
| 39 | 10A | Radio setup/Radio/Radio Navigator, Blue&MeTM node, alarm siren, alarm system on roof light, climate control unit, tyre pressure monitoring control unit, diagnosis socket connector, rear roof lights |
| 40 | 30A | Heated rear window |
| 41 | 7.5A | Electric door mirror demisters, demisters on windscreen jets |
| 43 | 30A | Windscreen wiper system on steering column stalk, bi-directional windscreen/rear window washer electrical pump system on steering column stalk |
| 44 | 15A | Cigar lighter/power socket on tunnel, luggage compartment power socket |
| 46 | 20A | Sunroof motor |
| 47 | 20A | Driver’s front electric window |
| 48 | 20A | Passenger side front electric window |
| 49 | 5A | Hazard, right, left and central control panels (lighting), steering wheel controls (lighting), controls on front roof light (lighting), volumetric alarm system control unit, electric sun roof system (control unit, control lighting), rain/dusk sensor, electro-chromic mirror, front seat heating controls, AUX socket (lighting) |
| 51 | 5/7.5A | Cigar lighter (lighting), radio setup, Cruise Control system control, Blue&MeTM node, parking sensor node, AQS sensor, climate control system, electric door mirror adjustment, tyre pressure monitoring control unit, Lane assistance node, Controlled damping suspension node, Eco button (versions with automatic transmission), automatic transmission control light guide, control unit on right-hand gas discharge headlight |
| 52 | 15A | Rear window wiper system on steering column stalk |
| 53 | 7.5A | Instrument panel, rear direction indicators |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 08 | 40A | Climate control fan |
| 09 | 30A | Headlight washer pump |
| 10 | 10A | Horn |
| 14 | 15A | Main beam headlights |
| 15 | 30A | PTC1 additional heater |
| 19 | 7.5A | Air conditioning compressor |
| 30 | 15A | Fog/cornering lights |
| 85 | 15A | Fuel pump |
Luggage compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 30A | Front right seat adjustment node |
| 2 | 30A | Front left seat adjustment node |
| 3 | 10A | Front left seat heating |
| 6 | 10A | Front right seat heating |
| 4 | 15A | Audio HI-FI control unit |
| 5 | 10A | BASSBOX speaker (HI-FI system) |
