Lancia Thema 2014 Fuse Box Info

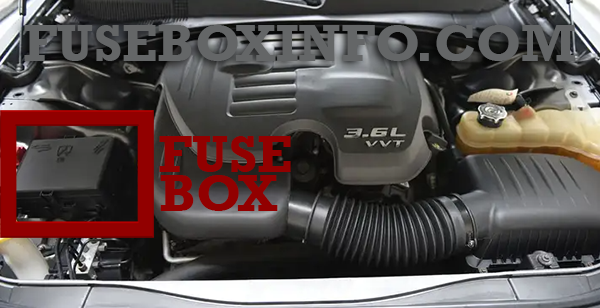

Engine compartment fuse box location:

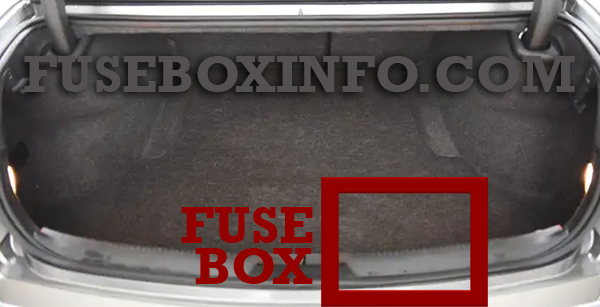

Luggage compartment fuse box location:
Fuse Box Diagram | Layout
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | - | Spare |
| 2 | 40A | Radiator Fan #1 |
| 3 | 50A | Power Steering #1 |
| 4 | 30A | Starter |
| 5 | 40A | Anti-Lock Brakes |
| 6 | 25A | Anti-Lock Brakes |
| 7 | 50A | Cabin Heater #1 — Diesel Only |
| 8 | 50A | Cabin Heater #2 — Diesel Only |
| 9 | - | Spare |
| 10 | 5A | Security |
| 11 | 20A | Horns |
| 12 | 10A | Air Conditioning Clutch |
| 13 | - | Spare |
| 14 | - | Spare |
| 15 | - | Spare |
| 16 | - | Spare |
| 18 | 50A | Radiator Fan #2 |
| 19 | 50A | Power Steering #2 |
| 20 | 30A | Wiper Motor |
| 21 | 30A | Headlamp Washers |
| 22 | 50A | Glow Plug Module — Diesel Only |
| 23 | 30A | Fuel Pump Feed/Diesel Fuel Heater — Diesel Only |
| 24 | 50A | Cabin Heater #3 — Diesel Only |
| 28 | 25A | Fuel Pump |
| 29 | 15A | Transmission/Shifter (TCM Module) |
| 30 | - | Spare |
| 31 | 25A | Engine Module (PCM) |
| 32 | - | Spare |
| 33 | - | Spare |
| 34 | 25A | ASD Feed #1 |
| 35 | 20A | ASD Feed #2 |
| 36 | 10A | Anti-Lock Brake Module (ABS/ESP Module) |
| 37 | 10A | Engine Controller (PCM)/Rad Fan Relay Coil |
| 38 | 10A | Airbag Module |
| 39 | 10A | Power Steering Module/AC Clutch Relay/Cabin Heater Relay Coils — Diesel Only |
| 48 | 10A | DTCM/Diesel Scr Module — Diesel Only |
| 49 | 15A | ASD Feed #3 |
| 50 | - | Spare |
| 51 | 20A | Vacuum Pump |
| 52 | - | Spare |
| 53 | - | Spare |
Luggage compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 2 | 60A | Front PDC Feed #1 |
| 3 | - | Spare |
| 4 | 60A | Front PDC Feed #2 |
| 5 | 30A | Sunroof |
| 6 | 40A | Exterior Lighting #1 |
| 7 | 40A | Exterior Lighting #2 |
| 8 | 30A | Interior Lighting/Washer Pump |
| 9 | 30A | Power Locks |
| 10 | 30A | Driver Door |
| 11 | 30A | Passenger Door |
| 12 | 20A | Selectable Power Outlet #1 |
| 15 | 40A | HVAC Blower |
| 16 | - | Spare |
| 17 | - | Spare |
| 18 | - | Spare |
| 19 | - | Spare |
| 20 | - | Spare |
| 21 | - | Spare |
| 22 | 20A | Trailer Park Lamp - If Equipped |
| 23 | 10A | Fuel Door/Diagnostic Port |
| 24 | 15A | Radio Screen |
| 25 | 10A | Tire Pressure Monitor |
| 26 | 25A | Transmission |
| 27 | 25A | Amplifier |
| 31 | 25A | Power Seats |
| 32 | 15A | HVAC Module/Cluster/Steering Wheel Lock |
| 33 | 15A | Ignition Switch/Wireless Module |
| 34 | 10A | Steering Column Module/Clock |
| 35 | 10A | Battery Sensor |
| 36 | 20A | T/Tow Module Lighting - If Equipped |
| 37 | 15A | Radio |
| 38 | 20A | Console Power Outlet |
| 40 | - | Spare |
| 41 | - | Spare |
| 42 | 30A | Rear Defrost (EBL Feed) |
| 43 | 25A | Rear Heated Seats/Heated Steering Wheel |
| 44 | 10A | Park Assist/Blind Spot/Camera |
| 45 | 15A | Cluster/Rearview Mirror/Compass/Humidity Sensor |
| 46 | 10A | Adaptive Cruise Control |
| 47 | 10A | Adaptive Front Lighting |
| 48 | 20A | Active Suspension — If Equipped |
| 49 | - | Spare |
| 50 | - | Spare |
| 51 | 20A | Front Heated Seats |
| 52 | 10A | Heated Cupholders/Rear Heated Seat |
| 53 | 10A | HVAC Module/In Car Temperature Sensor |
| 54 | - | Spare |
| 55 | - | Spare |
| 56 | - | Spare |
| 57 | - | Spare |
| 58 | 10A | Airbag Module |
| 59 | - | Spare |
| 60 | - | Spare |
| 61 | 20A | Trailer Tow (Europe) |
| 62 | - | Spare |
| 63 | - | Spare |
| 64 | 25A | Rear Windows |
| 65 | 10A | Airbag Module |
| 66 | - | Spare |
| 67 | 15A | Frt Door Illum/Run Sense |
| 68 | 15A | Console Power Outlet Illumination/Rear Sunshade |
| 69 | - | Spare |
| 70 | - | Spare |
