Lamborghini Huracán STO 2021 Fuse Box Info
Passenger compartment fuse box location:

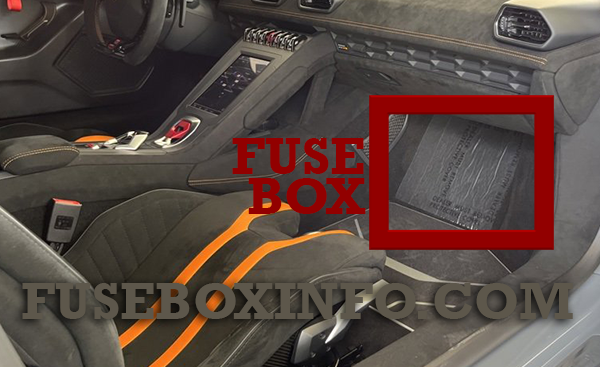

The fuse box is located under the passenger's footrest.
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| Fuse panel A (Black) | ||
| F1 | 5A | SMLS |
| F2 | 5A | EPS, EPB, Haldex, Airbag (PAO) |
| F3 | 5A | SARA |
| F4 | 5A | LDS (Dynamic steering) |
| F5 | 5A | Garage door opening (Homelink) |
| F6 | 5A | Diagnose connection, AFS ECU |
| F7 | 5A | Gateway |
| F8 | 5A | ESP |
| F9 | 5A | Airbag |
| F10 | 5A | BCM1 Preas/Air quality sensor |
| F11 | 5A | Left Headlamp |
| F12 | 15A | Fan Left Head Lamp |
| F13 | 5A | Right Head lamp |
| F14 | 15A | Fan Right Head Lamp |
| F15 | 40A | Starter |
| F16 | 30A | Cascade for Engine and BCM2 |
| Fuse panel B (Black) | ||
| F1 | - | Not used |
| F2 | 40A | DC/DC Converter |
| F3 | 40A | A/C Fan Controller |
| F4 | 40A | BMC1 |
| F5 | 5A | Inner Mirror (dimming) |
| F6 | - | Not used |
| Fuse panel C (Black) | ||
| F1 | 10A | Diagnosis connection |
| F2 | - | Not used |
| F3 | 5A | Gateway |
| F4 | 15A | Engine Air Pump |
| F5 | - | Not used |
| F6 | 20A | 12V Plug/Lighter |
| F7 | 5A | Instrument Cluster (Kombi) |
| F8 | 5A | BMC2 |
| F9 | 5A | BMC2 |
| F10 | 30/10A | LICU (Main Unit) |
| F11 | 5A | Belt Microphone |
| F12 | 5A | Lifting System ECU |
| Fuse panel D (Red) | ||
| F1 | - | Not used |
| F2 | - | Not used |
| F3 | 5A | SARA |
| F4 | 5A | Kl.15 Relais |
| F5 | 10A | Datalogger and Prototype Diag. |
| F6 | 30A | Premium Sound Amplifier |
| F7 | 5A | Innerlight |
| F8 | 30A | Wiper Driver’s Side |
| F9 | 30A | Wiper Passenger’s Side |
| F10 | 15A | Horn Relais |
| F11 | 5A | SMLS |
| F12 | 5A | Light Switch (LDS) |
| Fuse panel E (Brown) | ||
| F1 | 10A | ESP |
| F2 | 20A | ESP |
| F3 | 10A | Clima ECU |
| F4 | 5A | Car Tracking (STS) |
| F5 | 30A | Left Door ECU |
| F6 | 30A | Right Door ECU |
| F7 | 30A | BMC1 |
| F8 | 30A | BMC1 |
| F9 | 30A | BMC1 |
| F10 | 5A | Antitheft system |
| F11 | 20A | BMC1 |
| F12 | 5A | Rain/Light Sensor (RLS) |
| Fuse panel F (Black) | ||
| F1 | 5A | ETC CHINA |
| F2 | - | Not used |
| F3 | - | Not used |
| F4 | - | Not used |
| F5 | - | Not used |
| F6 | - | Not used |
| F7 | 15A | DL800 Additional ECU |
| F8 | 7.5A | LIDU (Display) |
| F9 | - | Not used |
| F10 | - | Not used |
| F11 | - | Not used |
| F12 | 5A | Inner Mirror (dimming) |
