Kia Seltos 2022 Fuse Box Info

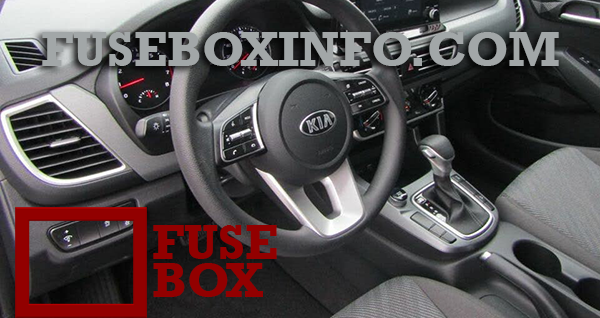

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.
Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box::
| Fuse/Relay Name | Rating | Functions |
| P/SEAT (PASS) | 30A | Passenger Seat Manual Switch |
| P/SEAT (DRV) | 30A | Driver Seat Manual Switch |
| AMP | 25A | Low DC-DC Converter (AMP (Amplifier)) |
| P/WDW RH | 25A | Power Window RH Relay |
| P/WDW LH | 25A | Power Window LH Relay, Driver Safety Power Window Module |
| WIPER RR | 15A | Rear Wiper Motor, ICM (Integrated Circuit Module) Relay Box (Rear Wiper Relay) |
| S/HEATER FRT | 20A | Front Air Ventilation Seat Module, Front Seat Warmer Module |
| SUNROOF | 20A | Sunroof Unit |
| TAIL GATE OPEN | 10A | Tail Gate Relay |
| S/HEATER RR | 15A | Rear Seat Warmer Module |
| MODULE 1 | 7.5A | Hazard Switch, Data Link Connector, Passenger Power Window Switch, Power Window Main Switch, Crash Pad Switch, Key Interlock |
| BRAKE SWITCH | 10A | Stop Lamp Switch, IBU (Integrated Body Control Unit) |
| DOOR LOCK | 20A | Door Lock Relay, Door Unlock Relay, ICM (Integrated Circuit Module) Relay Box (Two Turn Unlock Relay) |
| IBU 1 | 15A | IBU (Integrated Body Control Unit) |
| START | 7.5A | [With B/Alarm & Without Smart Key] ICM (Integrated Circuit Module) Relay Box (Burglar Alarm Relay) [DCT] Transaxle Range Switch, [IVT] Position Switch |
| WIPER FRT 1 | 10A | IBU (Integrated Body Control Unit) |
| AIR BAG 2 | 10A | SRS (Supplemental Restraint System) Control Module |
| MEMORY 2 | 10A | A/C Control Module, Head-Up Display |
| MULTI MEDIA | 15A | Low DC-DC Converter |
| IG1 | 25A | PCB Block (Fuse Name - ABS 3, ECU 5, SENSOR 4, TCU 2) |
| MODULE 4 | 7.5A | Forward Collision-Avoidance Assist Unit, IBU (Integrated Body Control Unit), Crash Pad Switch, 4WD ECM (Engine Control Module), Electric Parking Brake Switch, Lane Keeping Assist Unit |
| HAETED MIRROR | 10A | ECM (Engine Control Module), A/C Control Module, Driver/Passenger Power Outside Mirror |
| ISG | 15A | Sound Mood Lamp, Driver/Passenger Door Mood Lamp, Low DC-DC Converter, Blind-Spot Collision Warning Unit LH/RH, A/V & Navigation Head Unit, Audio, A/C Control Module, Head-Up Display, Instrument Cluster |
| IBU2 | 7.5A | IBU (Integrated Body Control Unit) |
| MODULE 5 | 10A | Electro Chromic Mirror, Wireless Charger, ATM Shift Lever Indicator, Console Switch LH, Audio, A/V & Navigation Head Unit, A/C Control Module, AMP (Amplifier), Front Air Ventilation Seat Control Module, Rear Seat Warmer Module, Front Seat Warmer Module, Low DC-DC Converter |
| MODULE 3 | 7.5A | Stop Lamp Switch, ATM Shift Lever |
| AIR BAG | 15A | SRS (Supplemental Restraint System) Control Module, Passenger Occupant Detection Sensor |
| FRT WIPER2 | 25A | PCB Block (Front Wiper (Low) Relay), Front Wiper Motor |
| MDPS | 7.5A | MDPS (Motor Driven Power Steering) Unit |
| A/BAG IND | 7.5A | Overhead Console Lamp, Instrument Cluster |
| CLUSTER | 7.5A | Instrument Cluster, Head-Up Display |
| A/C 1 | 7.5A | Engine Room Junction Block (Blower Relay, PTC Heater #1/#2 Relay), A/C Control Module |
| POWER OUTLET | 20A | Front Power Outlet #2 (USB), Joint Connector (JM04) |
| MODULE 2 | 10A | Rear USB Charger, IBU (Integrated Body Control Unit), Low DC-DC Converter, Front Power Outlet #2, Power Outside Mirror Switch, ICM (Integrated Circuit Module) Relay Box (Power Outlet Relay), Front USB Charger |
| MODULE 6 | 7.5A | IBU (Integrated Body Control Unit) |
| A/C 2 | 10A | [Auto A/C] Blower Motor, Engine Room Junction Block (Blower Relay) [Manual A/C] Blower Resistor, A/C Control Module |
| MODULE 7 | 7.5A | Front Air Ventilation Seat Module, Front Seat Warmer Module, Rear Seat Warmer Module, Front Deicer Box (Front Deicer LH/RH Relay) |
| WASHER | 15A | Multifunction Switch |
Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| ALT |
150A 200A |
Alternator, Engine Room Junction Block (Fuse Name - SGA, EPB 1, EPB 2, ABS 2, 4WD) |
| MDPS1 | 80A | MDPS (Motor Driven Power Steering) Unit |
| B+3 | 60A | ICU Junction Block (IPS1, IPS2, IPS3, IPS7, IPS10, IPS13, IPS18, IPS20) |
| B+4 | 60A | ICU Junction Block (Fuse Name - P/WINDOW LH, P/WINDOW RH, TAILGATE OPEN, SUNROOF, S/HEATER, AMP, P/SEAT (PASS), P/ SEAT (DRV)) |
| B+2 | 50A | ICU Junction Block (IPS4, IPS5, IPS6, IPS8, IPS9, IPS11, IPS12, IPS17) |
| COOLING FAN1 | 60A | Engine Room Junction Block (Cooling Fan 1 Relay) |
| B+5 | 50A | PCB Block (Main Relay, Fuse Name - ECU 4, ECU 3, B/ALARM HORN, HORN, A/C) |
| IG1 | 40A |
[With Smart Key] Engine Room Junction Block (ACC Relay, IG1 Relay) [Without Smart Key] Ignition Switch |
| BLOWER | 40A | Engine Room Junction Block (Blower Relay) |
| IG2 | 40A |
[With Smart Key] Engine Room Junction Block (IG2 Relay, Start Relay) [Without Smart Key] Engine Room Junction Block (Start Relay), Ignition Switch |
| PTC HEATER 1 | 50A | Engine Room Junction Block (PTC Heater 1 Relay) |
| PTC HEATER 2 | 50A | Engine Room Junction Block (PTC Heater 2 Relay) |
| FUEL PUMP | 20A | Engine Room Junction Block (Fuel Pump Relay) |
| TCU 1 | 15A | TCM (Transmission Control Module) |
| EPB 1 | 60A | ESC (Electronic Stability Control) Module (With EPB (Electronic parking brake)) |
| SGA | 40A | Smart Gear Actuator |
| EPB 2 | 40A | ESC (Electronic Stability Control) Module |
| ABS2 | 30A | ESC (Electronic Stability Control) Module (Without EPB (Electronic parking brake) |
| 4WD | 20A | 4WD ECM (Engine Control Module) |
| COOLING FAN 2 | 40A | [Nu 2.0 MPI] Engine Room Junction Block (Cooling Fan 1/2 Relay) |
| POWER OUTLET | 25A | ICM (Integrated Circuit Module) Relay Box (Power Outlet Relay) |
| VACUUM PUMP | 20A | Vacuum Pump |
| B+1 | 50A | ICU Junction Block (Long Term Loak Auto Cut Relay, Fuse - BRAKE SWITCH, MODULE 1, IBU 1, S/HEATER RR, AIR BAG 2, DOOR LOCK) |
| DCT 1/EOP | 40A | [DCT] TCM (Transmission Control Module) [Nu 2.0 MPI] Electronic Oil Pump Module |
| DCT 2 | 40A | [DCT] TCM (Transmission Control Module) |
| REAR HEATED | 30A | Engine Room Junction Block (Rear Heated Relay) |
| ECU1 | 20A | PCM (Power train Control Module) |
| ECU2 | 10A | Not Used |
| SENSOR1 | 15A | Oxygen Sensor (Up/Down) |
| SENSOR2 | 10A | Canister Close Valve, Oil Control Valve #1, Oil Control Valve #2, Oil Control Valve #3, Engine Room Junction Block (Cooling Fan 1/2 Relay), PCB Block (A/C Relay), Purge Control Solenoid Valve, Electronic Thermostat, Variable Intake Solenoid Valve |
| SENSOR3 | 10A | Engine Room Junction Block (Fuel Pump Relay) |
| IGN COIL | 20A | Ignition Coil #1~#4 |
| A/C | 10A | A/C Relay |
| B/ALARM HORN | 10A | B/Alarm Horn Relay |
| INJECTOR | 15A | Injector #1~#4 |
| ECU5 | 10A | PCM (Power train Control Module) |
| ABS3 | 10A | ESC (Electronic Stability Control) Module, Data Link Connector |
| TCU2 | 15A | Position Switch |
| SENSOR 4 | 15A | Electronic Oil Pump Module |
| ECU3 | 15A | PCM (Power train Control Module) |
| ECU4 | 15A | PCM (Power train Control Module) |
| HORN | 15A | Horn Relay |
