Ford Escape 2017 Fuse Box Info
Fuse box location:
The fuse panel is located on the right side below the glove box.
Engine compartment fuse box:

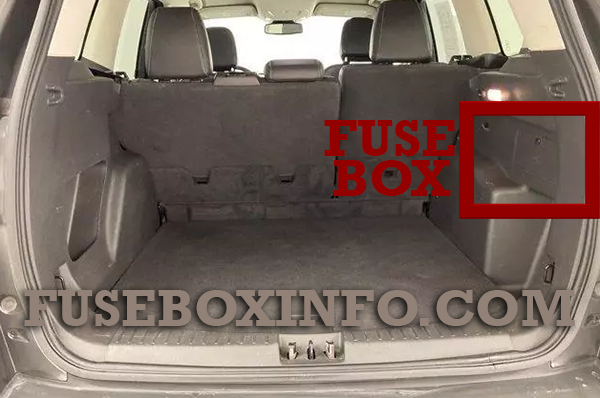

Luggage compartment fuse box:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 56 | 20A | Fuel pump supply |
| 57 | - | Not used |
| 58 | 5A | Interior lights relay |
| 59 | 5A | Passive anti-theft transceiver |
| 60 | 10A | Interior light, Driver door switch pack, Glove box light, Overhead console switch bank |
| 61 | 20A | Cigar lighter, Power point |
| 62 | 5A | Rain sensor module, Light sensor module |
| 63 | 10A | Front sensing module, Forward looking radar |
| 64 | - | Not used |
| 65 | 10A | Liftgate release |
| 66 | 20A | Driver door unlock |
| 67 | 7.5A | SYNC, Multifunction display, Global positioning system module |
| 68 | 15A | Electronic steering column lock |
| 69 | 5A | Instrument cluster |
| 70 | 20A | Central lock and unlock supply |
| 71 | 7.5A | Heating control head (manual A/C), Duel electronic automatic temperature control |
| 72 | 7.5A | Data link connector |
| 73 | 7.5A | Steering wheel module |
| 74 | 15A | Headlamp supply |
| 75 | 15A | Fog lamp |
| 76 | 10A | Reversing lamp |
| 77 | 20A | Washer pump |
| 78 | 5A | Ignition switch, Start button, Keyless vehicle module |
| 79 | 15A | Radio, Electronic finish panel, Hazard light switch, Door lock switch |
| 80 | 20A | Moonroof supply |
| 81 | - | Interior motion sensor supply, Radio frequency receiver supply, Panorama roof power/open |
| 82 | 20A | Washer pump |
| 83 | 20A | Central locking |
| 84 | 20A | Lock/unlock relay, Liftgate relay |
| 85 | 7.5A | Electronic 15 feed |
| 86 | 10A | Air bag module, Occupant classification system, Passenger air bag deactivation indicator |
| 87 | 15A | Heated steering wheel |
| 88 | 25A | KL30 feed |
| 89 | - | Not used |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | - | Not used |
| 2 | - | Not used |
| 3 | - | Not used |
| 4 | - | Not used |
| 5 | - | Not used |
| 6 | - | Not used |
| 7 | 50A | Anti-lock brake system and electronic stability program pump |
| 8 | 30A | Electronic stability program valve |
| 9 |
40A 50A |
Cooling fan (600W) Cooling fan (390W and 750W) |
| 10 | 40A | Heater blower motor |
| 11 | 30A | Body control module power feed, Voltage quality module |
| 12 | 30A | Powertrain control module relay |
| 13 | 30A | Starter relay |
| 14 | 25A | Cooling fan (600W and 750W) |
| 15 | 20A | Front cigar lighter or power outlet |
| 16 | - | Not used |
| 17 |
40A 50A |
Cooling fan (600W) Cooling fan (750W) |
| 18 | 20A | Center power outlet |
| 19 | 5A | Anti-lock brake system and electronic stability program 15 feed |
| 20 | 15A | Horn |
| 21 | 5A | Stop light switch |
| 22 | 15A | Battery monitor system |
| 23 | 5A | Relay coils |
| 24 | 5A | Light switch module |
| 25 | 10A | Occupant classification system |
| 26 | 25A | Oil pump |
| 27 | 15A | Air conditioner clutch |
| 28 | 10A | Vehicle power - fuel injector (2.5L engine), Blind spot information system and rear view camera (stop/start equipped vehicles) |
| 29 | - | Not used |
| 30 | 10A | Partially heated windshield |
| 31 | 5A | Powertrain control relay coil |
| 32 |
15A 10A |
Vehicle power (2.0L and 2.5L engine) Vehicle power (1.5L engine) |
| 33 |
10A 15A |
Vehicle power 2 (2.0L and 2.5L engine) Vehicle power 2 (1.5L engine) |
| 34 | 10A | Vehicle power 3 |
| 35 |
15A 10A |
Vehicle power 4 (2.0L and 2.5L engine) Vehicle power 4 (1.5L engine) |
| 36 | 5A | Active grill shutters |
| 37 | 10A | Passenger airbag deactivation indicator |
| 38 | 5A | Engine control module and transmission control module ignition feed |
| 39 | 20A | Heated driver seat |
| 40 | 5A | Electronic power assist steering 15 feed |
| 41 | 20A | Body control module 15 feed |
| 42 | 15A | Rear wiper |
| 43 | 15A | Headlamp control module supply |
| 44 | 5A | Forward looking radar |
| 45 | 20A | Heated passenger seat |
| 46 | 40A | Smart wiper motor modules |
| 47 | - | Not used |
| 48 | 5A | Keypad |
| R1 | - | Cooling fan (750W) |
| R2 | - | Horn |
| R3 | - | Not used |
| R4 | - | Not used |
| R5 | - | Cooling fan (750W) |
| R6 | - | Cooling fan (600W and 750W) |
| R7 | - | Partially heated windshield |
| R8 | - | Not used |
| R9 | - | Not used |
| R10 | - | Starter relay |
| R11 | - | Air conditioner clutch |
| R12 | - | Cooling fan |
| R13 | - | Heater blower |
| R14 | - | Engine control relay |
| R15 | - | Cooling fan (600W and 750W) |
| R16 | - | Ignition 15 |
Luggage compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 5A | Hands-free liftgate entry module |
| 2 | 15A | Heated outside mirror (without door control unit), Heated wiper park |
| 3 | 5A | Keyless vehicle door handles |
| 4 | 25A | Door control unit front left |
| 5 | 25A | Door control unit front right |
| 6 | 25A | Door control unit rear left |
| 7 | 25A | Door control unit rear right |
| 8 | 25A | Passenger seat |
| 9 | 25A | Driver seat |
| 10 | 5A | Driver seat memory module logic feed |
| 11 | 5A | Rear ignition coil feed |
| 12 | - | Not used |
| 13 | - | Not used |
| 14 | 25A | High current power windows (driver) |
| 15 | 25A | High current power windows (driver and passenger) |
| 16 | - | Not used |
| 17 | - | Not used |
| 18 | - | Not used |
| 19 | - | Not used |
| 20 | 5A | Embedded modem |
| 21 | - | Not used |
| 22 | 25A | Heated rear window |
| 23 | 25A | Audio amplifier |
| 24 | 30A | DC/AC power converter |
| 25 | 25A | Power liftgate |
| 26 | 40A | Rear power outlet |
| 27 | 20A | Luggage compartment power outlet |
| 28 | 40A | Trailer tow |
| 29 | 5A | Blind spot detection system, Rear view camera with park assist |
| 30 | 5A | Parking aid module |
| 31 | - | Not used |
| 32 | 5A | DC/AC power converter |
| 33 | 10A | High current power window switch |
| 34 | - | Not used |
| 35 | - | Not used |
| 36 | - | Not used |
| 37 | - | Not used |
| 38 | - | Not used |
| 39 | - | Not used |
| 40 | - | Not used |
| 41 | - | Not used |
| 42 | - | Not used |
| 43 | - | Not used |
| 44 | - | Not used |
| 45 | - | Not used |
| 46 | 5A | Heated outside mirror relay coil |
| R1 | Power relay | Delay accessory relay |
| R2 | - | Rear 15 relay |
| R3 | - | Heated rear window relay |
| R4 | - | Not used |
| R5 | - | Not used |
| R6 | - | Heated outside mirror relay |
