Ford EcoSport 2022 Fuse Box Info

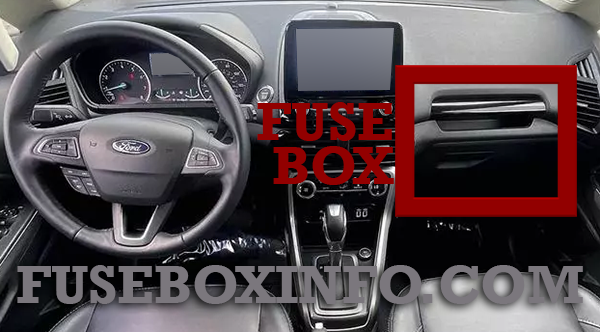

Passenger compartment fuse box location:
The fuse box is located behind the glove box. Open the glove box and release the clips, remove the storage compartment.
The fuse box is located behind the glove box. Unattach and remove the plastic cover.

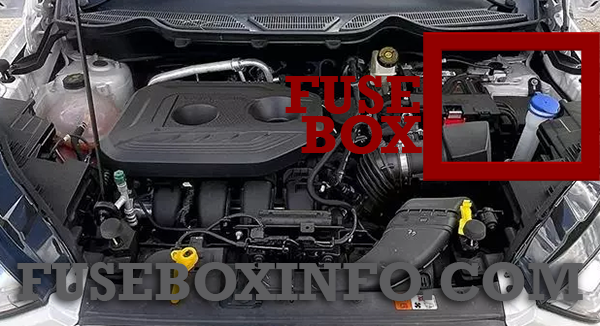

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 5A | Restraints control module |
| 2 | 5A | Humidity and incar temperature sensor |
| 3 | 10A | Reverse parking aid module |
| 4 | 10A | Ignition switch, Push start switch, Key in switch |
| 5 | 20A | Central lock relay (BCM internal relay), Central unlock relay (BCM internal relay) |
| 6 | 10A | Driver and passenger power window switch illumination (Driver one touch up/down only), Driver power window switch delayed accessory (Driver one touch up/down only), Moonroof switch illumination, Moonroof module Delayed Accessory |
| 7 | 30A | Driver Door Control Module (Right hands drive), Passenger Door Control Module (Left hands driver) |
| 8 | 5A | Not used |
| 9 | 5A | Electrochromic inside mirror, Gear shift, Passenger airbag deactivation indicator |
| 10 | 10A | Smart data link connector – power |
| 11 | 5A | Vehicle With Embedded Modem Module (only) |
| 12 | 5A | Intrusion sensor module (RHD), Inclination Sensor module (RHD) |
| 13 | 15A | Driver Unlock relay (BCM internal relay), Double Lock relay (BCM internal relay) |
| 14 | 30A | Driver Power Window switch power (Right hands driver, driver one touch up/down), Rear right door control module |
| 15 | 15A | Trailer tow |
| 16 | 15A | Forward-looking camera |
| 17 | 15A | SYNC, Electronic finish panel |
| 18 | 7.5A | Not used |
| 19 | 7.5A | Battery backup sounder module (RHD) |
| 20 | 10A | Not used |
| 21 | 7.5A | Climate control module |
| 22 | 7.5A | Smart data link connector – logic, Steering column control module, Instrument cluster |
| 23 | 20A | Audio control module, CD player module |
| 24 | 20A | Not used |
| 25 | 30A | Power window motors (Driver one touch up/down) |

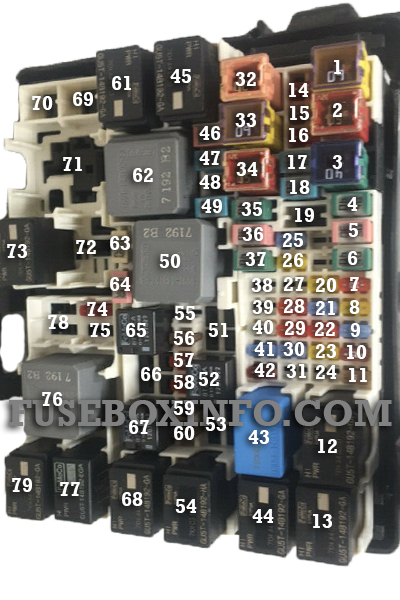

Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 60A | Engine cooling fan relay 2 |
| 2 | 50A | Engine cooling fan relay 1 |
| 3 | 60A | Glow Plug relay (Diesel) |
| 4 | 40A | ABS with electronic stability program valves |
| 5 | 20A | Steering column lock relay |
| 6 | 40A | Front blower motor relay |
| 7 | 10A | Brake on/off Switch |
| 8 | 20A | Moonroof module |
| 9 | 15A | Rear washer relay, Front wiper motor relay coil |
| 10 | 7.5A | A/C clutch relay |
| 11 | 5A | Power point relay coil, Horn relay coil, Fuel pump relay coil (except Diesel) |
| 12 | - | Powertrain control module relay |
| 13 | - | Starter relay |
| 14 | 10A | Heated mirrors |
| 15 | 5A | Rain sensor, Rear washer relay coil |
| 16 | 10A | Rear window wiper motor |
| 17 | 20A | Front power point / Cigar lighter |
| 18 | 20A | Rear power point |
| 19 | - | Not used |
| 20 |
20A 30A |
Powertrain control module Powertrain control module (Diesel DV5FD) |
| 21 | 15A | Oxygen sensor heater, Catalyst monitor sensor (1.0L), Canister purge valve (1.0L), Variable camshaft timing solenoid valves (1.0L), Volume control valve - fuel metering unit (Diesel DV5FD), EGR Cooler Bypass control (Diesel DV5FD), Vacuum Solenoid valve (Diesel DV5FD) |
| 22 | 10A | Engine cooling Fan 1 relay coil, Engine cooling Fan 2 relay coil, A/C Clutch relay coil, Variable A/C compressor valve, Variable oil pump control (1.0L), Electronic vacuum regulator valve (1.0L), Puller fan relay coil (1.0L), Run/On water pump (1.0L), Auto transmission warmer unit, Active Griller Shutter, All Wheel Drive Module |
| 22 | 5A | Engine Cooling Fan 1 relay coil (Diesel DV5FD), Engine cooling Fan 2 relay coil (Diesel DV5FD), A/C Clutch relay coil (Diesel DV5FD), Glow plug relay coil (Diesel DV5FD), Active Grill Shutter (Diesel DV5FD), Fuel Pump relay coil (Diesel DV5FD) |
| 23 | 20A | Ignition coils (1.0L) |
| 24 | - | Not used |
| 25 | 15A | Amplifier module power 1 |
| 26 | 20A | Trailer tow module – battery Charge |
| 27 | - | Not used |
| 28 | 10A | Left horn |
| 29 | 10A | Right horn |
| 30 | 15A | Heated Steering wheel |
| 31 | - | Not used |
| 32 | 30A | Body control module battery power |
| 33 | 60A | ABS with electronic stability program pump |
| 34 | 50A | Trailer tow module |
| 35 | 40A | Heated backlite relay, Radio diversity antenna |
| 36 | 30A | Starter relay |
| 37 | 40A | Supplemental air heater 1 relay |
| 38 | 20A | Left low beam lamp relay |
| 39 | 20A | Right low beam lamp relay |
| 40 | 25A | Heated seats |
| 41 | 15A | Amplifier module power 2 |
| 42 | 7.5A | Puller fan relay (1.0L) |
| 43 | - | Power point relay |
| 44 | - | Front wiper motor relay |
| 45 | - | Front blower relay |
| 46 | 30A | Rear left door control module, Driver power window switch power (Left hands drive, Driver One Touch Up/Down only) |
| 47 |
20A 25A |
Fuel pump relay (1.0L) Electronic Fuel Pump relay (Diesel DV5FD) |
| 48 | 30A | Passenger door control module (right hands drive), Driver Door Control Module (Left hands drive) |
| 49 | 20A | Transmission Oil Pump power (1.0L), Fuel Heater relay (Diesel) |
| 50 | - | Run/start relay |
| 51 | - | Steering column lock relay |
| 52 | - | Horn relay |
| 53 | - | Left low beam lamp relay |
| 54 | - | Rear washer relay |
| 55 | 10A | Headlamp leveling |
| 56 | 5A | Electrical power assisted system module, Powertrain control module |
| 57 | 10A | Transmission Oil Pump logic (1.0L), Fuel Heater relay coil (Diesel) |
| 58 | 10A | Rear view camera, Blind spot modules |
| 59 | 5A | ABS module |
| 60 | 5A | Heated backlite relay coil, Heated windshield right/left relay coil |
| 61 | - | Heated Backlite relay, Heated mirrors, Radio diversity antenna |
| 62 | - | Engine cooling fan 2 relay |
| 63 | 25A | Front wiper motor |
| 64 | 30A | Body control module - run/start bus |
| 65 | - | Fuel pump relay (1.0L), Fuel Heater relay (Diesel) |
| 66 | - | Right low beam lamp relay |
| 67 | - | A/C clutch relay |
| 68 | - | Engine cooling fan 1 relay |
| 69 | 40A | Heated windshield left |
| 70 | 40A | Heated windshield right |
| 71 | - | Glow Plug relay (Diesel) |
| 72 | - | Heated windshield right relay |
| 73 | - | Heated windshield left relay |
| 74 | - | Not used |
| 75 | - | Not used |
| 76 | - | Supplemental air heater 2 relay |
| 77 | - | Puller Fan relay (1.0L), Electronic Fuel Pump relay (Diesel DV5FD) |
| 78 | - | Not used |
| 79 | - | Supplemental air heater 1 relay |
Battery Fuse Box (This fuse box in attached to the battery positive terminal):
| Fuse/Relay N° | Rating | Functions |
| 1 | 250A | Engine compartment fuse box |
| 2 | 60A | Electronic power steering module |
| 3 | 100A | Body control module |
| 4 | 70A | Supplemental air heater 2 relay |
| 5 | 275A | Starter |
