Fiat Fiorino 2015 Fuse Box Info
Passenger compartment fuse box location:

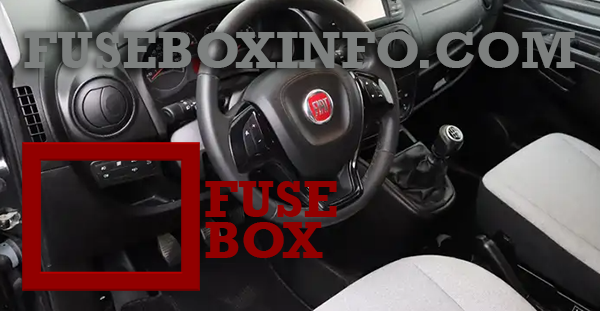

The fuse box is located on the driver's side under the instrument panel.
Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 12 | 7.5A | Dipped beam headlight (on passenger’s side) |
| 13 | 7.5A | Dipped beam headlight (on driver’s side)/Headlight aiming control |
| 31 | 5A | INT/A relay reels SCM |
| 32 | 7.5A | Timed internal lighting |
| 36 | 10A | Bluetooth® sound system/central unit node/Blue&Me™ node/Troubleshooting outlet for EOBD system/Volumetric alarm control unit/Alarm siren control unit |
| 37 | 5A | Instrument panel/Stop light control node (NA) |
| 38 | 20A | Door/boot lock actuators |
| 43 | 15A | Widow/rear window washer two direction pump |
| 47 | 20A | Front power window (on driver’s side) |
| 48 | 20A | Front power window (on passenger’s side) |
| 49 | 5A | Control lighting/Parking sensor control unit/Electric door mirror control/Volumetric alarm control unit |
| 50 | 7.5A | Airbag control unit |
| 51 | 5A | INT Sound system node/Bluetooth® central unit node/Blue&Me™ node/Movement of electric door mirrors/Clutch switch/Stop light control (NC) |
| 53 | 5A | Instrument panel node |
| 41 | 7.5A | Door mirror defrosters |
| 45 | - | Available |
| 46 | - | Available |
| 90 | - | Available |
| 91 | - | Available |
| 92 | - | Available |
| 93 | - | Available |
| 94 | 15A | Cigar lighter |
| 95 | - | Available |
| 96 | 15A | Passenger compartment current outlet |
| 97 | 10A | Front seat heater (on driver’s side) |
| 98 | 10A | Front seat heater (on passenger’s side) |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 01 | 60A | Computer Body |
| 02 | - | Available |
| 05 | - | Available |
| 06 | 20A | One-speed engine cooling electric fan (75W)/ Low speed engine cooling electric fan (187W) |
| 06 | 30A | Low speed engine cooling electric fan (350W) |
| 07 | 30A | High speed engine cooling electric fan (187W) |
| 07 | 40A | High speed engine cooling electric fan (350W) |
| 83 | 40A | Climate system electric fan |
| (F09) | (15A) | Available (trailer kit) |
| 10 | 10A | Buzzers |
| 14 | 15A | Main beam headlights |
| 15 | - | Available |
| 19 | 7.5A | Climate system compressor |
| 20 | 30A | Rear heated window/Mirror demisters |
| 21 | 15A | Fuel pump |
| 30 | 15A | Fog lights |
| 08 | - | Available |
| 85 | 30A | Cigar lighter/Passenger compartment current outlets/Heated seats |
| 87 | 7.5A | +15 Reverse lights/decimetre/Water sensor in diesel fuel/ Reels for relays T02, T05, T14, T17 and T19 |
