Dodge Charger 2027 Fuse Box Info

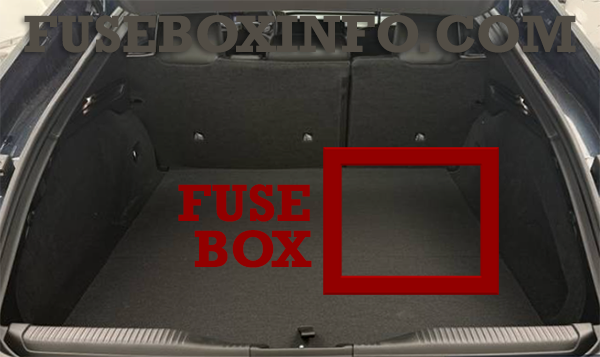

Luggage compartment fuse box location:
The luggage fuse box is located in the trunk under the spare tire access panel.

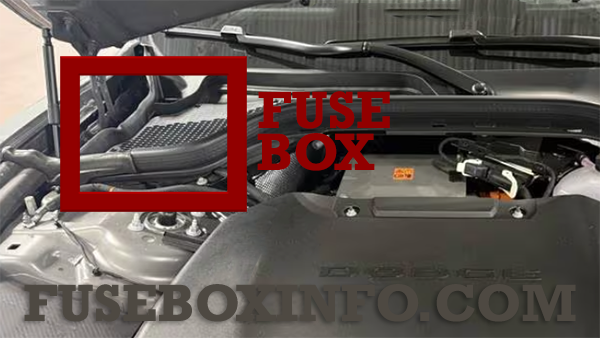

Under hood compartment fuse box location:
Fuse Box Diagram | Layout
Luggage compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 01 | - | NOT POPULATED |
| 02 | - | NOT POPULATED |
| 03 | SHUNT | (GAS) AUX BATTERY / (BEV) MAIN BATTERY |
| 04 | 100A | NOT POPULATED |
| 05 | 150A | (GAS) FEED TO uPDC / (BEV) NOT POPULATED |
| 06 | - | NOT POPULATED |
| 07 | - | NOT POPULATED |
| 08 | - | NOT POPULATED |
| 09 | - | NOT POPULATED |
| 10 | - | NOT POPULATED |
| 11 | 50A | MOD_BCM FEED #2 |
| 12 | - | NOT POPULATED |
| 13 | - | NOT POPULATED |
| 14 | 20A | MOD DOOR MUX_PASSENGER REAR OR SMART MOTOR |
| 15A | 10A | INTELLIGENT EVENT BASE LIGHTING MODULE / ANIMATION LIGHTING - TAILLAMP |
| 15B | 10A | OCCUPANT RESTRAINT CONTROLLER (ORC) |
| 16 | 10A | (BEV) IDCM |
| 17 | - | NOT POPULATED |
| 18 | 20A | (BEV) ELECTRIC OIL PUMP - EDM REAR |
| 19A | 10A | (BEV) EVCU - 2_FEED #2 |
| 19B | 10A | DIGITAL TV (DTV) JAPAN / ASSY_OVERHEAD_CONSOLE - OHC W SUNSHADE |
| 20A | 10A | (BEV) ELECTRIC DRIVE MOTOR FEED #1 FRONT |
| 20B | 10A | (BEV) ELECTRIC DRIVE MOTOR FEED #2 FRONT |
| 21A | 10A | ELECTRIC DRIVE MOTOR FEED #1 - REAR |
| 21B | 10A | HVIL - MAIN POWER FEED / HVIL - REDUNDANT POWER FEED |
| 22 | - | NOT POPULATED |
| 23 | 10A | MOD_CVPAM / CVADAS |
| 24 | - | NOT POPULATED |
| 25 | - | NOT POPULATED |
| 26 | 20A | (BEV) ELECTRIC DRIVE MOTOR FEED #2 - REAR |
| 27 | - | NOT POPULATED |
| 28 | - | NOT POPULATED |
| 29A | 15A | INSTRUMENT PANEL CLUSTER (IPC) / DRIVETRAIN CONTROL MODULE (DTCM) / DRIVER ASSISTANCE SYSTEM MODULE (DASM) / EVCU-2 / HVAC_CTRL_FT |
| 29B | 15A | (BEV) FRONT AXLE DISCONNECT (FAD) / WHEL END DISCON NECT |
| 30 | 30A | MOD_MEMORY / POWER SEAT - PASS FRT |
| 31 | - | NOT POPULATED |
| 32 | - | NOT POPULATED |
| 33 | - | NOT POPULATED |
| 34 | 30A | ELECTRONIC LIMITED SLIP DIFFERENTIAL (ELSD) - REAR #1 |
| 35 | - | NOT POPULATED |
| 36A | 10A | L2: DRIVER ALERT LIGHTING MODULE (DALM) / ADAS_E_STOP / BEV: EVCU-2 / E_STOP |
| 36B | 10A | (BEV) QUIET VEHICLE PEDESTRIAN MODULE (QVPM) |
| 37 | - | NOT POPULATED |
| 38 | 5A | AUTOMATIC GEARBOX SHIFTER MODULE (AGSM) |
| 39 | 20A | MODULE SEAT HEATER FRT (PASS) |
| 40 | 30A | MOD AUDIO AMPLIFIER #1 A |
| 41 | 30A | MOD DOOR MUX_DRIVER |
| 42A | - | NOT POPULATED |
| 42B | - | NOT POPULATED |
| 43 | 30A | AMPLIFIER - SOUND GENERATOR #1A |
| 44A | 20A | 12V POWER OUTLET - CARGO AREA - IGN |
| 44B | 20A | 12V POWER OUTLET - CONSOLE BIN |
| 45 | 15A | WIRELESS CHARGING PAD - FT. CONSOLE |
| 46 | 30A | MOD_MEMORY / POWER SEAT - DRIVER FRT |
| 47 | 20A | EVCU - 2_FEED #3 |
| 48 | 30A | MOD DOOR MUX_PASSENGER |
| 49 | 30A | AMPLIFIER - SOUND GENERATOR #1B |
| 50 | 10A | OCCUPANT RESTRAINT CONTROLLER (ORC) |
| 51 | 10A | CHARGE PORT INDICATOR (CPIM) / ELECTRIC AC COMPRESSOR (IOD) / BATTERY CHARGE INDICATOR |
| 52 | 10A | ANIMATION LIGHTING - RR LT |
| 53 | 20A | EVCU - 2_FEED #4 |
| 54 | 20A | MOD DOOR MUX_DRIVER REAR OR SMART MOTOR |
| 55 | - | NOT POPULATED |
| 56 | - | NOT POPULATED |
| 57 | 20A | HAPTIC LANE FEEBACK MODULE (HALF) / OCCUPANT CLASSIFICATION MODULE (OCM) / MOD_SECURITY GATEWAY (SGW) / PARKTRONICS SYSTEM MODULE (PTS) |
| 58 | 15A | BATTERY PACK CONTROL MODULE (BPCM) |
| 59 | 15A | TELEMATICS BOX MODULE (TBM) / VEHICLE THEFT MODULE (VTM) / GATEWAY SECURITY MOD / ALARM SIREN UNIT (ASU) / ULTRA-SONIC ALARM MODULE (UAM) |
| 60 | - | NOT POPULATED |
| 61 | - | NOT POPULATED |
| 62 | 20A | MODULE SEAT HEATER FRT (DRIVER) |
| 63 | - | NOT POPULATED |
| 64 | 5A | NFC DOOR HANDLE #2 |
| 65 | 10A | ANIMATION LIGHTING - RR RT |
| 66 | 30A | POWER LIFTGATE MODULE |
| 67 | 20A | MOD_CRSM (HEATED SEAT RR LT) |
| 68 | 15A | ASSY_MIRROR_INSIDE_RR_VIEW / SUNROOF-DUAL_PANE / DTV (CHINA/JAPAN) / PORT_UCI_2_CONSOLE |
| 69 | 15A | LUMBAR SUPPORT DRIVER & PASSENGER SW |
| 70 | 10A | EVCU - 2_FEED #1 |
| 71 | 15A | BATTERY PACK CONTROL MODULE (BPCM) - REDUNDANT / EX HAUST FLAPPER VALVE LT/RT (ICE ONLY) |
| 72 | 10A | HEATED SEAT SWITCH - RR RT & RR LT |
| 73 | - | NOT POPULATED |
| 74 | 30A | MOD AUDIO AMPLIFIER #1B |
| 75 | 5A | NFC DOOR HANDLE #3 |
| 76 | 5A | NFC DOOR HANDLE #4 |
| 77 | 20A | MOD_CRSM (HEAT SEAT RR RT) |
| 78 | 40A | MOD_BCM FEED #3 |
| 79 | - | NOT POPULATED |
| 80 | - | NOT POPULATED |
| 81 | 15A | FRONT PASSENGER DISPLAY MODULE (FPDM) / PORT_UCI_DU AL - USB-FRONT - IP / REAR WINDOW SWITCHES / MOD_HVAC_CTRRL_FT / SW_BANK_UPPER (ASBM#2) |
| 82 | 15A | MOD_COMFORT STEERING WHEEL SURFACE |
| 83 | - | NOT POPULATED |
| 84 | 15A | MID RANGE SENSOR REAR RIGHT (MRSRR) |
| 85 | 15A | UWB_SNSR (1-7) |
| 86 | 5A | NFC DOOR HANDLE #1 |
| 87 | - | NOT POPULATED |
| 88 | - | NOT POPULATED |
| CB1 | 10A | MOD_SPAAK |
Under hood compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 01 | SHUNT | MAIN BATT INPUT |
| 02 | 80A | NOT POULATED |
| 03 | 500A | ICE: STARTER |
| 04 | 250A | ALTERNATOR (ICE) / IDCM (BEV 400V) |
| 05 | 80A | NOT POPULATED |
| 06 | SHUNT | ICE: FEED FROM rPDC / BEV: NOT POPULATED |
| 07 | 100A | W/O L2+: RAD FAN W/L2+: NOT POPULATED |
| 08 | 80A | EPS #1 |
| 09 | 80A | EPS #2 |
| 10 | 100A | NOT POPULATED |
| 11 | 150A | CRANK BATT INPUT TO DBSM /PCR FUSE |
| 12 | 40A | (GAS) STARTER #1 AND STARTER #2 FUSE |
| 13 | - | NOT POPULATED |
| 14 | - | NOT POPULATED |
| 15 | - | NOT POPULATED |
| 16 | 25A | FUEL PUMP MTR 1 |
| 17 |
30A 20A |
SPARE ELECTRIC OIL PUMP - EDM FRONT 400V (IF EQUIPPED) |
| 18 | - | NOT POPULATED |
| 19 | 50A | BSM VALVES |
| 20 | - | NOT POPULATED |
| 21 | - | NOT POPULATED |
| 22 | 10A | (GAS) POWER CONTROL RELAY COIL |
| 23 | 10A | (GAS) (ESS) MOD_ECM (VOLTAGE SENSE) |
| 24 | 10A | (BEV) AUX HEATER PUMP |
| 25 |
10A 5A |
ELECTRIC AC COMPRESSOR (GAS) ELECTRIC AC COMPRESSOR (BEV) / ELECTRIC EXPANSION VALVE (EEXV) |
| 26 | 20A | SLM FEED_LT |
| 27 | - | NOT POPULATED |
| 28 | 15A | (BEV) COOLANT PROPORTIONING VALVE / HTL & LTR BYPASS VALVE |
| 29 | - | NOT POPULATED |
| 30 | 10A | KEYLESS IGNITION NODE MODULE (KINM) / RADIO FREQUENCY HUB (RFHM) / ELETRIC PARK BRAKE (EPB) SWITCH |
| 31 | - | NOT POPULATED |
| 32 | - | NOT POPULATED |
| 33 | 5A | (BEV) ELECTRIC COOLANT HEATER (ECH) |
| 34 | 20A | HORN |
| 35 | 20A | (BEV) PECP (POWER ELECTRONICS COOLANT PUMP) |
| 36 | - | NOT POPULATED |
| 37 | 20A | (BEV) BATTERY COOLANT PUMP (BCP) |
| 38 | - | NOT POPULATED |
| 39 | 10A | ELECTRIC POWER STEERING (EPS) #1 |
| 40 | 20A | ELECTRIC POWER STEERING (EPS) #2 / BRAKE SYSTEM MODULE (BSM) #2 / ESCL / MOD IAIR SUSPENSION / SWITCHABLE ENGINE MOUNT #1 & #2 |
| 41 | 10A | ENGINE CONTROL MODULE (ECM) / TRANSMISSION CONTROL MODULE (TCM) / ECC (HVAC) BLOWER RELAY COIL / BSM #1 / ELSD / MOD_SLM |
| 42 | 10A | LONG RANGE RADAR FRONT |
| 43 | - | NOT POPULATED |
| 44 | - | NOT POPULATED |
| 45 | 20A | ADCM |
| 46 | 10A | DAMPING CONTROL MODULE |
| 47 | - | NOT POPULATED |
| 48 | - | NOT POPULATED |
| 49 | 30A | FRONT WINDSHIELD DEFROST |
| 50 | 40A | ECC (HVAC) BLOWER |
| 51 | 50A | (GAS) TRANSMISSION CONTROL MODULE (TCM) |
| 52 | 10A | (GAS) ENGINE CONTROL MODULE (ECM) |
| 53 | 20A | RADIO (CMCM) |
| 54 | 20A | SLM FEED_RT |
| 55 | - | NOT POPULATED |
| 56 | - | NOT POPULATED |
| 57 | - | NOT POPULATED |
| 58 | 10A | PORT DIAGNOSTICS |
| 59 | 15A | NOT POPULATED |
| 60 |
15A 20A |
(GAS) LTR COOLANT PUMP (B+) (BEV) PECP-2 (B+) |
| 61 | 5A | MID RANGE RADAR REAR L&R / MID RANGE RADAR FRONT L&R |
| 62 | 30A | (BEV) MOD IAIR SUSPENSION VALVES |
| 63 | 10A | STEERING COLUMN CONTROL MODULE (SCCM) |
| 64 | 10A | OUTSIDE HEAT EXCHANG EXPANSION VALVE MODULE (OEXV) / CHILLER EXPANSION VALVE MODULE (CEXV) - IF EQUIPPED |
| 65 | 7.5A | HEATED WASHER NOZZLE |
| 66 | 15A | ACTIVE SWAY BAR SYSTEM (ASBS) / ELECTRONIC STEERING COLUMN LOCK (ESCL) / GRILL / BADGE LAMP |
| 67 | 15A | INSTRUMENT PANEL CLUSTER (IPC) |
| 68 | 20A | TRANSMISSION CONTROL MODULE |
| 69 | 10A | MOD_DCSD / HANDSFREE LIFTGATE MODULE / UCI + USB PORT / HUMIDITY AND RAIN LIGHT SENSOR (HRLS) / ACT_COOLANT_VALVE-LCVM / MAP TRACK ING MODULE (MIM) / ACTIVE GRILL SHUTTER (AGS) |
| 70 | - | NOT POPULATED |
| 71 | - | NOT POPULATED |
| 72 | 10A | ADCAM |
| 73 | 15A | NOT POPULATED |
| 74 | 15A | (GAS) SURGE SOLENOID, OIL_LEVEL_SENSOR, SOL_MAKE_UP_AIR_VALVE, SOL_OBD_BYPASS, 02 HEATER #1 - #4 |
| 75 | 25A | (GAS) ENGINE CONTROL MODULE (ECM) / ACT_SHORT_RUNNER_VALVE |
| 76 | 20A | (GAS) FUEL INJECTORS / IGNITION COILS / IGNITION COIL CAPACITORS / MOD_ISCM / COIL_ON_PLUG*6 |
| 77 | - | NOT POPULATED |
| 78 |
50A 40A |
(BEV) MOD AIR SUSPENSION (GAS) HVAC BLOWER |
| 79 | 30A | REAR DEFROSTER (EBL) |
| 80 | 40A | BCM FEED 4 |
| 81 | 20A | (GAS) MOD_ECM |
| 82 | 30A | FRT WIPER FUSE |
| 83 | 50A | BCM FEED 1 |
| 84 | 30A | DRIVE TRAIN CONTROL MODULE (DTCM) |
| 85 | 50A | BSM PUMP |
