Chrysler Town & Country 2013 Fuse Box Info

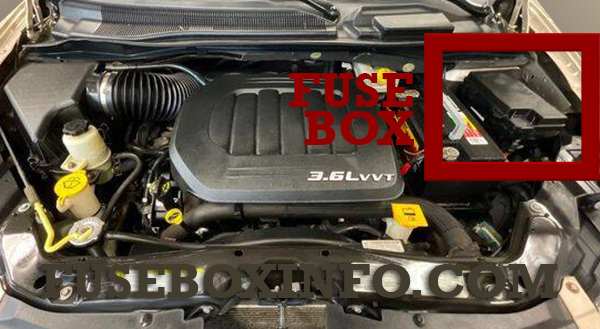

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| Cartridge Fuses |
||
| J1 | 40A | Power Folding Seat |
| J2 | 30A | Power Liftgate Module |
| J3 | 30A | Rear Door Module |
| J4 | 25A | Driver Door Node |
| J5 | 25A | Passenger Door Node |
| J6 | 40A | Antilock Brakes Pump/Stability Control System |
| J7 | 30A | Antilock Brakes Valve/Stability Control System |
| J8 | 40A | Power Memory Seat – If Equipped |
| J9 | 40A | Partial Zero Emissions Vehicle Motor/Flex Fuel – If Equipped |
| J10 | 30A | Headlamp Wash/Manifold Tuning Valve – If Equipped |
| J11 | 30A | Power Sliding Door Module/Anti–Theft Module – If Equipped |
| J12 | 30A | HVAC Rear Blower, Radiator Fan Motor |
| J13 | 60A | Ignition Off Draw (IOD) — Main |
| J14 | 40A | Rear Window Defogger |
| J15 | 30A | Rear Blower |
| J17 | 40A | Starter Solenoid |
| J18 | 20A | Powertrain Control Module Trans Range |
| J19 | 60A | Radiator Fan |
| J20 | 30A | Front Wiper LO/HI |
| J21 | 20A | Front/Rear Washer |
| J22 | 25A | Sunroof Module |
| Mini Fuses | ||
| M1 | 15A | Rear Center Brake Lamp/Brake Switch |
| M2 | 20A | Front Fog Lamps |
| M3 | 20A | Front/Rear Axle Locker, Vacuum Pump Motor |
| M4 | 10A | Trailer Tow |
| M5 | 25A | Inverter |
| M6 | 20A | Power Outlet #1 (ACC), Rain Sensor, Cigar Lighter (Instrument Panel or with Console Rear) |
| M7 | 20A | Power Outlet #2 (BATT/ACC SELECT) – Center Seat or with Console Rear |
| M8 | 20A | Front Heated Seat – If Equipped |
| M9 | 20A | Rear Heated Seat – If Equipped |
| M10 | 15A | Ignition Off Draw - Video System, Satellite Radio, DVD, Hands-Free Module, Universal Garage Door Opener, Vanity Lamp, Streaming Video Module – If Equipped |
| M11 | 10A | Climate Control System |
| M12 | 30A | Amplifier/Radio |
| M13 | 20A | Instrument Cluster, SIREN, Clock Module, Multi-Function Control Switch – If Equipped |
| M14 | 20A | Trailer Tow – If Equipped |
| M15 | 20A | Rear View Mirror, Instrument Cluster, Multi-Function Control Switch, Tire Pressure Monitor, Glow Plug Module – If Equipped |
| M16 | 10A | Airbag Module/ Occupant Classification Module |
| M17 | 15A | Left Tail/License/Park Lamp, Running Lamps |
| M18 | 15A | Right Tail/Park/Run Lamp |
| M19 | 25A | Powertrain |
| M20 | 15A | Instrument Cluster Interior Light, Switch Bank, Steering Column Module, Switch Steering Wheel |
| M21 | 20A | Powertrain |
| M22 | 10A | Horn |
| M23 | 10A | Horn |
| M24 | 25A | Rear Wiper |
| M25 | 20A | Fuel Pump, Diesel Lift Pump – If Equipped |
| M26 | 10A | Power Mirror Switch, Driver Window Switch |
| M27 | 10A | Wireless Control Module, Keyless Entry Module |
| M28 | 10A | Powertrain, Transmission Control Module |
| M29 | 10A | Occupant Classification Module |
| M30 | 15A | Rear Wiper Module, Power Folding Mirror |
| M31 | 20A | Back-Up Lamps |
| M32 | 10A | Airbag Module, THATCHUM – If Equipped |
| M33 | 10A | Powertrain |
| M34 | 10A | Park Assist, Heater Climate Control Module, Headlamp Wash, Compass, Rear Camera, Door Lamps, Flashlight, Relay Diesel Cabin Heater, Rad Fan Diesel – If Equipped |
| M35 | 10A | Heated Mirrors |
| M36 | 20A | Power Outlet #3 (Instrument Panel or with Console Center) |
| M37 | 10A | Antilock Brakes, Stability Control, Stop Lamp, Fuel Pump |
| M38 | 25A | Door Lock/Unlock Motors, Liftgate Lock/Unlock Motors |
