Chrysler Voyager 2020 Fuse Box Info

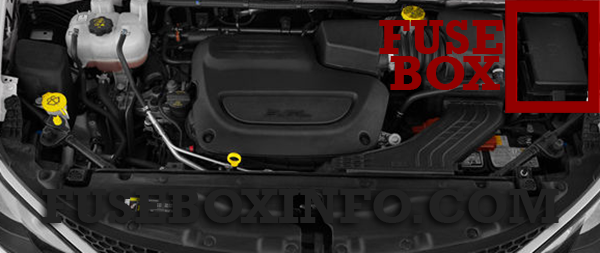

Engine fuse box location:
The Power Distribution Center is located in the engine compartment near the battery.
Fuse Box Diagram | Layout
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 06 | - | Not Used |
| 07 | 25A | Ignition Coil/Fuel Injector |
| 08 | - | Not Used |
| 09 | 25A | Amplifier/Active Noise Control |
| 10 | - | Not Used |
| 11 | - | Not Used |
| 12 | 5A | Battery Sensor (IBS) |
| 13 | 10A | ECM (ESS Only) |
| 14 | 10A | ECM |
| 15 | 40A | CBC Feed #3 (Power Locks) |
| 16 | 20A | ECM |
| 17 | 30A | Starter |
| 18 | 40A | CBC Feed #4 (Exterior Lighting #1) |
| 19 | 25A | 2nd Row Folding Seats Solenoid LT |
| 20 | 10A | A/C Compressor Clutch |
| 21 | 25A | 2nd Row Folding Seat Solenoid RT |
| 22 | - | Not Used |
| 23 | - | Not Used |
| 24 | 20A | RR Wiper |
| 25A | 10A | Handsfree LT & RT RR Door Release Mod |
| 25B | 10A | Active Grill Shutter/ PWR Mirror |
| 26 | 40A | Front HVAC Blower Motor |
| 27 | 25A | RR Slide Door Module-RT |
| 28A | 10A | Diagnostic Report |
| 28B | 10A | USB + AUX Port / Video USB Port |
| 29 | - | Not Used |
| 30A | 15A | Media HUB 1&2 |
| 30B | 15A | PWR Lumbar SW |
| 31 | - | Not Used |
| 32 | 20A | ECM |
| 33 | 30A | Power Liftgate Module |
| 34 | 25A | RR Door Module-LT |
| 35 | 25A | Sunroof Control Module |
| 36 | - | Not Used |
| 37 | 40A | CBC Feed #4 (Exterior Lighting #2) |
| 38 | 60A | Vacuum Cleaner |
| 39 | 25A | Rear HVAC Blower Motor |
| 40 | - | Not Used |
| 41 | - | Not Used |
| 42 | 40A | Folding Seat Module |
| 43 | 20A | Fuel Pump Motor |
| 44 | 30A | CBC Feed #1 (Interior Lights) |
| 45 | 30A | Power Inverter |
| 46 | 30A | Driver Door Module |
| 47 | 30A | Passenger Door Module |
| 48 | - | Not Used |
| 49 | 25A | RR Sliding Door Module-LT |
| 50 | 25A | RR Door Module-RT |
| 51 | 30A | Front Wiper |
| 52 | 30A | Brake Vacuum Pump |
| 53 | - | Not Used |
| 54 | 40A | ESP-ECU And Valves |
| 55A | 15A | Radio Frequency HUB/ Keyless Ignition System (KIN) / (Electronic Steering Lock-BUX ONLY) |
| 55B | 15A | DVD / Video Routing Module (VRM) |
| 56A | 10A | Front and Rear HVAC Control Module / Occupant Classification Module (OCM)/Electronic Steering Lock (ESL) |
| 56B | 10A | ESP/ESC |
| 57 | - | Not Used |
| 58 | 10A | Drive Train Control Mod / Power Transfer Unit — If Equipped |
| 59 | 30A | Trailer Tow Receptacle — If Equipped |
| 60 | 20A | Rear Cargo APO |
| 61 | 20A | Trailer Tow Right Stop/Turn — If Equipped |
| 62 | - | Not Used |
| 63 | 20A | Trailer Tow Left Stop/Turn — If Equipped |
| 64 | 15A | RT HID Headlamp |
| 65 | - | Not Used |
| 66 | 15A | Instrument Panel Cluster (IPC)/ SGW |
| 67 | 10A | Haptic Lane Feedback Module (HALF) / Parktronics System (PTS)/ Drivers Assist System Module (DASM) |
| 68 | - | Not Used |
| 69 | - | Not Used |
| 70 | - | Not Used |
| 71 | 20A | Horn |
| 72 | 10A | Heated Mirrors – If Equipped |
| 73 | 30A | Rear Defroster (EBL) |
| 74 | 20A | Trailer Tow Backup |
| 75 | 5A | Overhead Console / RR ISC |
| 76 | 20A | Uconnect/DCSD/Telematics |
| 77A | 10A | RR Entertainment Screen 1 & 2/ Media HUB 1 & 2/3rd Row USB Charge Only/2nd Row USB Charge Only/Vaccum Cleaner SW/3rd Row Recline ST SW/LT & RT Stow N Go SW/LT & RT Sliding Door SW Backlight |
| 77B | 10A | Rain Sensor/Sunroof /CRVMM |
| 78A | 15A | Transmission Control Module (TCM)/ E-Shifter |
| 78B | 15A | Instrument Cluster |
| 79 | 10A | ICS/Front And Rear HVAC/ SCCM/ EPB |
| 80 | - | Not Used |
| 81 | - | Not Used |
| 82 | - | Not Used |
| 83 |
20A 30A |
TT Park Lights — If Equipped Headlamp Washer Pump — If Equipped |
| 84 | 30A | Drive Train Control MOD — If Equipped |
| 85 | 20A | Cigar Lighter |
| 86 | - | Not Used |
| 87 | - | Not Used |
| 88 | 20A | Front Heated Seats |
| 89 | 20A | Rear Heated Seats |
| 90 | - | Not Used |
| 91 | 15A | Front Ventilated Seats/Heated Steering Wheel |
| 92 | 5A | Security Gateway |
| 93 | - | Not Used |
| 94 | 40A | ESC Motor Pump |
| 95A | 10A | USB Charge Port — ACC RUN |
| 95B | 10A | Selectable Fuse Location – USB IP (Direct) B+ |
| 96 | 10A | Occupant Restraint Controller (ORC) (Airbag) |
| 97 | 10A | Occupant Restraint Controller (ORC) (Airbag) |
| 98 | 15A | Left HID Headlamp |
| 99 | 30A | Trailer Tow Module - If Equipped |
| 100A | 10A | AHLM |
| 100B | 10A | Rear Camera/LBSS/RBSS/CVPM/Humidity Sensor/In Vehicle Temperature Sensor |
| CB1 | 25A | Power Seats (Driver) |
| CB2 | 25A | Power Seats (Pass) |
| CB3 | 25A | FRT PWR Window W/O Door Nodes + RR PWR Window Lockout |
