Cadillac Escalade 2023 Fuse Box Info

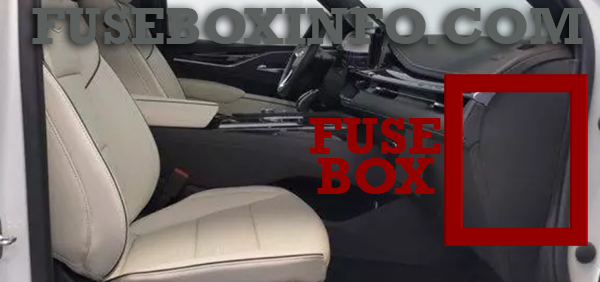

Passenger compartment fuse box location:
The fuse box is located on the passenger side edge of the instrument panel.

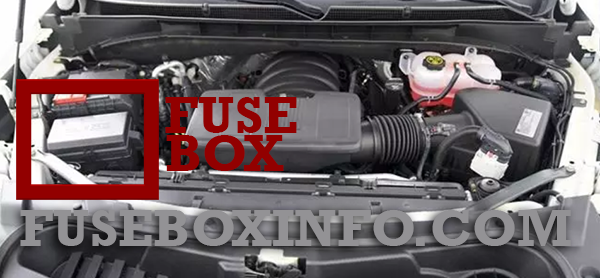

Engine compartment fuse box location:

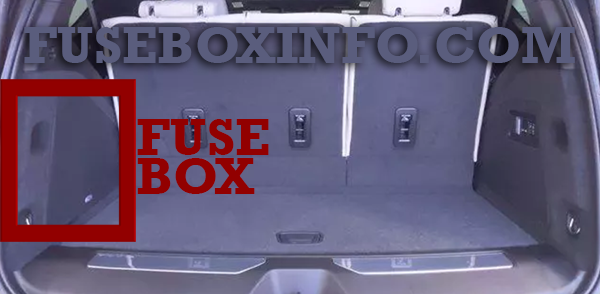

Luggage compartment fuse box location:
The rear compartment fuse box is behind the access panel on the left side of the compartment.
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | Right door |
| 2 | Left door |
| 3 | Universal Garage Door Opener (UGDO)/OnStar Hands-free Calling (OHC)/Camera |
| 4 | BCM 2 – Body Control Module 2 |
| 5 | Displays |
| 6 | Front blower |
| 8 | Left door panel |
| 10 | Tilt/column lock |
| 11 | DLC/ICM – Data Link Connector/Column Lock/Integrated Center Stack |
| 12 | Central Gateway Module (CGM)/Onstar |
| 14 | Right door panel |
| 17 | Steering wheel control |
| 18 | - |
| 19 | - |
| 20 | - |
| 21 | - |
| 22 | Heated wheel |
| 23 | - |
| 24 | - |
| 25 | Special Equipment Option (SEO)/ UPFITTER |
| 26 | USB/Special Equipment Option(SEO) Retained Accessory Power (RAP) |
| 27 | Auxiliary Power Outlet (APO)/Retained Accessory Power |
| 28 | - |
| 30 | SDM/AOS/DMS/NVM – Sensing and Diagnostic Module/Automatic Occupant Sensing/ Driver Monitor System/ Night Vision Module |
| 31 | BCM 3 – Body Control Module 3 |
| 32 | Center Stack Module (CSM)/USB |
| 33 | BCM 4 – Body Control Module 4 |
| 34 | Out of park |
| 40 | - |
| 41 | - |
| 42 | Electric park brake switch |
| 43 | RSE/MFC – Rear Seat Infotainment/Multi-Functional Control |
| 44 | - |
| 45 | Radio module |
| 46 | - |
| 47 | - |
| 48 | TCM – Telematics Control Module |
| 49 | BCM 1 – Body Control Module 1 |
| 50 | - |
| 51 | - |
| 52 | - |
| 53 | - |
| 54 | Sunroof |
| 55 | APO 3 – Auxiliary Power Outlet 3 |
| 56 | DC/DC CNV BATT 1 – Direct Current/Direct Current Converter Battery 1 |
| 57 | DC/DC CNV BATT 2 – Direct Current/Direct Current Converter Battery 2 |
| 58 | Spare |
| 59 | - |
| K1 | - |
| K2 | RAP/ACCY 1 – Retain Accessory Power/ Accessory 1 |
| K4 | RAP/ACCY 2 – Retain Accessory Power/ Accessory 2 |
| K5 | - |
| CBO1 | APO 1 – Auxiliary Power Outlet 1 |
| CBO2 | APO 2 – Auxiliary Power Outlet 2 |
Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | - |
| 2 | - |
| 3 | - |
| 4 | - |
| 5 | - |
| 6 | ELM 7 – Exterior Lighting Module 7 |
| 7 | ELM 4 – Exterior Lighting Module 4 |
| 8 | - |
| 9 | ELM 5 – Exterior Lighting Module 5 |
| 10 | ELM 6 – Exterior Lighting Module 6 |
| 11 | LRR/FRT SRR – Long Range Radar/ Front Short Range Radar |
| 12 | - |
| 13 | Washer front |
| 14 | Washer rear |
| 15 | REC 2 – Rear Electrical Center 2 |
| 16 | Power sounder |
| 17 | EBCM – Electronic Brake Control Module Battery 1 |
| 18 | DC/AC inverter |
| 19 | DC/AC inverter |
| 20 | IECR 2 – Instrument Electrical Center Right 2 |
| 21 | - |
| 22 | IECL 1 – Instrument Electrical Center Left 1 |
| 23 | Fuel Heater |
| 24 | Fuel Heater |
| 25 | REC 1 – Rear Electrical Center 1 |
| 26 | Camera wash |
| 27 | Horn |
| 28 | Headlamp RT – Right |
| 29 | Headlamp LT – Left |
| 30 | ELM 3 – Exterior Lighting Module 3 |
| 31 | ELM 1 – Exterior Lighting Module 1 |
| 32 | - |
| 33 | Not R/C |
| 34 | - |
| 35 | Trailer Park Lamp |
| 36 | Run/Crank |
| 37 | MISC Body Ignition 1 |
| 38 | MISC Body Ignition 2 |
| 39 | Upfitter |
| 40 | MISC Instrument Panel (IP) |
| 41 | Trailer parking lamps |
| 42 | Right tail lamp |
| 43 | Secondary axle motor |
| 44 | Trailer tow |
| 45 | Secondary axle motor |
| 46 | Engine Control Module (ECM) Ignition |
| 47 | OBD engine |
| 48 | - |
| 49 | Transmission Auxiliary Oil Pump |
| 50 | A/C clutch |
| 51 | TCCM – Transfer Case Control Module |
| 52 | Front wiper |
| 53 | - |
| 54 | Left tail lamp |
| 55 | Trailer back up lamp |
| 56 | SADS – Semi Active Damping System |
| 57 | Spare |
| 58 | Starter motor |
| 59 | A/C clutch |
| 60 | Powertrain Sensor 2 |
| 61 | Automatic Lamp Control (ALC) Main |
| 62 | ICCM/CVS/DEF – Integrated Chassis Control Module/ Canister Vent Solenoid/Diesel Exhaust Fluid |
| 63 | Trailer brake |
| 64 | Starter motor |
| 65 | - |
| 66 | Left Cool Fan Motor |
| 67 | AFM 2 – Active Fuel Management 2 |
| 68 | Automatic Lamp Control (ALC) Motor |
| 69 | Starter pinion |
| 70 | Starter pinion |
| 71 | Cool fan motor lower |
| 72 | Right Cool Fan Motor/Lower |
| 73 | Left Trailer Stop Turn Lamp |
| 74 | TIM 2 – Trailer Interface Module 2 |
| 75 | DEFC – Diesel Exhaust Fluid Controller |
| 76 | Electric Power Running Boards |
| 77 | Powertrain |
| 78 | ECM – Engine Control Module |
| 79 | Cabin Cool Pump 17W |
| 80 | Powertrain Sensor 1 |
| 81 | Right Trailer Stop Turn Lamp |
| 82 | TIM 1 – Trailer Interface Module 1 |
| 83 | FTZM – Fuel Tank Zone Module |
| 84 | Trailer battery |
| 85 | Auxiliary Water Pump |
| 86 | ECM – Engine Control Module |
| 87 | Injector B even |
| 88 | 02 B sensor |
| 89 | 02 A sensor |
| 90 | Injector A odd |
| 91 | Engine Control Module (ECM) Throttle Control |
| 92 | Cool Fan Clutch AERO Shutter |
Luggage compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | RFA – Remote Function Actuator |
| 2 | WCM – Wireless Charging Module |
| 3 | Heated Seat Module Row 1 (Battery 1) |
| 4 | Memory Seat Module (MSM) Driver |
| 5 | - |
| 6 | - |
| 7 | Amp Aux 2 – Amplifier Auxiliary 2 |
| 8 | - |
| 9 | SEO UPFTR 2 – Special Equipment Upfitter 2 |
| 10 | Motor Seatbelt Passenger |
| 11 | Power Folding Seat Row 2 |
| 12 | GBS – Glass Breakage Sensor |
| 13 | - |
| 14 | - |
| 15 | Heated Seat Module Row 1 (Battery 2) |
| 16 | RH CINCH Latch – Right Hand Cinch Latch |
| 17 | Memory Seat Module Passenger |
| 18 | Rear wiper |
| 19 | Motor seatbelt driver |
| 20 | Rear defogger |
| 21 | - |
| 22 | Rear HVAC display control |
| 23 | EOCM – External Object Calculation Module |
| 24 | Amp Aux 3 – Amplifier Auxiliary 3 |
| 25 | OBS DET – Obstacle Detection |
| 26 | RDCM – Rear Drive Control Module |
| 27 | Amp Aux 1 – Amplifier Auxiliary 1 |
| 28 | VPM – Video Processing Module |
| 29 | - |
| 30 | - |
| 31 | Amp – Amplifier |
| 32 | - |
| 33 | ICCM – Integrated Chassis Control Module |
| 34 | Heated Seat Module Row 2 |
| 35 | HFCR – Hands Free Closure Release |
| 36 | ELM – Exterior Lighting Module |
| 37 | - |
| 38 | Power Slide Console |
| 39 | - |
| 40 | - |
| 41 | - |
| 42 | - |
| 43 | UPA – Universal Park Assist |
| 44 | - |
| 45 | AFL AHL – Adaptive Forward Lighting/ Automatic Headlamp Leveling |
| 46 | Rear HVAC Blower Motor |
| 47 | LH CINCH Latch – Left Hand Cinch Latch |
| 48 | Power Seat Recline Module |
| 49 | Lift Glass |
| 50 | Driver Power Seat |
| 51 | Power Liftgate Module |
| 52 | Passenger Power Seat |
| K53 | - |
| K54 | - |
| K55 | L/GLASS |
