Micro Microlino 2024 Fuse Box Info
Passenger compartment fuse box location:
The fuse box is located in the front door.
Luggage compartment fuse box location:
The fuse box is located on the left side of the trunk.
Fuse Box Diagram | Layout

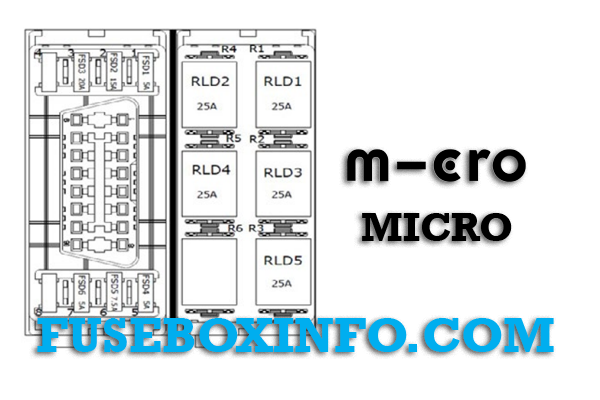

Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| FSD 1 | 5A | Debug Port |
| FSD 2 | 15A | Wiper |
| FSD 3 | 20A | Blower |
| FSD 4 | 5A | Fuse Relay Coil |
| FSD 5 | 7.5A | USB |
| FSD 6 | 5A | TouchScreen Logic |
| RLD 1 | 25A | Wiper ON/OFF |
| RLD 2 | 25A | Wiper Slow/Fast |
| RLD 3 | 25A | Blower Slow |
| RLD 4 | 25A | Blower Medium |
| RLD 5 | 25A | Blower Fast |
Luggage compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| FSH 1 | 7.5A | Horn |
| FSH 2 | 30A | VCU |
| FSH 3 | 4A | Stop Lamp |
| FSH 4 | 5A | IPC Logic |
| FSH 5 | 3A | Gear shift |
| FSH 6 | 15A | Defrost |
| FSH 7 | 4A | Position Right |
| FSH 8 | 4A | Position Left |
| FSH 9 | 4A | DRL |
| FSH 10 | 10A | Trunk Latch Actator |
| FSH 11 | 5A | Turn Left |
| FSH 12 | 5A | Turn Right |
| FSH 13 | 7.5A | VCU Logic |
| FSH 14 | 5A | LowBeam |
| FSH 15 | 7.5A | HighBeam |
| FSH 16 | 5A | Fuse Relay Coil & HV Battery Key |
| FSH 17 | 10A | Control Door Lock ECU & HV Battery Sup & Charger |
| FSH 18 | 10A | SoftCloseLatch_ChargerLock_Motor |
| FSH 19 | 7.5A | Washer Pump |
| FSH 20 | 15A | Seat Heater |
| FSB 1 | 50A | LV BATTERY |
| FSB 2 | 60A | FUSE FUSEBOX BODY |
| FSB 3 | 35A | FUSE FUSEBOX DOOR |
| RLU 1 | 70A | KEY KL_15 |
| RLU 2 | 20A | Charging Pluge Lock |
| RLU 3 | 20A | Charging Pluge UnLock |
| RLU 4 | 20A | LowBeam |
| RLU 5 | 20A | HighBeam |
| RLU 6 | 20A | Horn |
| RLU 7 | 20A | Washer Pump |
| RLU 8 | 20A | SeatHeat |
| RLU 9 | 20A | Defrost |
