Link & Co 01 Plug-in Hybrid 2023 Fuse Box Info
Passenger compartment fuse box location:

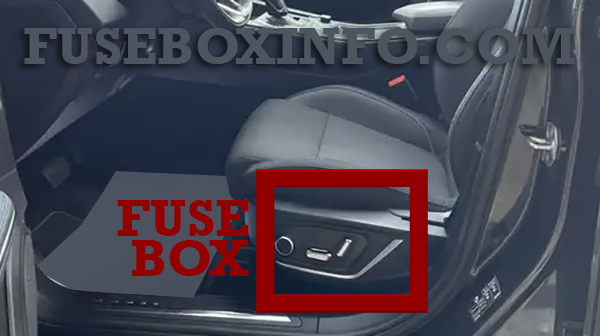

The fuse box in the passenger compartment is located under the driver seat.

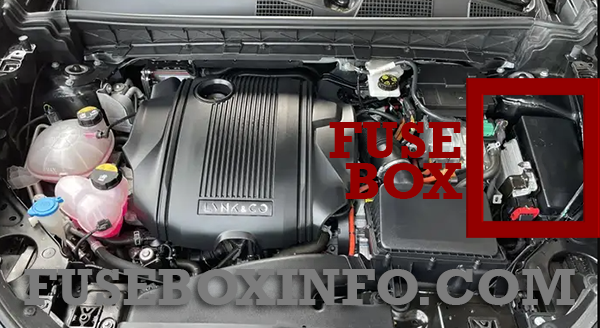

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 9 | 20A | Door module in right-side rear door |
| 10 | 20A | Door module in left-side rear door |
| 11 | 20A | Door module in left-side front door |
| 12 | 5A | Journey camera |
| 13 | 20A | Door module in right-side front door |
| 15 | 5A | The fuel tank's insulation valve |
| 16 | 5A | Active safety domain master |
| 17 | 5A | Bluetooth low energy and NFC key communication module |
| 18 | 7.5A | Steering column lock |
| 19 | 7.5A | Climate control module |
| 20 | 5A | Interior motion sensor |
| 21 | 5A | Driver information module |
| 22 | 5A | Center console switch module |
| 23 | 5A | Steering wheel module |
| 24 | 5A | Start switch, Electronic gear selector module, Hazard switch |
| 25 | 5A | Center display |
| 26 | 5A | Telematics module |
| 27 | 5A | Multi-band module |
| 28 | 5A | Relay coil supply |
| 30 | 10A | Infotainment head unit |
| 31 | 10A | Diagnostic socket OBD II |
| 51 | 20A | ECFM/HFF relay coil, Pump electronic module |
| 52 | 7.5A | AUX water pump |
| 63 | 5A | Forward looking camera, Forward radar module, CV camera heater |
| 64 | 5A | Side obstacle detection |
| 65 | 5A | Journey camera |
| 66 | 5A | Gear shift bezel indication module, exterior sound module |
| 71 | 5A | Supplementary restraint system |
| 80 | 15A | Rear wiper motor |
| 81 | 20A | Sunroof control module |
| 82 | 5A | Climate sun sensor |
| 83 | 7.5A | IP switch panel, Glovebox lid switch, Overhead console (interior lights), Interior rear view mirror module, Rain and light sensor module, Interior lighting |
| 84 | 10A | USB hub, Wireless phone charger |
| 86 | 5A | Logo projectors (side mirrors) |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 2 | 15A | Power outlets |
| 3 | 10A | Rear USB |
| 4 | 15A | Power outlet luggage area |
| 5 | 20A | Engine Control Module |
| 6 | 15A | Spark plugs/ignition coils |
| 8 | 10A | Oil level sensor, EVAP purge valve, Solenoid variable valve time VVT inlet B, Solenoid variable valve time VVT exhaust B, Engine oil pump solenoid, AC compressor solenoid, Leakage detection pump, Vacuum regulator turbo waste gate control, Active grillshutter module |
| 9 | 15A | Oxygen sensors |
| 12 | 20A | Right-side headlight |
| 13 | 20A | Left-side headlight |
| 14 | 5A | Supplementary restraint system, Occupancy weight sensor passenger seat |
| 15 | 5A | Accelerator pedal sensor |
| 16 | 10A | Transmission actuator control module, Electronic gear selector module, Engine control module, Vehicle dynamics domain master, Steering assist, Gearbox control unit, Brake booster module, Starter capacitor |
| 20 | 5A | Relay coil supply |
| 21 | 5A | Lid magnet relay |
| 22 | 5A | Brake pedal sensor |
| 24 | 25A | Hydraulic clutch actuator for the gearbox |
| 25 | 25A | Hydraulic clutch actuator for the gearbox |
| 26 | 5A | Engine control module |
| 27 | 5A | On-Board charger |
| 28 | 5A | High-voltage battery, Inverter generator |
| 29 | 20A | Horns |
| 30 | 5A | Alarm siren |
| 47 | 5A | Air conditioning, Chiller shut off valve, Cooling shut off valve, High-voltage coolant heater |
| 48 | 5A | High-voltage battery, Inverter generator |
| 49 | 15A | Cut-off valve for hybrid battery coolant, coolant pump 1 for hybrid battery |
| 50 | 15A | Coolant pump for electric drive system |
| 55 | 20A | Left-side headlight |
| 56 | 20A | Right-side headlight |
| SF01 | 5A | Spare fuse |
| SF02 | 7.5A | Spare fuse |
| SF03 | 10A | Spare fuse |
| SF04 | 15A | Spare fuse |
| SF05 | 20A | Spare fuse |
