Tata Punch 2021 Fuse Box Info

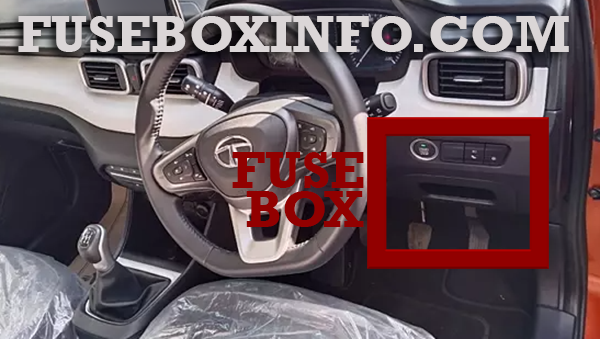

Passenger compartment fuse box location:
The fuse box is located inside the cover below steering column.

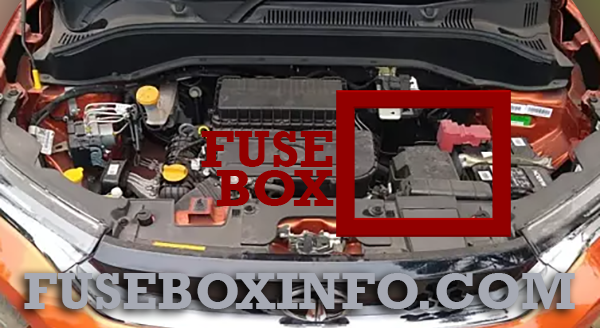

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 10A | TAILGATE RELEASE |
| 2 | 5A | RPAS /TELEMATICS IGN |
| 3 | 15A | ACC BATT/OBD |
| 4 | 5A | ACCESSORIES FUSE |
| 4 | 5A | PEPS/BLOWER RLY |
| 5 | 25A | HEATED REAR SCREEN BCM |
| 6 | 10A | HVAC/ FATC |
| 7 | 20A | BCM2- BASE/MID BCM |
| 8 | 20A | BCM3-MID BCM |
| 9 | 20A | BCM1-BASE/MID BCM |
| 10 | 10A | IGN FUSE-2 |
| 11 | 5A | IMMOB/EPAS/PEPS IGN |
| 12 | 10A | RESTRAINTS CONTROL |
| 13 | 15A | POWER SOCKET1 |
| 14 | 5A | MIRROR ADJUST MOTOR |
| 15 | 15A | POWER SOCKET-2 |
| 16 |
5A 10A |
RELAY COIL PEPS/ESCL ECU BATT |
| 17 | 5A | IMMOBILISER |
| 18 | 15A | CDL |
| 19 | 5A | KEYIN / TELE BATT |
| 20 | 5A | CLUSTER |
| 21 | 30A | BLOWER MOTOR |
| 22 | 20A | TRANSIST/INFOTAINMENT |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 0 | - | - |
| 1 | 60A | COCKPIT F/B SUPPLY |
| 2 | 40A | RADIATOR FAN-1 |
| 3 | 25A | STARTER SOLENOID BATT |
| 4 | 15A | HEAD LAMP HIGH BEAM |
| 5 | 15A | FUEL PUMP BATT |
| 6 | 15A | HEAD LAMP LOW BEAM |
| 7 | 10A | TCU BATTERY 2 |
| 8 | - | - |
| 9 | 30A | TCU |
| 10 | 60A | EPAS |
| 11 | - | - |
| 12 | 60A | UNDER BONNET F/R BOX |
| 13 | 10A | EMS BATT |
| 14 | 10A | COMPRESSOR |
| 15 | 25A | ABS ECU BATT |
| 16 | 15A | HORN BATT |
| 17 | 10A | BRAKE LAMP BATT |
| 18 | 40A | ABS PUMP |
| 19 | 60A | INTERIOR F/B BATT |
| 20 | 60A | IGNITION LOAD |
| 21 | 15A | IGNITION COIL |
| 22 | - | - |
| 23 | - | - |
| 24 | 5A | ABS ECU IGNITION |
| 25 | 10A | AMT IGN |
| 26 | - | - |
| 27 | 15A | EMS RELAY COILS & SENSORS |
| 28 | 20A | EMS ECU SUPPLY |
| 29 | 10A | EMS INJECTOR |
| 30 | 20A | FRONT WIPER MOTOR |
| 31 | 10A | REAR WIPER |
| 32 | 5A | STARTER MO-TOR F/B |
| 33 | - | - |
| 34 | - | - |
| 35 | 10A | REVERSE LAMPS/BRAKE SWITCH |
| 36 | - | - |
| 37 | - | - |
| 38 | - | - |
Battery mounted fuse box:
| Fuse/Relay N° | Rating | Functions |
| PF1 | 200A | STARTER MOTOR |
| PF2 | 5A | IBS |
