Triumph Trophy 2014 Fuse Box Info

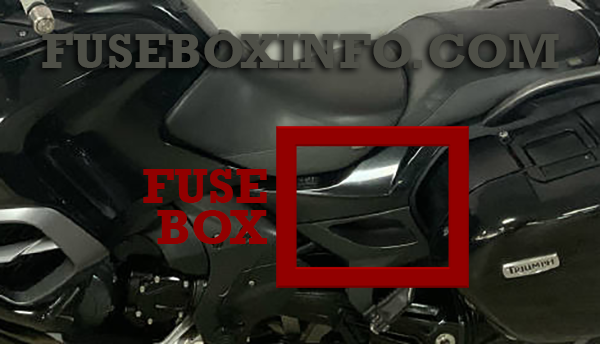

Fuse box location:
The three fuse boxes are located beneath the left hand side panel.
Fuse Box Diagram | Layout
Triumph Trophy (Left Fuse Box):
| Fuse/Relay N° | Rating | Functions |
| 1 | 10A | Heated grips |
| 2 | 10A | Auxiliary socket |
| 3 | - | Empty |
| 4 | 20A | Auxiliary sockets |
| 5 | 10A | Auxiliary sockets |
| 6 | 15A | Windscreen |
Triumph Trophy (Right Fuse Box):
| Fuse/Relay N° | Rating | Functions |
| 1 | 20A | Headlight |
| 2 | 15A | Engine management |
| 3 | 20A | Cooling fan |
| 4 | 10A | Fuel pump |
| 5 | 15A | Ignition, instruments |
| 6 | 10A | Tail light, brake light, horn |
Triumph Trophy SE (Left Fuse Box):
| Fuse/Relay N° | Rating | Functions |
| 1 | 10A | Heated grips |
| 2 | 10A | Auxiliary socket |
| 3 | 10A | Audio system |
| 4 | 20A | Auxiliary sockets |
| 5 | 15A | Triumph Electronic Suspension (TES) |
| 6 | 15A | Windscreen |
Triumph Trophy SE (Right Fuse Box):
| Fuse/Relay N° | Rating | Functions |
| 1 | 20A | Headlight |
| 2 | 15A | Engine management |
| 3 | 20A | Cooling fan |
| 4 | 10A | Fuel pump |
| 5 | 15A | Ignition, instruments |
| 6 | 10A | Tail light, brake light, horn |
ABS Fuse Box (ABS Fuse Box is located in a separate fuse box next to the left fuse box):
| Fuse/Relay N° | Rating | Functions |
| 1 | 20A | ABS |
| 2 | 20A | ABS |
| SPARE | 20A | Spare |
The 40A main fuse is located above the battery. To allow access to the main fuse, remove the fixing securing the right hand cockpit infill panel and remove the panel from the two front studs/grommets by pulling upwards and rearwards.
