Baroness Rotary Mower GM2800B Fuse Box Info

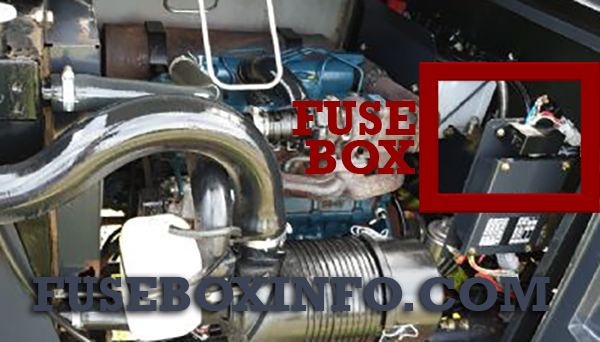

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Engine compartment fuse box:
| Fuse/Relay | Rating | Functions |
| A | 5A | Timer |
| B | 5A | Thermo-start lamp |
| C | 5A | Tachometer, fuel gauge, water temperature gauge, charge lamp, oil pressure (engine oil pressure) lamp, water temperature buzzer, hydraulic oil buzzer |
| D | 15A | Relay box 1, differential lock, (assist switch) |
| E | 15A | Relay box 2, 2WD/4WD selection, #4/#5 proximity switches |
| F | - | - |
| G | 5A | Timer |
| H | 5A | Alternator |
| I | 5A | Fuel pump, safety relay, stop solenoid |
| J | 5A | Relay (starter) |
| K | 5A | Spare |
| L | 5A | Spare |
| M | 15A | Spare |
| N | 15A | Spare |
The relay box is is located under fuse box. These relays control operation of the diff-lock valve, rotation of the rotary knives, 2WD/4WD selection and traction assist selection.
