JCB 525-60 Hi-VIZ Telehandler Fuse Box Info

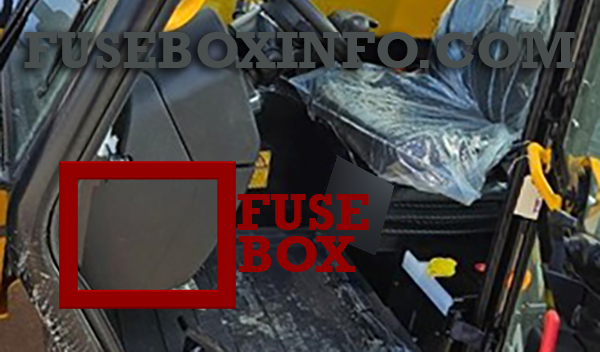

Cabin compartment fuse box location:
The cabin fuse and relay boxes are located on the end of the instrument panel.
The primary fuse box is located above battery. Additional secondary fuses are installed to the right of the engine in the engine compartment. The additional fuse links are installed at the battery positive terminal.
Fuse Box Diagram | Layout
Cabin compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1A | 5A | Auxiliary |
| 2A | 15A | Auxiliary/hitch hydraulics |
| 3A | 25A | Air conditioning |
| 4A | 3A | Immobiliser |
| 5A | 30A | Heater |
| 6A | 3A | Directional indicators |
| 7A | 20A | Air conditioning |
| 8A | 3A | Ignition |
| 9A | - | Spare |
| 10A | 10A | Reverse alarm/lights |
| 11B | 20A | Rear and roof wash/wipe |
| 12B | 15A | Front wash/wipe |
| 13B | 10A | Brake lights |
| 14B | 15A | Dipped headlights |
| 15B | 20A | Main beam lights |
| 16B | 7.5A | Side lights |
| 17B | 5A | Side lights |
| 18B | 15A | 12V Power socket |
| 19B | 5A | Ignition |
| 20B | 5A | Crank signal |
| 21C | 5A | Engine fuse |
| 22C | 3A | Warning cluster |
| 23C | 3A | Park brake |
| 24C | 3A | Engine fuse |
| 25C | 3A | Seat switch |
| 26C | 10A | Road lights |
| 27C | 25A | Horn and headlight flash |
| 28C | 7.5A | Beacon |
| 29C | 10A | Interior light and radio |
| 30C | 3A | Hazards |
| 31D | 30A | Starter solenoid |
| 32D | 3A | Fog lights |
| 33D | 25A | Boom work lights |
| 34D | 20A | Road lights |
| 35D | 25A | Front work lights |
| 36D | 15A | Rear work lights |
| 37D | 15A | Bonnet fan |
| 38D | 20A | Heated seat/air suspension seat |
| 39D | 10A | Radio |
| 40D | 5A | Livelink |
| 41E | 20A | Hydraulics ECU (Electronic Control Unit) |
| 42E | 15A | Transmission |
| 43E | 5A | LiveLink |
| 44E | 10A | Trailer electrics |
| 45E | 15A | Instrument panel |
| 46E | 3A | Transmission |
| 47E | 5A | Live Link |
| 48E | 3A | LLMI (Longitudinal Load Moment Indicator) |
| 49E | 3A | Clocks |
| 50E | 5A | Hydraulic ECU |
Cabin compartment relay box:
| Fuse/Relay N° | Rating | Functions |
| A1 | - | Ignition |
| A2 | - | Ignition |
| A3 | - | Ignition |
| B1 | - | Ignition |
| B2 | - | Ignition |
| B3 | - | Ignition |
| C1 | - | Trailer directional |
| C2 | - | Trailer directional |
| C3 | - | Road light |
| D1 | - | Trailer directional |
| D2 | - | Starter motor solenoid |
| D3 | - | Cooling fan |
| E1 | - | Boom work lights |
| E2 | - | Roof air conditioning |
| E3 | - | Transmission |
| F1 | - | Brake lights |
| F2 | - | Air conditioning pump |
| F3 | - | Starter motor solenoid |
| G1 | - | Work lights |
| G2 | - | Reverse alarm/lights |
| G3 | - | Air conditioning |
| H1 | - | Work lights |
| H2 | - | LiveLink |
| H3 | - | Hitch lights |
