Mazda3 2024 Fuse Box

Mazda3 2024 Fuse Box Info



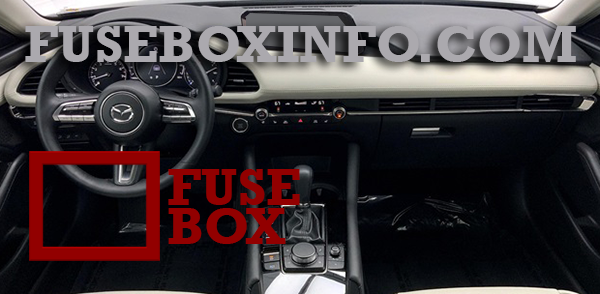

Passenger compartment fuse box location:

The fuse box is located in the left kick panel.



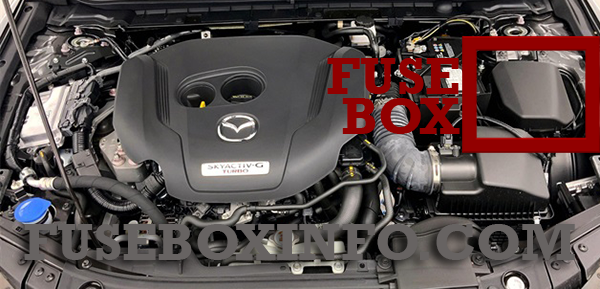

Engine compartment fuse box location:





Fuse Box Diagram | Layout



Passenger compartment fuse box:

Fuse/Relay N° Rating Functions
1 - -
2 - -
3 - -
4 15A Power door locks (Driver)
5 15A Power door locks (Passenger)
6 - -
7 - -
8 - -
9 30A Power windows (Driver)
10 30A Power windows (Passenger)
11 30A Power seat (Driver)*
12 - -
13 15A Audio
14 - -
15 15A Liftgate lock
16 15A Illumination
17 10A Brake lights
18 10A Reverse lights
19 10A Rear turn signal lights
20 10A Taillights
21 10A Taillights
22 7.5A Air bag*
23 - -

*Some models


Engine compartment fuse box:

Fuse/Relay N° Rating Functions
1 - -
2 20A Windshield wiper de-icer*
3 30A Engine control system
4 20A S-VT
5 40A Engine control system
6 - -
7 20A Fuel pump
8 15A Engine control system
9 15A Transmission control system*
10 15A Engine control system
11 7.5A Air conditioner
12 15A Engine control system
13 15A -
14 20A Front seat warmer*
15 20A -
16 15A For protection of various circuits
17 - -
18 - -
19 60A Power steering system
20 15A Headlight (LH) 1
21 15A Headlight (RH) 1
22 15A Keyless system
23 30A ABS, Dynamic stability control system
24 15A Headlight (LH) 2
25 15A Headlight (RH) 2
26 7.5A On board diagnostics
27 25A For protection of various circuits
28 25A For protection of various circuits
29 15A Windscreen washer
30 15A Accessory sockets
31 15A Horn
32 - -
33 - -
34 10A i-ACTIVSENSE
35 50A ABS, Dynamic stability control system
36 - -
37 40A Rear window defogger
38 50A For protection of various circuits
39 - -
40 40A Air conditioner
41 - -
42 20A Windshield wipers
43 30A Cooling fan*
44 30A Starter
45 10A Engine control system
46 15A Audio
47 15A For protection of various circuits
48 7.5A Air bag
49 15A Instrument cluster
50 15A Room light
51 25A Audio
52 10A Moonroof*
53 15A Engine control system
54 15A i-ACTIVSENSE
55 50A -
56 15A Electric water pump*

*Some models
