Mazda Millenia 2002 Fuse Box Info
Passenger compartment fuse box location:

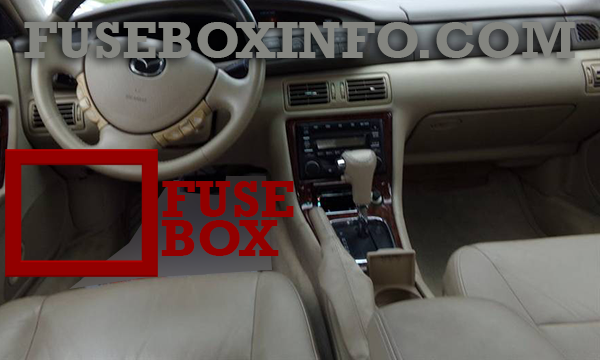

The fuse box is located below the instrument panel in front of the driver’s door.
Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° and Name | Rating | Functions |
| 1. HAZARD | 15A | Hazard warning light |
| 2. ROOM | 15A | Clock, Interior light |
| 3. S/ROOF | 15A | Sunroof |
| 4. METER | 15A | Gauges, Reverse lights, Turn signals, Cruise control |
| 5. STOP | 20A | Brake lights |
| 6. - | - | - |
| 7. IIA | 15A | IIA |
| 8. R.DEF | 15A | Rear window defroster |
| 9. A/C | 10A | Air conditioner |
| 10. WIPER | 20A | Windshield wipers and washer |
| 11. M.DEF | 10A | Mirror defroster |
| 12. START | 15A | Starter |
| 13. TURN | 10A | Turn signal lights |
| 14. BLOWER | 10A | Air conditioner |
| 15. - | - | - |
| 16. - | - | - |
| 17. - | - | - |
| 18. RADIO | 10A | Audio system |
| 19. ENGINE | 15A | Engine control system |
| 20. ILLUMI | 10A | Dashboard illumination |
| 21. OPENER | 15A | Trunk lid opener, Fuel-lid opener |
| 22. - | - | - |
| 23. CIGAR | 15A | Cigar lighter |
| 24. - | - | - |
| 25. - | - | - |
| 26. SPARE | 30A | - |
| 27. - | - | - |
| 28. - | - | - |
| 29. D/LOCK | 30A | Power door lock |
Engine compartment fuse box:
| Fuse/Relay N° and Name | Rating | Functions |
| 1. MAIN | 120A | For protection of all circuits |
| 2. AD.FAN | 30A | Additional cooling fan for air conditioner |
| 3. EGI INJ | 30A | Fuel injection system |
| 4. HEAD | 40A | Headlights |
| 5. IG KEY | 60A | RADIO, TURN, METER, ENGINE, S/ROOF and P/WIND fuses, Ignition system |
| 6. COOLING FAN |
30A | Cooling fan |
| 7. ABS | 60A | Antilock brake system |
| 8. HEATER | 40A | Heater, Air conditioner |
| 9. DEFOG | 40A | Rear window defroster |
| 10. BTN | 60A | STOP, ROOM and D/LOCK fuses, Fuel lid opener, Power door lock |
| 11. AUDIO | 20A | Audio system |
| 12. P/WINDOW | 30A | Power windows |
| 13. P.SEAT | 30A | Power seat |
| 14. HORN | 10A | Horn |
| 15. IDL UP | 10A | Engine control system |
| 16. ST.SIGN | 10A | Engine control unit |
| 17. FOG | 15A | Fog lights |
| 18. S.WARM | 20A | Seat warmer |
| 19. TAIL | 15A | Taillights, Parking lights, License plate lights, Dashboard illumination, Glove box light, Clock |
| 20. - | - | - |
| 21. - | - | - |
| 22. - | - | - |
