Mazda MPV 2006 Fuse Box Info

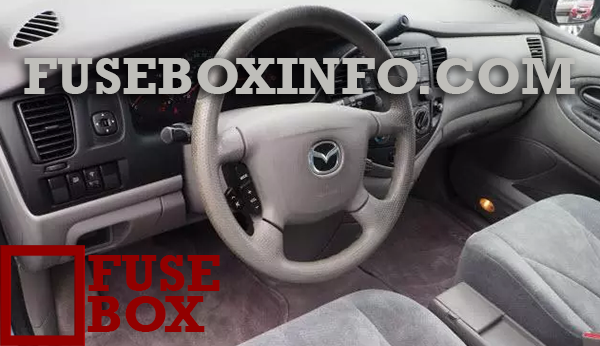

Passenger compartment fuse box location:
The fuse box is on the vehicle's left side.

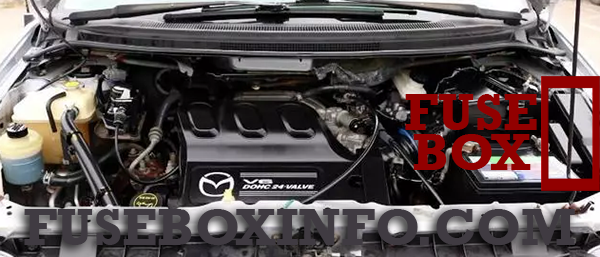

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° and Name | Rating | Functions |
| 1. P.WIND | 30A | Power windows*, For protection of various circuits |
| 2. WIPER | 20A | Windshield wipers and washer |
| 3. SUN ROOF | 15A | Moonroof*, For protection of various circuits |
| 4. R.WIP | 10A | Rear window wiper and washer |
| 5. SEAT | 20A | For protection of various circuits |
| 6. M.DEF | 10A | Mirror defroster*, For protection of various circuits |
| 7. A/C | 10A | Air conditioner, For protection of various circuits |
| 8. DRL | 10A | For protection of various circuits |
| 9. - | - | - |
| 10. H/CLEAN | 20A | For protection of various circuits |
| 11. - | - | - |
| 12. HAZARD | 10A | Hazard warning flashers |
| 13. ROOM | 15A | Overhead lights, Map lights, Luggage compartment light |
| 14. AUX POWER |
25A | Accessory socket |
| 15. CLOSER LH |
20A | For protection of various circuits |
| 16. AUDIO | 10A | Audio system, For protection of various circuits |
| 17. D.LOCK | 30A | Power door locks*, For protection of various circuits |
| 18. P/SEAT | 30A | Power seat* |
| 19. ENGINE | 10A | Engine control system |
| 20. METER | 10A | Instrument cluster |
| 21. STOP | 15A | Brake lights |
| 22. CLOSER RH |
20A | For protection of various circuits |
| 23. ACC. DELAY |
30A | Power windows delay, For protection of various circuits |
| 24. METER | 15A | Instrument cluster, INH switch |
| 25. ST.SIGN | 10A | Starter signal |
| 26. CIGAR | 25A | Lighter |
| 27. - | - | - |
| 28. - | - | - |
*Some models
Engine compartment fuse box:
| Fuse/Relay N° nad Name | Rating | Functions |
| 1. DEFOG | 40A | Rear window defroster |
| 2. BTN | 60A | STOP, HAZARD, ROOM, D.LOCK and DRL fuses |
| 3. ABS | 60A | Antilock brake system*, For protection of various circuits |
| 4. FAN1 | 30A | Cooling fan |
| 5. FAN2 | 30A | Cooling fan |
| 6. HEATER | 40A | Heater |
| 7. R.HEAT | 30A | Rear heater*, For protection of various circuits |
| 8. IG KEY2 | 40A | A/C, P.WIND*, MOONROOF*an d R.WIP fuses |
| 9. A/C | 10A | Air conditioner, For protection of various circuits |
| 10. TAIL | 15A | Taillights |
| 11. AC PWR | 15A | Inverter |
| 12. HORN | 15A | Horn |
| 13. FOG | 15A | For protection of various circuits |
| 14. EEC | 5A | For protection of various circuits |
| 15. HEAD L | 15A | Headlight-left |
| 16. HEAD R | 15A | Headlight-right |
| 17. HID L | 20A | - |
| 18. HID R | 20A | - |
| 19. IG KEY1 | 60A | METER, ENGINE and WIPER fuses |
| 20. EGI INJ | 30A | For protection of various circuits |
| 21. FUEL PUMP | 20A | Fuel pump |
| 22. MAIN | 120A | For protection of all circuits |
*Some models
