Mazda MX-5 2011 Fuse Box Info

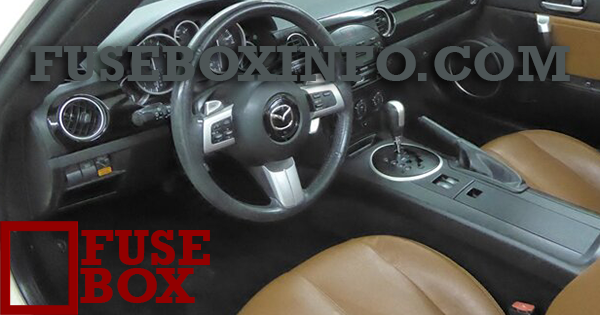

Passenger compartment fuse box location:
The interior fuse box is located in the left kick panel.

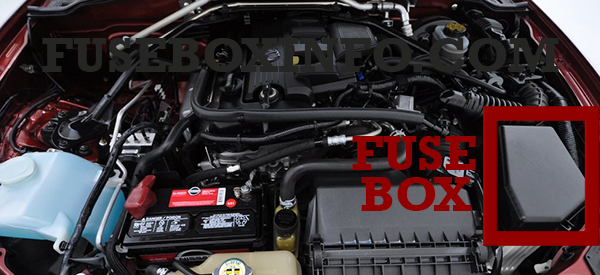

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N°and Name | Rating | Functions |
| 01 ACC | 7.5A | Audio system, Power control mirror |
| 02 AUX PWR | 15A | Accessory Socket |
| 03 METER | 15A | Instrument cluster |
| 04 SEAT WARM | 20A | Seat warmer * |
| 05 ILLUMI | 7.5A | Illumination |
| 06 A/C | 7.5A | Air conditioner * |
| 07 ENGINE | 7.5A | Engine control system, For protection of various circuits |
| 08 | - | - |
| 09 M.DEF | - | - |
| 10 AUDIO | 20A | Audio system * |
| 11 D.LOCK | 20A | Power door lock |
| 12 SILEN | 7.5A | - |
| 13 | - | - |
| 14 | - | - |
| 15 | - | - |
| 16 | - | - |
* Some models
Engine compartment fuse box:
| Fuse/Relay N° and Name | Rating | Functions |
| 01 FAN | 30A | Cooling fan |
| 02 FAN | 7.5A | Cooling fan |
| 03 DEFOG | 20A | Rear window defroster |
| 04 H/CLEAN | - | - |
| 05 ROOM | 15A | Overhead lights, Luggage compartment light, For protection of various circuits, Trunk opener |
| 06 IG KEY2 | 15A | For protection of various circuits |
| 07 HEATER | 40A | Air conditioner * |
| 08 ABS | 30A | ABS |
| 09 FOG | 15A | Front fog lights * |
| 10 R.FOG | 7.5A | - |
| 11 RHT L | 30A | Power retractable hardtop (LH) * |
| 12 RHT R | 30A | Power retractable hardtop (RH) * |
| 13 MAG | 7.5A | Air conditioner * |
| 14 ST | 20A | Starter |
| 15 TAIL | 15A | Taillights, Parking lights, License plate lights, Illumination |
| 16 ABS | 40A | ABS |
| 17 BTN | 30A | For protection of various circuits |
| 18 MAIN | 120A | For protection of all circuits |
| 19 EGI INJ | 10A | Injector |
| 20 EGI COMP1 | 10A | Engine control system |
| 21 EGI COMP2 | 10A | Engine control system |
| 22 HEAD LOW L | 15A | Headlight low beam (LH) |
| 23 HEAD LOW R | 15A | Headlight low beam (RH) |
| 24 HEAD | 15A | Headlight high beams |
| 25 P.WIND | 20A | Power windows |
| 26 ENGINE | 15A | Engine control system |
| 27 WIPER | 20A | Windshield wipers and washer |
| 28 DRL | 15A | DRL * |
| 29 HORN | 15A | Horn |
| 30 STOP | 10A | Brake lights |
| 31 ETV | 10A | Electric throttle valve |
| 32 FUEL PUMP | 15A | Fuel Pump |
| 33 HAZARD | 10A | Turn signals, Hazard warning flashers |
| 34 P.WIND2 | 20A | Power windows * |
| 35 IG KEY1 | 40A | For protection of various circuits |
* Some models
